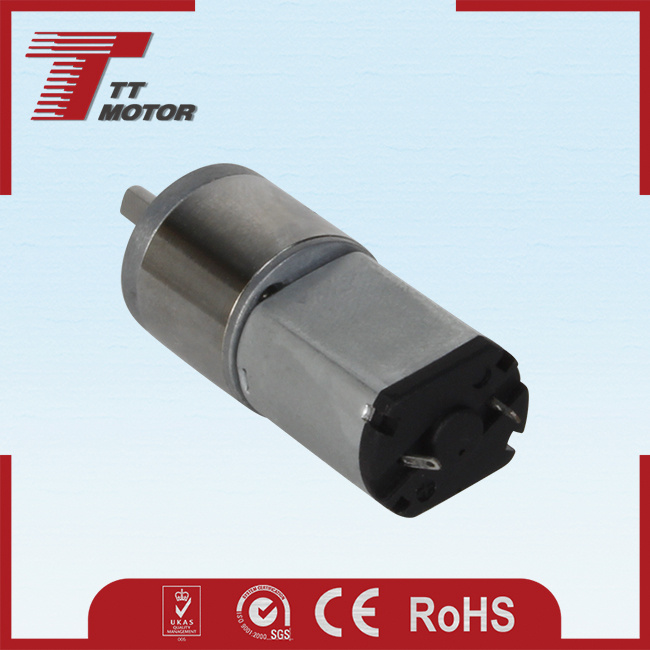

Electrical micro Aerospace instruments 5V/6V/12V DC Planetary Gear Motor

Prod Model:	DC Gear Motor GM16-030PA
Product Name:	DC Gear Motor GM16-030PA
Rated Voltage:	6V, 5V, 12V DC
No-Load Speed:	30-4000 rpm
No-Load Current:	20-45 mA
Gear Motor Rated Speed:	28-3250rpm
Rated Torque:	0.01-0.5kg.cm
Rated Current:	75-200 mA
Output Power:	0.45,0.50W
Stall Torque:	23 g.cm
Stall Current:	0.27,0.60,0.75A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Pm-Permanent Magnet
Type:	Gear Motor
Certification:	RoHS CE
Brand:	TT Motor

Product Description

Electrical micro Aerospace instruments 5V/6V/12V dc Planetary Gear Motor

Gear motor Main Features
1.OEM/ODM 16mm gearbox plus 030&050 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.16mm gear motor provide 0.05Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:3,10,17,20,35,63,86,115,150,250,360


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TFF-030PA-09220	6	11500	35	9000	5	140	0.45	23	0.60
TFF-030PA-10180	5	11500	45	9000	5	200	0.45	23	0.75
TFF-030PA-06400	12	12500	20	9750	5	75	0.50	23	0.27

Gear motor technical data : GM16-030PA-09220-xxx

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	3600	1100	550	310	175	130	96	73	44	30
Rated speed rpm	3000	900	450	260	140	105	78	60	38	28
Rated torque kg.cm	0.01	0.03	0.06	0.1	0.19	0.26	0.35	0.45	0.5	0.5
Max.momentary tolerance torque kg.cm	0.05	0.14	0.28	0.48	0.9	1.2	1.6	1.9	2.9	3.0

Gear motor technical data : GM16-030PA-10180-xxx

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	3600	1100	550	310	175	130	96	73	44	30
Rated speed rpm	3000	900	450	260	140	105	78	60	38	28
Rated torque kg.cm	0.01	0.03	0.06	0.1	0.19	0.26	0.35	0.45	0.5	0.5
Max.momentary tolerance torque kg.cm	0.05	0.14	0.28	0.48	0.9	1.2	1.6	1.9	2.9	3.0

Gear motor technical data : GM16-030PA-06400-xxx

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	4000	1200	610	350	195	140	105	83	50	35
Rated speed rpm	3250	975	485	280	155	110	85	65	41	35
Rated torque kg.cm	0.01	0.03	0.06	0.1	0.19	0.26	0.35	0.45	0.5	0.5
Max.momentary tolerance torque kg.cm	0.05	0.14	0.28	0.48	0.9	1.2	1.6	1.9	2.9	3.0


Product Application
Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.


Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should bb paid before shipping.
