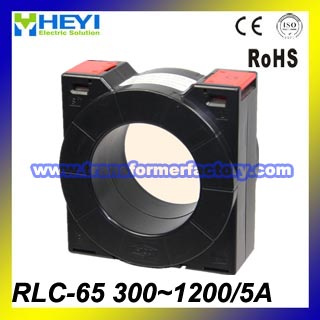

| Prod Model: |
RLC-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Window Size: |
65mm |
| Model Type: |
Busbar or Dinrail |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
DESCRIPTION
A new range of (5 Models) compact design plastic case current transformer. lt's volume is
much bigger than general model, integral hinged plate terminal cover, DIN rail mounting all
makes this series CT match the requirements in space limited panels.
FEATURE
Three built in fixing methods: Panel/ Din Rail/Busbar
:/DIN/
Built in hinged terminal cover
High Capacity; High Accuracy
;
Primary Current from 5A t0 5000A
SPECIFICATIONS
Rated Frequency()
Rated Test Voltage()
Rated short-time thermal current(lth)()
Rated dynamic curren t (ldyn)()
Rated voltaae (Um)()
Contin uou s -ove rload ()
Operating temperature()
Housing self-extinguishing class()
Safety factor()
Secondary current() | 50/60Hz
3kv AC.(1min)
6oln
2.5lth
0.72Kv AC.
1.2ln
-10ºC~50ºC
VO
FS5
5A/1A
|
| Rated current | Rated power(VA) |
| Class0.5 | Class0.5s |
| 300/5 | 5 | 5 |
| 400/5 | 5 | 5 |
| 500/5 | 5 | 5 |
| 600/5 | 5 | 5 |
| 750/5 | 5 | 10 |
| 800/5 | 5 | 10 |
| 1000/5 | 10 | 10 |
| 1200/5 | 10 | 15 |
Our Commitment:
BETTER PRICE than other sellers for you because of Factory Direct Sale.
BETTER QUALITY than before caused by our 10+ years trading experience.
STOCK IN TRADE always own to our Fast & Professional production line.
FAST DELIVERY always made by our GROUP's Enthusiam.
TIMING REPLY in 24 hours all about our TEAM's Passion & Patience.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
