| Prod Model: |
flange heater |
| Saltpeter Tank: |
Tubular Hearter |
| Sink: |
Tubular Hearter |
| Fusible Metal Melting Furnace: |
Tubular Hearter |
| Air Heating: |
Tubular Hearter |
Product Description

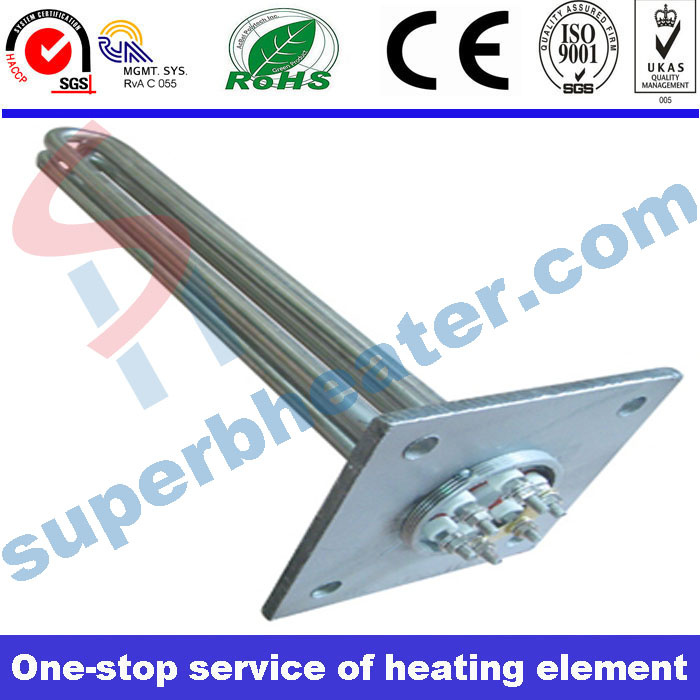

Product Description Electric immersion bath water tubular immersion heater
Introduction:
Our tubular heater is designed by our experts who has twenty years experiences and excellent technique ,It has the latest equipments and world famous electric heated material and was examined strictly by precise instruments. So the quality is absolutely credible, safe, enduring, and high efficiency.
Our Features:
1.We offer standard as well as customized models |
2.We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm |
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium |
4.We offer various shapes as customer demand: immersion heater with flange or screw, explosion proof heater |
5.Various terminal options are available |
6.Various shapes and sizes are available |
7.Durable and has longer life |
Product Details | Flange Size | 80x80mm |
| Rating | 230V/12KW |
| Pipe Material | Stainless steel or Incoloy |
| Type | Industrial heater |
| Diamenter | pipe:8mm to 16mm |
| Outer diameter | Follow spec custom |
| Resistance wire | 0Cr25A15 |
| Terminals | Screw with nut or Cable |
Specifications(customized)1.Water heating pipe.
2.The pipe workpiece are including SUS304,SUS316,SUS321 INCOLOY840,Incoloy800
3.Pipe Diameter are 6.6mm, 8.0mm and 10.0mm to 16mm
4.The surface load of the heating pipe is 16W/cm2.
5.Voltage&Power:110V-240V,3000W-30000W
Note:1.The electric heating elements developed by our factory is made from the excellent stainless steel tube,
2.High quality electrically-melted oxidized magnesium power
3.High-density heating wires with international famous brand
4.processed by national advanced equipments
When Ordering please specify(1). Type of Heater
(2). Wattage and Voltage
(3). Dia & length of the heater
(4). Drawing or Sample required for special configuration
UseWidely used in a variety of saltpeter tank , sink, tank, acid tank, fusible metal melting furnace, air heating furnace, drying oven, oven, hot die and other devices.
Application of electric heating pipe
1. Small size, high power: the electric heater mainly used within the cluster tubular heating element, each cluster-type tubular electric heating element maximum power of 5000KW.
2. Fast thermal response, high temperature control accuracy, comprehensive thermal efficiency.
3. Wide range of applications, strong adaptability: The circulating heater can be applied to explosion-proof or general occasions, its explosion-proof grade up to B-class and C-class, its pressure up to 10Mpa. And according to the user needs the cylinder with vertical or horizontal installation.
4. High heating temperature: the heater design maximum operating temperature up to 850 ºC, which is the general heat exchanger can not get.
5. Fully automatic control: Through the heater circuit design, can easily achieve the export temperature, pressure, flow and other parameters of automatic control, and computer networking, to achieve man-machine dialogue.
6. Long life, high reliability: The heater is made of special electric materials, coupled with the design of the power load are more reasonable, the heater with multiple protection, making the heater safety and life greatly increased.
7. Stainless steel electric tube is a metal tube for the shell, along the tube in the center of the central axis of the spiral electric heating alloy wire (nickel chromium, iron chromium alloy) the gap filled with a good insulation thermal conductivity of magnesia sand, Sealed with silicone or ceramic, this metal armored electric heating element can be heated air, metal molds and a variety of liquids. ] In the high-temperature stainless steel seamless tube evenly distributed high-temperature resistance wire, in the gap part of the dense filling thermal conductivity and insulation properties are good crystalline magnesia powder, this structure is not only advanced, high thermal efficiency, and heat evenly, when the high temperature Resistance wire in the current through, the heat generated by the crystallization of magnesium oxide powder to the metal pipe surface diffusion, and then transferred to the heated parts or air to achieve the purpose of heating.

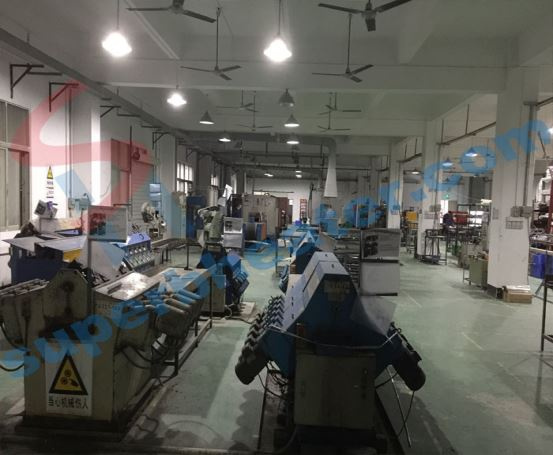

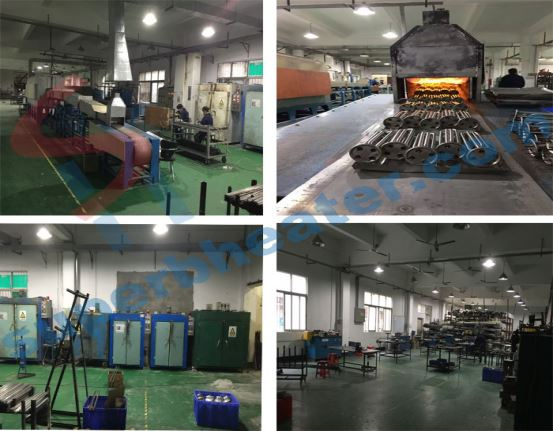

Our workshop

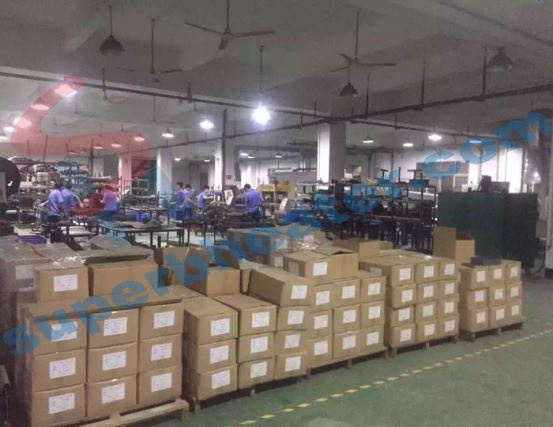

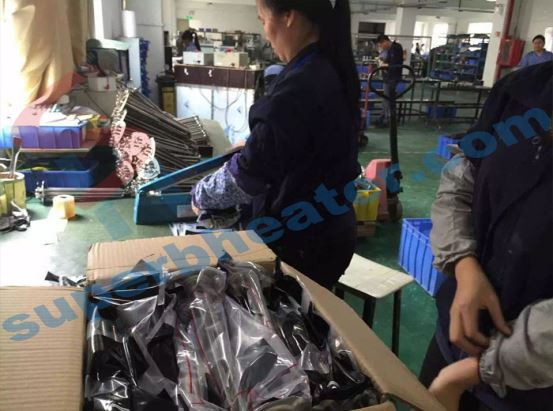

Packing and shipment
OUR ADVANTAGES1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180days
Superb Heater Technology has been focused on the production of
electric immersion bath water tubular immersion heater since 1985, which is well-known as one of the leading manufacturers and suppliers of
electric immersion bath water tubular immersion heater. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
ctory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
