Prod Model: |
EcooSetter T-400F |
Weight: |
800 Kgs |
Power Supply: |
4 Kw |
Usage: |
Offset Printing |
Plate: |
Lithography Printing |
Type: |
CTP Plate Making Machine |
Light Source: |
Semiconductor Laser |
Certification: |
SGS |
Product Description

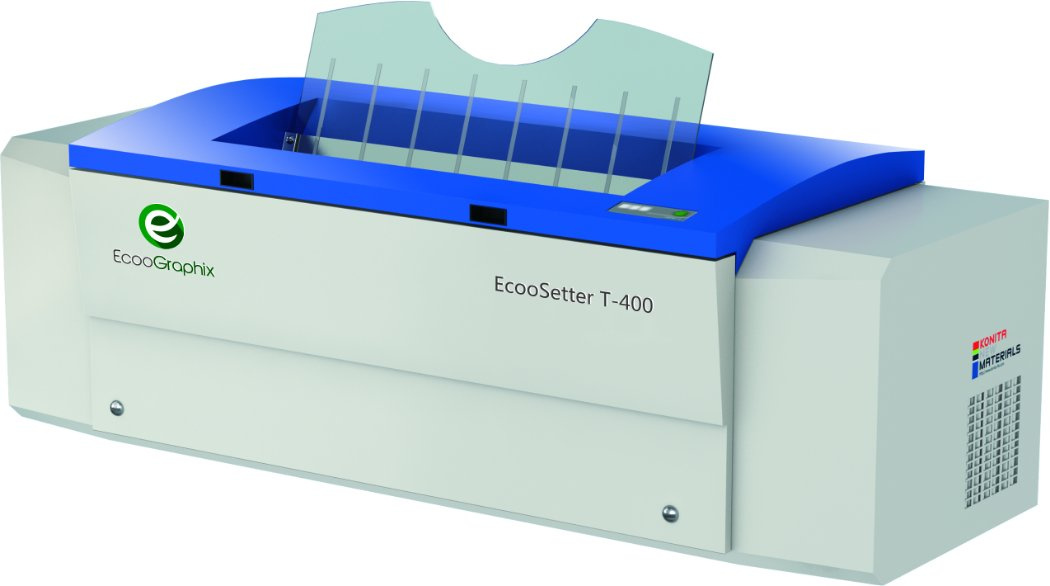

The most popular thermal CTP model: EcooSetter T-400F CTP, with 48 laser imaging channels and 28 pph throughput
Configurations:Model | EcooSetter T-400F CTP | Weight | 800 kgs |
Image system | 48 channels | Size | 1900mm*1200mm*1000mm |
Throughput | 28 plates per hour | Power Supply | Single phase:220AC, +6%, -10%, Power consumption:4kw |
Repeatability | ±5um | Environment | Recommended:21-25ºC, max:18-26ºC, humidity:40-70% |
Plate thickness | 0.15mm to 0.3mm | Laser type | semiconductor laser |
Resolutions | 2400 dpi | Laser wavelength | 830 nm |
Plate size(max) | 800mm*660mm | Plate size (min) | 400mm*300mm |
Plate loading | Manually | Brand | Ecoographix or OEM |
Machine details

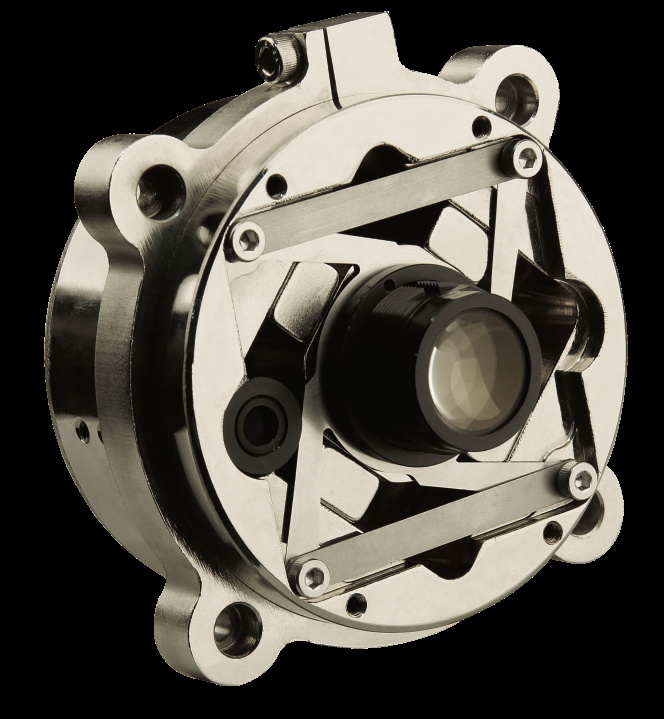

Autofocus
![](/proimages/44f3j00QfKEYHpUuSok/ecoographix-high-performance-computer-to-plate-ctp-for-offset-printing.jpg)

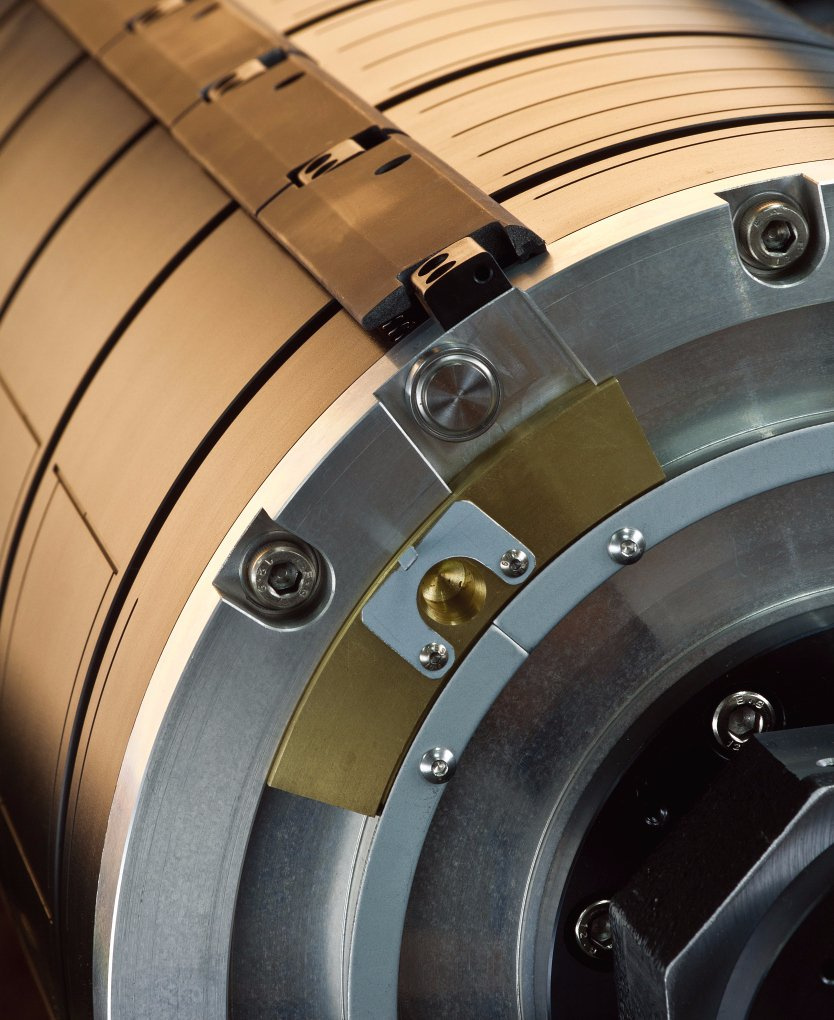

External drum and auto switch of laser beam
![](/proimages/44f3j00tUSTYVrzVsbq/ecoographix-high-performance-computer-to-plate-ctp-for-offset-printing.jpg)

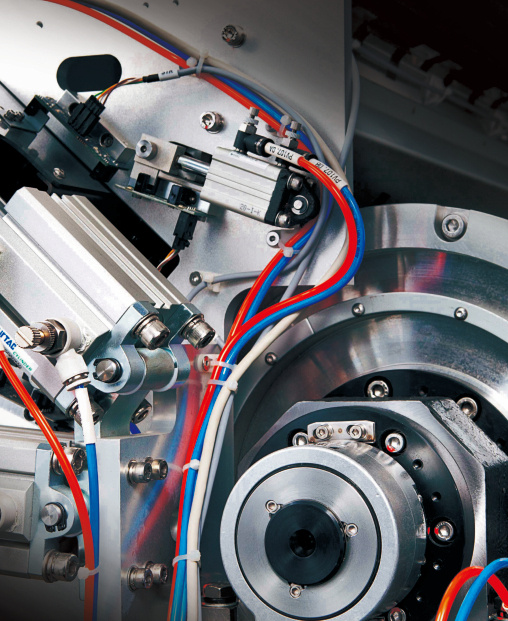

DDS frequency multiplication and drum auto balance
![](/proimages/44f3j00tGSafogFYZqb/ecoographix-high-performance-computer-to-plate-ctp-for-offset-printing.jpg)
Other options for this modelModel | T-400 S | T-400 E | T-400 FA | T-400 SA | T-400 EA |
Imaging system | 32 Channel | 24 Channel | 48 Channel | 32 Channel | 24 Channel |
Throughput | 22 PPH | 16 PPH | 28 PPH | 22 PPH | 16 PPH |
Plate loading | Manually | Manually | Automatically | Automatically | Automatically |
Factory and Package

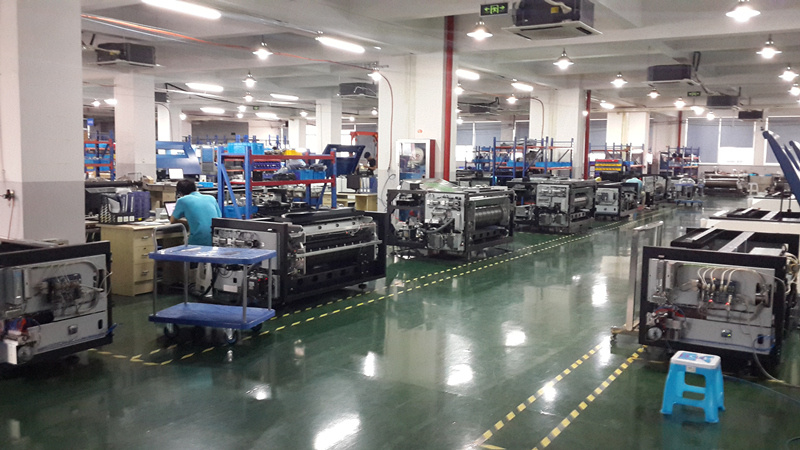

The factory located in Hangzhou. Most available port of shipment is Shanghai port and Ningbo Port. We welcome your visiting any any time.
![](/proimages/44f3j00afZtYSgEqjoc/ecoographix-high-performance-computer-to-plate-ctp-for-offset-printing.jpg)
The sea worthy package for exporting purpose.
![](/proimages/44f3j00TYstGnuCgZob/ecoographix-high-performance-computer-to-plate-ctp-for-offset-printing.jpg)
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours
