Dual SIM Card GPS Tracker for Excellent Remote Management
| Price: |
US $ 38-45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
OCT800-D |
| Color: |
Black |
| Backup Battery: |
550mAh |
| Power Supply: |
+6V - +24V / 1.5A |
| Factory: |
Yes |
| Weight: |
76g |
| SIM Card Type: |
Supporting 2 SIM Cards |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| GSM Frequency: |
850/900/1800/1900MHz |
| GPS Frequency: |
L1, 1575.42 MHz |
| Location Accuracy: |
10m |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Carrier Frequency: |
Multi-Frequency |
| Brand: |
Oner |
| Certification: |
Ce, RoHS, FCC |
Product Description
GPS Vehicle Tracker OCT800-D
GPS Vehicle tracker OCT800-D is useful .Talk about GPS tracking in transnational transport. The special thing of OCT800-D is that can be used in auto switch tracking in Neighbor Countries, or a complete management to fleet. You will never lose contact to your fleet even if they enter another country, to improve car security.
Specifications:
Power supply +6V - +24V / 1.5A
Size 76mm x 50mm x 24mm
Weight 76g
Operating temperature -20° to 55° C
Humidity 5% to 95% (Non-condensing)
Frequency GSM 850/900/1800/1900Mhz
GPS chipset latest GPS SIRF-Star III chipset
GPS sensitivity -158Db
GPS frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position accuracy 10 m, 2D RMS
Velocity accuracy 0.1 m/s
Time accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start <1 sec., average
Warm start <36 sec., average
Cold start <36 sec., average
Altitude limit 18,000 m (60,000 feet) max.
Velocity limit 515 m/second (1000 knots) max
Interface 4 I/O interfaces
LED 2 LED lights to show working status.

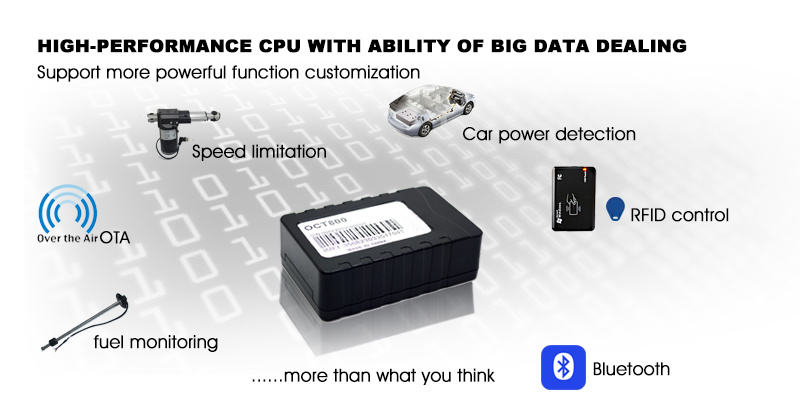

Main Functions:
1. Real time tracking
2. Track by interval
3. Detail address inquiry
4. Engine cut remotely
5. Geo-fence alert
6. Over speed alert
7. Speed limitation
8. Arm/Disarm
9. Working time setting
10. SIM balance inquiry
11. Mileage Calculation
12. Firmware update over the air
13. LBS Tracking
14. Dual SIM tracking
15. Google map link inquiry
16. SOS emergency alert
17. Movement alert

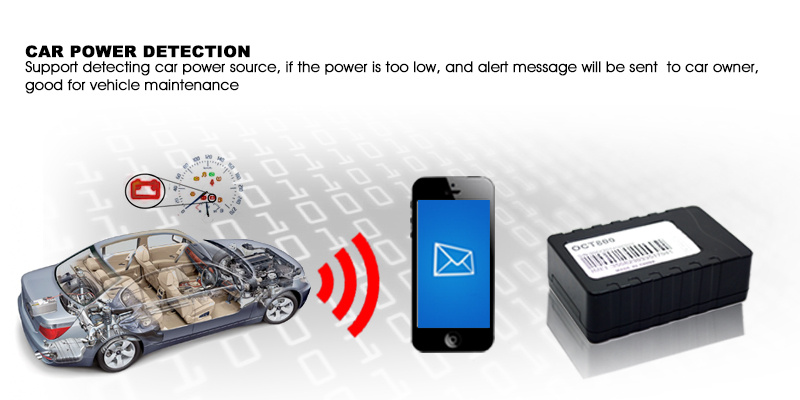

18. External power cut alert
19. Plat No. setting
20. Power saving mode
21. Engine detecting and report
22. Fuel monitoring
23. Mileage Setting
Q&A for gps trackers:
1. How does the tracker work?
Tracker is like a mobile phone, which works with GSM and GPS signals. Location by GPS while data transferred by GSM SMS(mobile phone) or GPRS (Web tracking platform system).
2. How long for your product warranty?
12 months.
3. Where should I put the antenna in the car?
Generally speaking, the antenna should be put near the vehicle window to get the strong signals.
4. After we buy your tracking software, if we want to amend something, how can we make it?
For any additional functions to be added, just feel free to contact us. Our engineer will work on the software for you to finish the updating to your server. Customized software can be achieved to meet your special needs.
5. What certificate your products has?
CE,FCC and ROHS.
6. If we want to print the logo on the tracker, can you make it for us?
Sure, we can print the logo on the tracker before shipment as required.
7. What is the shipping method?
Normally, we will arrange shipment by DHL. Meanwhile, we can help with the shipment on your own courier account or forwarder.
Any more question, just feel free to contact us.
