| Color: |
Blue, Green, Yellow, Red, Black. |
| Metal Coating: |
Copper |
| Layers: |
Multilayer |
| Base Material: |
FR-4 |
| Certification: |
Ce |
| Customized: |
Customized |
| Condition: |
New |
| Mode Of Production: |
DIP&SMT |
Product Description

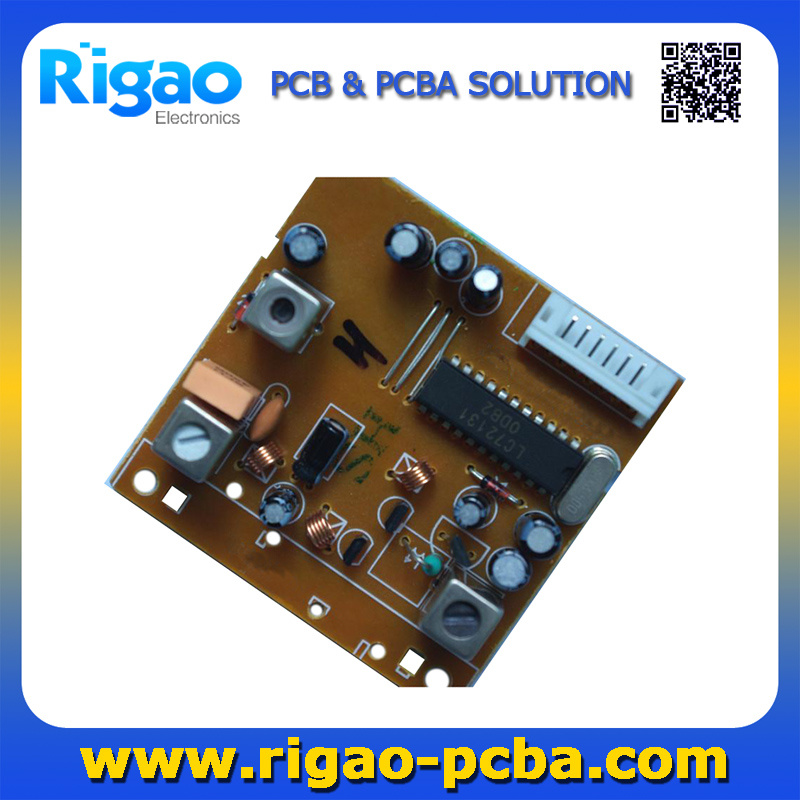

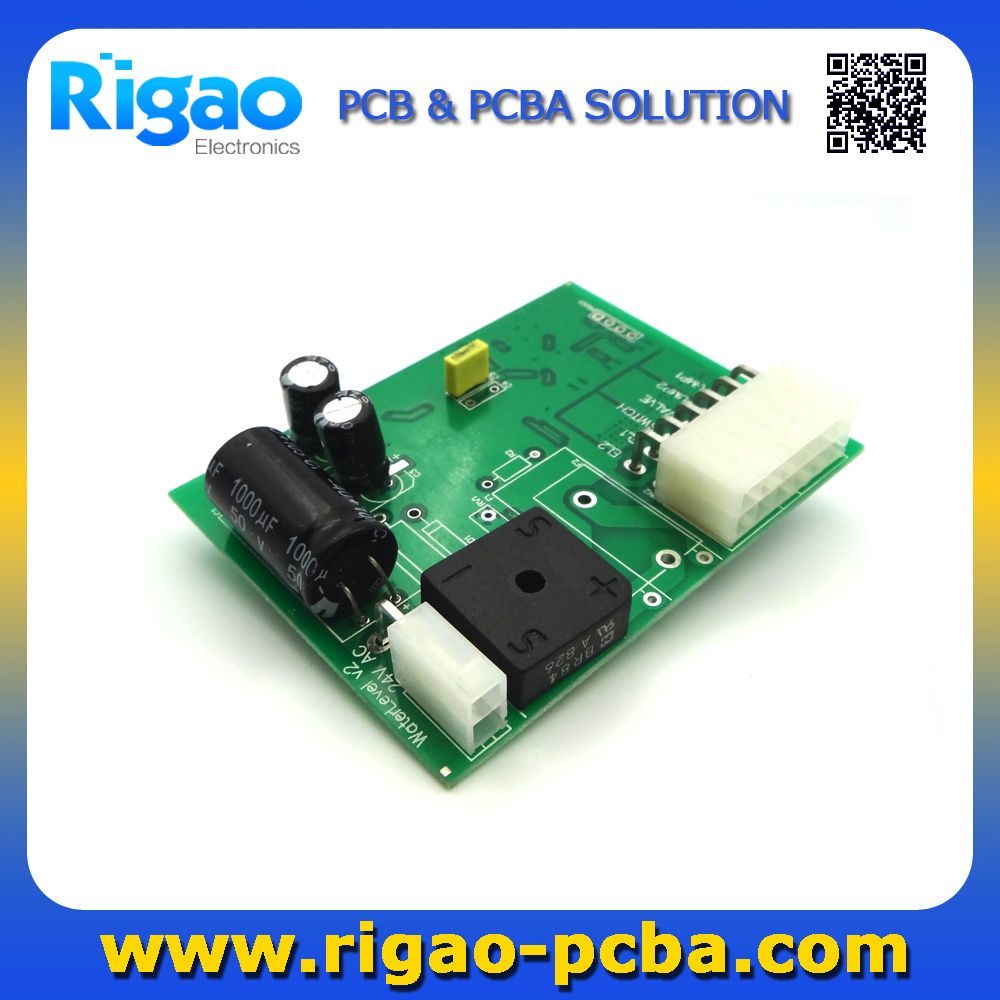

Double layer PCB assembly with SMD and DIP parts

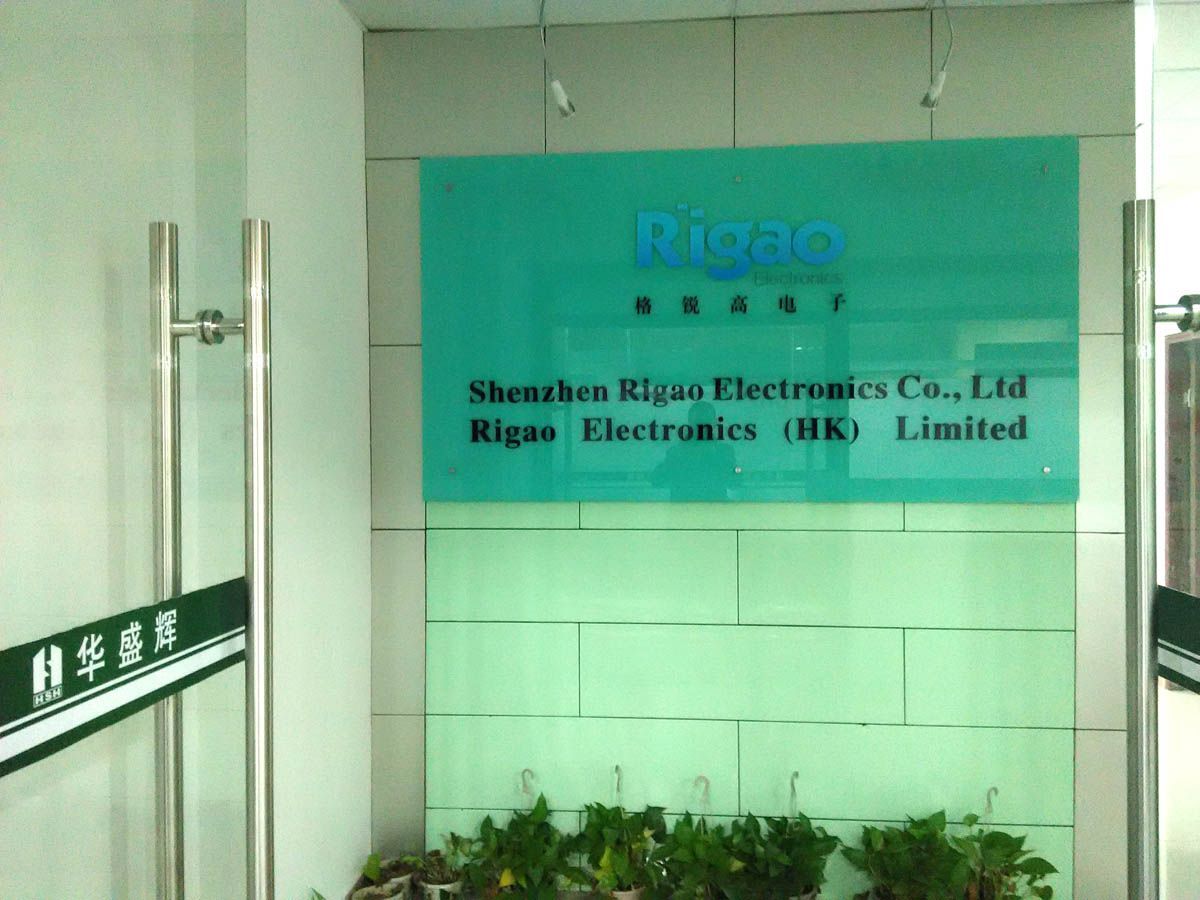

Welcome to Rigao Electronics Co.,Ltd.
- Founded in 2008, Shenzhen Rigao Electronics Co., Ltd. is privately held Shenzhen
Corporation, dedicated in providing electronic engineering and manufacturing services.
After several years of development, Rigao has become an international provider of
solutions in three principle areas: Printed circuit board procurement, PCB assembly
procurement and component procurement.
- As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume
projects, medium volume projects and large volume projects. We are able to maintain a
complete service system with comprehensive technical backup as well as cost advantage
and scheduled delivery.
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
Application
Products are applied to a wide range of High-tech industries such as: LED,
telecommunication, computer application, lighting, game machine, industrial
control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,
Canada, Europe counties,Africa and other Asia-pacific countries.
Advantage
1. PCB from factory directly
2. PCB which have the comprehensive quality control system
3. PCB with good price
4. PCB with quick turn delivery time from 48hours
5. PCB is no MOQ/MOV
6. PCB with many years experience in exporting service
7. PCB with certification (ISO/UL/RoHS/SGS)
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),
QA/QC, Flying Proble Test, E-test fixture
Detailed Specification
| 1 | Layer | 1-22 layer |
| 2 | Material | FR4, CEM1, Aluminium Base, Cooper Base, High frequency material |
Thick copper foil,94-V0 (HB), PI Material, Roger,High TG:SL S1000-2,ITEQ:IT180. |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 610mm*1200mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HASL,HASL lead free,OSP,Immersion tin, Immersion Gold |
Immersion Silver/Gold Finger ,Gold Plating, Selective OSP Immersion Gold |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Profiling Punching | Routing,V-CUT,Beveling |
| 15 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
Related Products:
What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Requested information for PCB Assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
If you are interested in our products, pls feel free to contact me. Thank you.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
