Prod Model: |
FNDS1 Series |
Color: |
Transparent,White |
Standard: |
IEC60439 |
Protection Class: |
II |
Rated Voltage: |
400V |
Type: |
Distribution Metering Box |
Structure: |
Protection |
Size: |
4-36ways |
Shell Material: |
ABS |
Shell Protection Grade: |
IP41 |
Brand: |
Funelec/OEM |
Product Description
1.Description:
·The distribution box is widely used in low voltage distribution
networks for power supplying of consumers and commercial buildings
·Suitable for mounting of modular electric installation devices
·Available with neutral and earth terminal block
·With transparent plastic door in arc shape design
·Big range and professional design ensures specialized usage
·Degree of protection IP41 and IP56

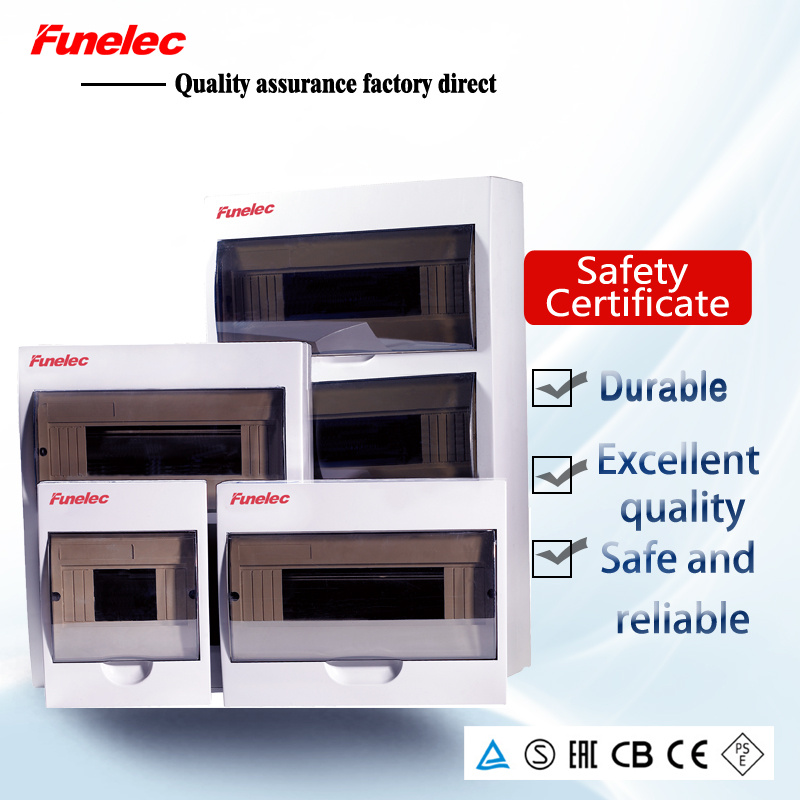

Distribution Box FNDS1
Surface-mounted Moisture-proof DB(IP41)
Ways | Type Designation | Article No. | QNT/CTN(pcs) | G/N.W/CTN(kg) | MEAS(cm) |
4ways 4ways 6ways 6ways 8ways 8ways 12ways 12ways 18ways 18ways 24ways 24ways 36ways 36way | FNDS1-4T FNDS1-4N FNDS1-6T FNDS1-6N FNDS1-8T FNDS1-8N FNDS1-12T FNDS1-12N FNDS1-18T FNDS1-18N FNDS1-24T FNDS1-24N FNDS1-36T FNDS1-36N | FDS101 FDS102 FDS103 FDS104 FDS105 FDS106 FDS107 FDS108 FDS109 FDS110 FDS111 FDS112 FDS113 FDS114 | 20 20 20 20 20 20 10 10 10 10 10 10 5 5 | 10/9 10/9 12/11 12/11 14/13 14/13 9/8 9/8 12/11 12/11 18/17 18/17 10/9 10/9 | 52x24x42.5 52x24x42.5 52x31.5x42.5 52x31.5x42.5 52x39x43 52x39x43 52x27.5x43 52x27.5x43 54x38x47 54x38x47 55x34x56.5 55x34x56.5 49x32.5x59.5 49x32.5x59.5 |
Technical Data
·Cable entry design: free space available for hole-digging on both
cover and base of 2,3 way product
·Sufficient working space for mounting and wiring switchgears
·Sufficient working space behind the DIN rail
·Cover suitable for transparent and non-transparent
·Cover also suitable for inverse fixation
mounting of terminal support above or below
·Knock-out hole is available to full sides of the base
Electrical
Design according to | IEC60439 |
Degree of protection | IP41 according to E60529 |
| IP56 according to E60529 |
Protection class | II |
Rated voltage | 400V AC / 50HZ |
Mechanical
Material: | ABS with fire resistant /PS material |
Enclosure color | white |
Door | PC/ABS w ith fire resistant |
color | transparent / white |
Device support rail | DIN rail 35 7.5mm |
Steel sheet | acc.to IEC/EN 60715 |
Dimensions of DB cover
Ways | Dimensions(mm) |
L | W | H |
4 ways | 112 | 210 | 100 |
6 ways | 148 | 210 | 100 |
8 ways | 184 | 210 | 100 |
12 ways | 256 | 210 | 100 |
18 ways | 364 | 222 | 100 |
24 ways | 270 | 325 | 100 |
36 ways | 305 | 473 | 100 |
Packaging & Shipping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
3.Shipment port:SHANGHAI/NINGBO
4.By Air or by Sea for batch goods,Airport/ Port receiving;
5.Customers specifying freight forwarders or negotiable shipping methods!
