| Prod Model: |
UL800 |
| Working Theory: |
Ultrasonic |
| Serial Interface: |
RS232,RS485 |
| Operation Voltage: |
9-36V |
| Detecting Height: |
4m |
| Type: |
Ultrasonic Liquid Level Sesnor |
| Output Signal Type: |
Analog/Digital |
Product Description

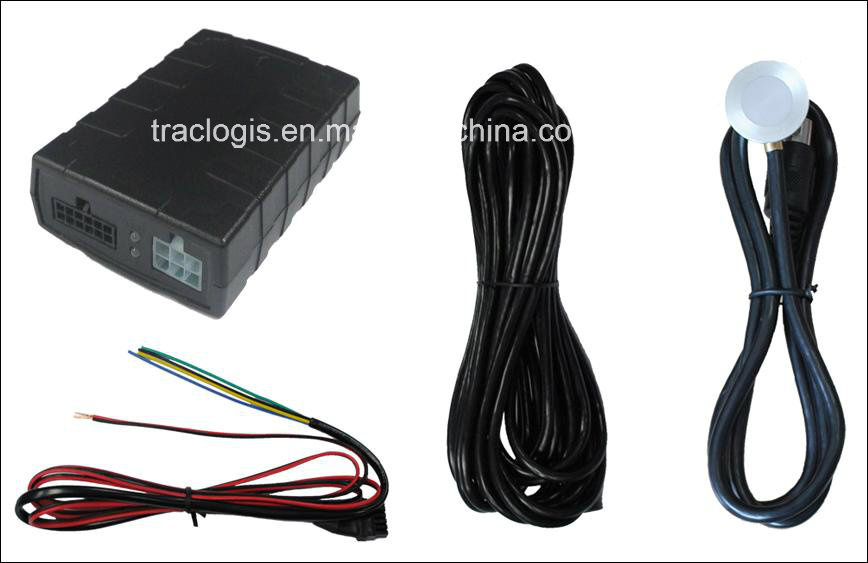

Ultrasonic Fuel Level Sensor UL800
Introduction
UL800 is intended for precision fuel and liquid level measurement in containers and fuel tanks of vehicles, road tanker monitoring systems, fuel storages, generators, GSM station etc, with ultrasonic technology and easy instllation, which enable convenient operation in harsh environments steadily.
The sensor can be integrated with any professional control units and equipment of GPS tracking.
Features
Easy Installation
No need to drill any hole on the tank, the sensor can be just installed on the bottom of the tank, which will save more time for the installation compared with the traditional fuel level sensor.
Multi-signal Outputs
Voltage Signal Output:(0-5v)
Digital Signal Output: RS232
Digital Signal Output: RS485
High Precision Measurement
High resolution of the sensor(1 mm)
Accuracy: 0.5%
Resolution: 1mm
Output Signal: Voltage, Current, RS232, RS485
Output Voltage: 0- 5V
Output Current: 4- 20mA
Easy Installation
Easy Calibration
Parameters
| Ultrasonic liquid level detector |
| Operating Voltage | DC9V-36V |
| The power supply ripple | Less than 100mV |
| Operating current | Less than 55mA |
| Measuring distance | 4cm to 100cm;
pressure-bearing range: -0.1MPa~32MPa |
| Resolution | 0.1mm |
| Measurement accuracy | 0.5% |
| Temperature compensation range | -40 - +80°C |
| Output mode | analog voltage,current,RS485,RS232 |
| Analog output | Voltage output
(default) | 1-5V (corresponding 0-100cm) |
| Current output | 4-20mA (corresponding 0-100cm) |
| Digital output | RS232(default) | See the "communication protocol" |
| RS485 |
| Alarm output | need external connection a alarming horn to achieve alarm |
| Install method | bottom of fuel tank/can, water tank |
| Operating temperature | -40 - +80°C |
| Storage temperature | -50 - +100°C |
| Size | 102*48*25mm with mounting holes |
| Ultrasonic transducer |
| Operating temperature | -40 - +80°C |
| IP grade | IP66 |
| Cable length | 8m and with shield |
| Weight | About 770g |
Application
Road Vehicles
Buses
Heavy equipment
Diesel generators
Construction machines
With years of research of real-time remote fuel-level monitoring solution, Traclogis accumulated rich experience in the field of fuel monitoring field, A real-time remote fuel-level monitoring solution is an option for managers who need to know exactly when and where fuel losses are occurring.
In addition to notification of a sudden change in fuel-level, a well-designed remote monitoring solution is able to provide other valuable information, such as how much fuel is lost, as well as the fuel cost management with driver's behavior, which will make fleet managers to save more cost and manage the fleet efficiently.
Benefits
increase vehicle or special machinery effectiveness;
minimize non-productive expenses;
supervise fuel usage;
optimize drivers working effectiveness
prevent (or minimize) fuel theft;
Installation
Established in 2009, Traclogis is dedicated to provide Fuel control system and Fuel consumption monitoring solution and GPS-GSM/GPRS vehicle monitoring and fleet management solutions that has a transformative effect on the way business optimize their fleet and mobile assets.
With the development of modernization in industry and agriculture, and the wide use of industry monitoring and automatic management, the wireless control system is expanding rapidly, especially in irrigation works and electronic power, fuel consumption, with the strong demands from the market, Traclogis started the remote fuel monitoring solution study in 2009, based on the experience of fleet management solutions, we have released the complete solution of remote fuel monitoring solution successfully, which has helped our customers saving a lot of cost on the management of fleet and industrial equipment operation.
Traclogis is dedicated to enhancing the value of its customers' business through intelligent integration of location technology, information and services, according to the requests from the market, we can fulfill the needs of all sizes of companies,
No matter you are just going to enter into the fleet management industry or you have done successfully in this field, Traclogis can always be your partner.
Traclogis' strategy is to help our customers to lower threshold of entering into fleet management field, as well as saving cost for the fleet managers, Traclogis is ideally to provide full range of solutions to satisfied our clients, which include also OEM project according to customer's requests.
