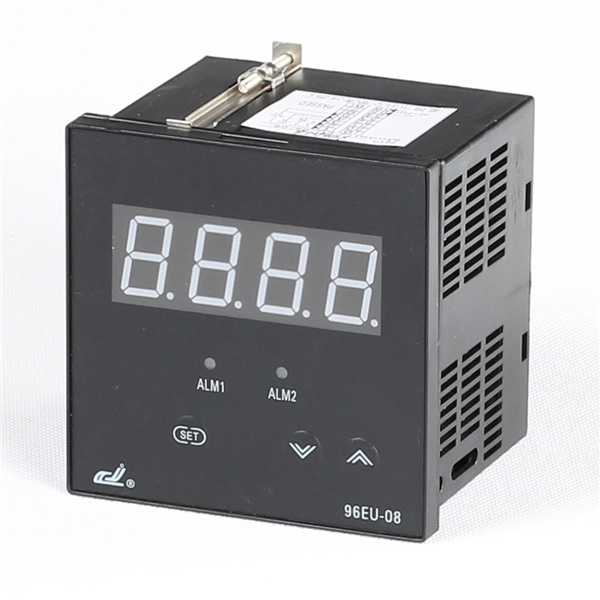

Digital Temperature Display/Control Instrument (96EU-08)

Name: Digital Temperature Display/Control Instrument (96EU-08)
Brand: all-electronics-online.com
SKU: 704122332
Availability: InStock
Rating: 4.4 (105 reviews)

Price:	US $ 32.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	96EU-08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	AC 85V~242V

Product Description

Main Technical Indexes
1. Measurement deviation:Class±0.5%F·S±1b,additional cold end compensation
deviation ±2C

2. Input Type:CU50(-50~150.0),PT100(-199.9~600.0),K(-30~1300),
E(-30~700),J(-30~900),T(199~400),S(-30~1600),
R(-30~1700),0~10V (-1999~9999),4~20mA (-1999~9999)

3. 0.8"LED tube and four digit display

4. Working power:AC/DC 24V~36V

5. Working condition:0~50C,relative humidity≤85%,without corrode and strong electric radiation.

Interior parameter

Series	Attention	Name	Setting range	Manual	Remarks
0	Loc	Electronic lock	0~50	LOC =0,all the parameter can be revised or it can't.	0
1	Sn	Input type	-	CU50( ),PT100( ), K( ),E( ),J( ),T( ), S( ),R( ),0~10V( ),4~20mA( )
2	dP	Decimal point	0~3*	When dp=0,display format is 0000; When dp=1,display format is 000.0; When dp=2,display format is 00.00; When dp=3,display format is 0.000	0
3	dIL	Lower limit	dIL≤dIH	When input signal is current or voltage , you can set the corresponding display number. As for other use, please refer to "Some useful samples for calibration"in the part No. IV	0
4	dIH	Upper limit	dIL≤dIH		5000
5	SC	Measurement deviation revisal	-20.0~20.0	Thermocouple and thermal resistance can modify the scope of ±20.0; Current and voltage signals can modify the scope of ±200(dp=0)	0
