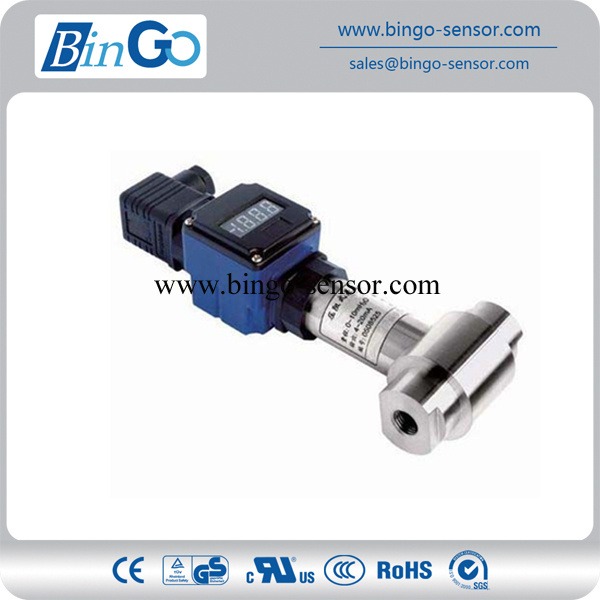

Differential Pressure Transmitter with LED Display

Name: Differential Pressure Transmitter with LED Display
Brand: all-electronics-online.com
SKU: 784723765
Availability: InStock
Rating: 4.4 (128 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-DP003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage:	12~28VDC
Medium:	Liquid Compatible with 316lss
Protection Grade:	IP65

Product Description

Differential Pressure Transmitter for PT-DP003
The differential pressure transmitter used mature ahd reliable capacitance sensor,combined with advanced micro-procesing technology and digital capacitance measurement technology.
Feature
1) good reliability,long-term stability,high accuarcy up to 0.1%
2) two-wire system 4~20mADC with smart HART protocol
3) good exposion-proof structure,automatically environmental temperature compensatuon

Technical Parameter

Pressure range	0~0.015MPa
Output	4~20mADC(two wire), 0~5VDC(three wire or four wire), 0~10mADC(three wire or four wire)
Accuracy	≤±0.25%FS(typical);≤±0.5%FS(max)
Years stability	≤±0.1%FS(typical);≤±0.2%FS(max);
Overload capacity	150%
Supply voltage	12~28VDC(typical:24VDC)
Compensation temperature	-20°C~+70°C
Working temperature	-40°C~+85°C
Insulation resistance	>100MΩ/50V
Insulating strength	>500MΩ/500V
Pressure connection	M20×1.5,M12×1,G1/4,G1/2,internal thread
Electrical connection	Hochman plug or cable
Medium	Liquid compatible with 316LSS
Protection Grade	IP65
Explosion-proof Grade	ExiallCT5
