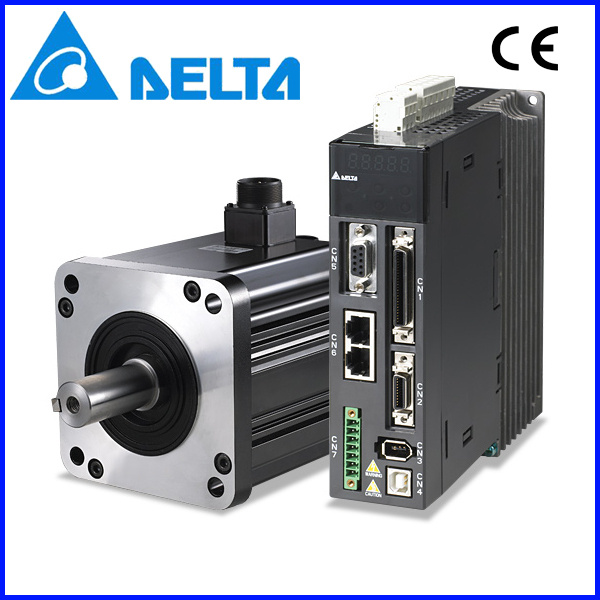

Delta Brand A2 Series 1kw AC Servo Motor and Driver
| Price: |
US $ 490-510/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
ASD-A2-1021-L+ECMA-E11310RS |
| Power: |
1000W |
| Encoder: |
20bit Incremental |
| Rated Torque: |
4.77 Nm |
| Rated Speed: |
2000rpm |
| Input Voltage: |
Single Phase 220V |
| Ecam Function: |
Available |
| Gantry Sychronous: |
Available |
| Dual Closed Loop: |
Available |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Certification: |
Ce |
| Brand: |
Delta |
Product Description

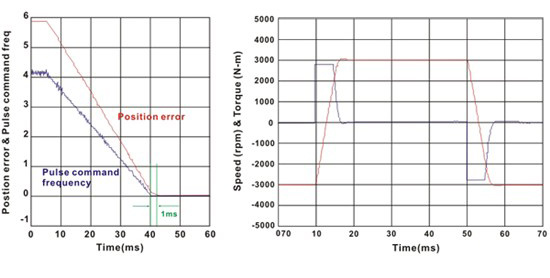

Application:Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printingFeature:High Precision ControlECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.Up to 1kHz frequency response. Settling time below 1ms.
Superlative Vibration Suppression Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.
Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.
Flexible Internal Position Mode (Pr Mode) 1)ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.2)64 internal position settings are offered for continuous motion control.3)Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.4)35 kinds of homing modes are available.

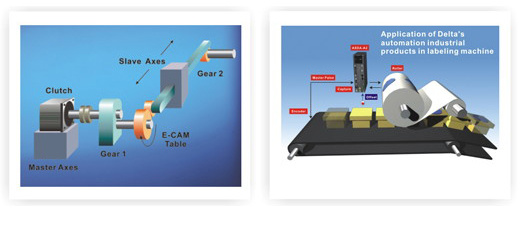

Unique Built-in Electronic Cam (E-CAM)1)Up to 720 E-CAM points.2)Smooth interpolation between points can be completed automatically to yield a flexible programming.3)ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.4)Applicable for rotary cutoff and flying shear applications.
Full Closed-loop Control (Capable of reading second feedback signals) 1)Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position control can be accomplished.2)Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.
