| Prod Model: |
XWM |
| Type: |
Flexible |
| Material: |
PET |
| Application: |
Calculator |
| Brand: |
OEM |
Product Description

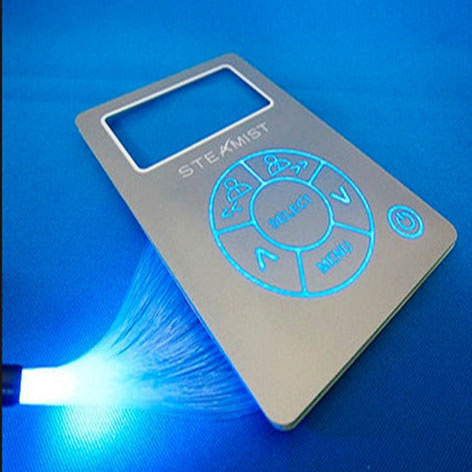

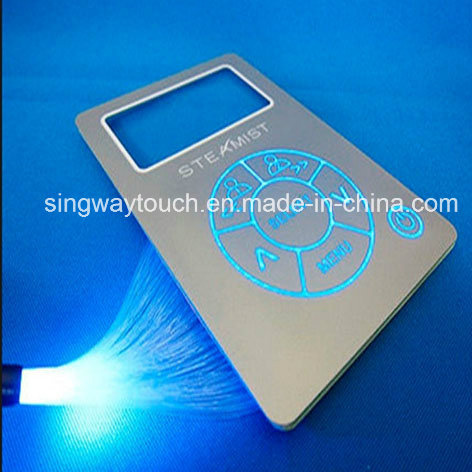

LED Backlight keyboard Control Panel Membrane Switches
Feature
- Material: Matte PC (smooth), gloss PC+matte oil , gloss PC, PET, and PVC
- Overlay materials: The most commonly used base materials are polyester (PET) and polycarbonate (PC).
- Thickness: 0.05-1.0mm
- LED windows: Transparent, translucent, matte, gloss
- Embossed keys: No embossed keys and domes, domes without embossed keys, embossed keys without domes, embossed keys and domes
- Tail: Tail with clear mask or green mask
- Adhesive: 3M467, 3M468, and no adhesive
- Matching color: Pantone and RAL color matching system.
Main Technical Specifications
Electronic Characteristic | <35V ( DC ) <100mA 1W | Life Expectancy | flat type ≥ 500 million times, tactile type: ≥ 100 million times |
Contact Resistance | 10Ω--500Ω (According the trace length and materials to confirm) | Operation Temperature | -40 °c ~ + 80 °c |
Insulating Impedance | >100MΩ 250V DC | Stock Temperature | -40 °c ~ + 85 °c |
Resistance of the wire | <1 Ω/cm width 1.27mm | Humidity | + 40 °c 90 % ~ 95% 240 hour |
Operation Force | flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) | Switch Stroke | flat type 0.1-0.5mm, tactile type 0.6-1.5mm |
Advantages:
1. Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-
5. Low cost, high lifespan, membrane switchs design and manufacture are using the keyboard as a whole way,
6. Easy to operate, intuitive, safe and reliable, Inhouse 100% functionally tested, components are guaranteed without any intermittent problem.

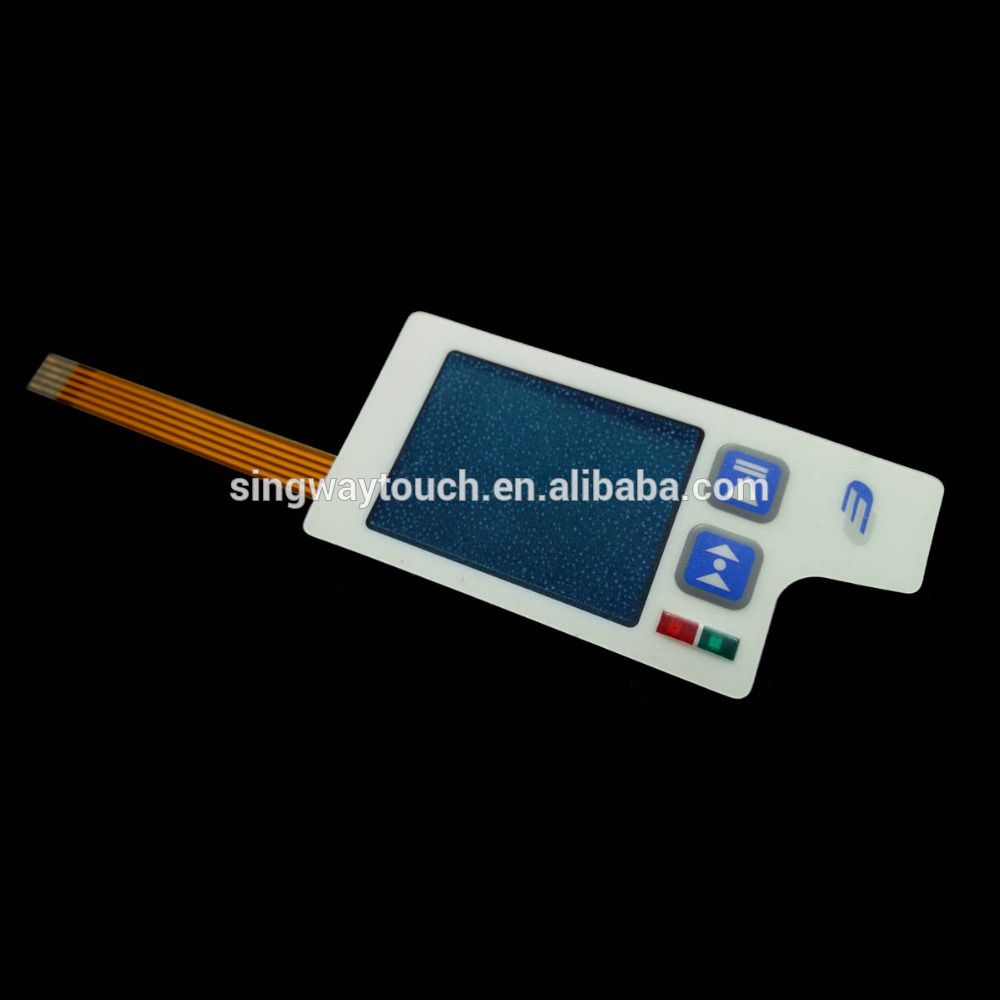

Product show
Dongguan Singway Electronic Technology Co., Ltd. Was established in September 2011, a set of research and development, manufacturing, sales and service as one of the high-tech enterprises, adjacent to the beautiful scenery of the Dongguan Songshan Lake Science and Technology Industrial Park, plant construction area of about 7000 square meters, the company has a high-quality professional management and R & D team, management and engineering and technical personnel account for 40%, with advanced and system, the value of the touch screen technology and solutions provider.
Dongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Xing Electronic Technology Co., Ltd. Adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
