Product Description
Specifications
Nanocrystalline alloys core, with high initial permeability, and effective noise suppression.
Application Fields
Used for Current Transformer or Power Transformer in Power Supply System.
Performance Characteristics
Made of Co-based amorphous alloys or Fe-based nanocrystalline alloys, with high initial
permeability, and can effectively eliminate the noise created by EMI common-mode

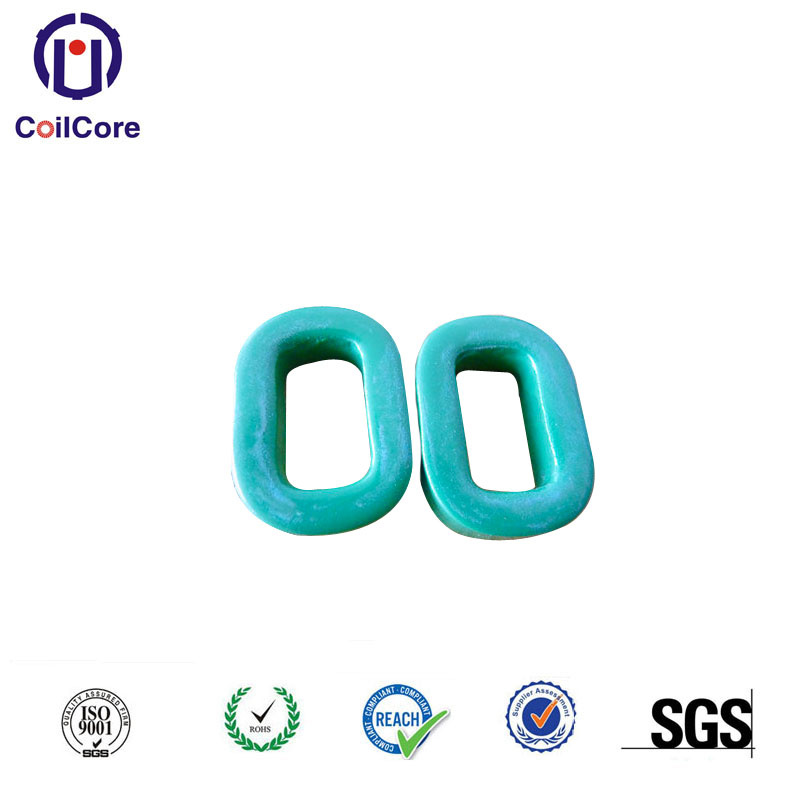

| Item Name | Low Core Loss Precision Current Transformer coating Cores Nanocrystalline Core |
| Description | Epoxy coating amorphous and nanocrystalline cores feature small in volume and high stability. We can design the cores according to customer's requirement, both of size and performance. They are suitable for all types and applications, especially suitable for cores for common mode chokes, power transformers and current transformers.
Nanocrystalline Toroidal Cores for Common Mode Chokes feature High permeability,High indutance,easy help you treat EMI problems.
Fe-based nanocrystalline core features very high permeability, high saturation flux density, low loss makes common mode choke has large inductance with only a few turns, low copper loss and small size.
We are professional producer of amorphous core and nanocrystalline core. |
| Detail | Nanocrystalline Core
High permeability
Precision power meter
Low core loss
Current overload protection in engine control |
| Application | Electronic Watt hour meter
Precision power meter
Current overload protection in engine control
Current control in automation industry |
| Characteristics | High permeability, which lead to low phase and amplitude error
Very high saturation flux density compared with Permalloy, which bring higher measurement current range
Low core loss
Excellent temperature stability |
| Specification Sheet | a-core build; b-window width; c-window height;d-strip width;
e-core width;f-core length;Lm-length of magnetic path;
Ac-section area;Mass-weight; |
Core Size |
ID | OD | HT |
| 32 | 50 | 20 |
| 40 | 50 | 20 |
| 40 | 59 | 20 |
| 30 | 60 | 20 |
| 40 | 64 | 20 |
| 40 | 64 | 25 |
| 40 | 64 | 30 |
| 50 | 65 | 25 |
| 39 | 68 | 25 |
| 61 | 70 | 20 |
| 40 | 70 | 25 |
| 40 | 70 | 25 |
| 36 | 71 | 30 |
| 36 | 72 | 30 |
| 50 | 75 | 25 |
| 45 | 78 | 30 |
| 50 | 80 | 25 |
| 50 | 80 | 25 |
| 50 | 90 | 30 |
| 50 | 100 | 25 |
| 90 | 100 | 30 |
| 80 | 110 | 25 |
| 80 | 120 | 20 |
| 80 | 120 | 25 |
| 100 | 120 | 25 |
| 60 | 120 | 30 |
| 70 | 120 | 30 |
| 80 | 120 | 30 |
| 90 | 125 | 25 |
| 90 | 130 | 30 |
| 80 | 130 | 50 |
| 90 | 130 | 50 |
| 100 | 140 | 20 |
| 100 | 140 | 25 |
| 100 | 140 | 40 |
| 120 | 170 | 25 |
| 198 | 248 | 20 |
| 198 | 248 | 30 |
| 214 | 264 | 30 |
| 200 | 270 | 30
|
Metal caseCore Size |
ID | OD | HT |
| 90 | 115 | 30 |
| 85 | 115 | 25 |
| 95 | 120 | 30 |
| 90 | 120 | 30 |
| 95 | 125 | 35 |
| 95 | 130 | 30 |
| 120 | 140 | 25 |
| 120 | 140 | 25 |
| 100 | 155 | 60 |
| 105 | 165 | 70 |
| 135 | 165 | 30 |
| 120 | 170 | 10 |
| 120 | 175 | 15 |
| 130 | 180 | 30 |
| 115 | 180 | 70 |
| 155 | 185 | 40 |
| 130 | 190 | 60 |
| 130 | 190 | 40 |
| 130 | 190 | 20 |
| 130 | 190 | 35 |
| 160 | 200 | 20 |
| 160 | 205 | 30 |
| 135 | 210 | 100 |
| 135 | 210 | 50 |
| 160 | 210 | 30 |
| 160 | 210 | 30 |
| 150 | 210 | 10 |
| 160 | 225 | 30 |
| 160 | 225 | 35 |
| 160 | 230 | 35 |
| 160 | 230 | 35 |
| 160 | 230 | 35 |
| 160 | 235 | 35 |
| 160 | 240 | 40 |
| 200 | 240 | 20 |
| 200 | 270 | 35 |
| 210 | 280 | 30 |
| 210 | 280 | 25 |
| 210 | 280 | 50 |
| 210 | 280 | 15 |
| 200 | 285 | 60 |
| 200 | 285 | 60 |
| 200 | 285 | 20 |
| 200 | 285 | 70 |
| 200 | 300 | 80 |
| 405 | 525 | 80 |
| 500 | 600 | 100 |
Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:
1. Common Mode Filter Chokes
2. Current Transformer
3. Differential Mode Chokes
4. Automotive Chokes (for car audio)
5. Magnetic Amplifier
6. PFC Chokes
7. ISDN Splitter
8. GFCI (Ground-Fault Circuit Interrupters)
9. ELCB (Earth Leakage Circuit Breaker)
10. ALCI(Appliance Leakage-Current Interrupters)
11. Core and Current Transformer for energy meters (Watt hour -meters )
We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.
Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
