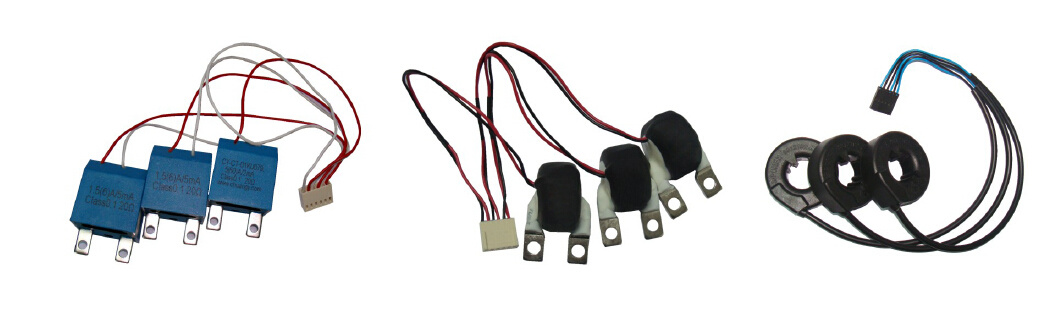

Current Transformer, Assemble in Groups, High Accuracy

Name: Current Transformer, Assemble in Groups, High Accuracy
Brand: all-electronics-online.com
SKU: 757683925
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-CT-01Q001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Housing Material:	Flame Retardant ABS
Encapsulation:	Epoxy Resin
Ambient Temperature:	-40 to +75 Celsius Degree
Dielectric Strength:	4000VAC 1mA 60s
Application:	Energy Meter
Accuracy Grade:	Class0.1, Class0.2

Product Description

Features
Adopted high pemeability core
High accuracy
Excellent linearity performance
Miniature size
Easy to install
DC immunity function

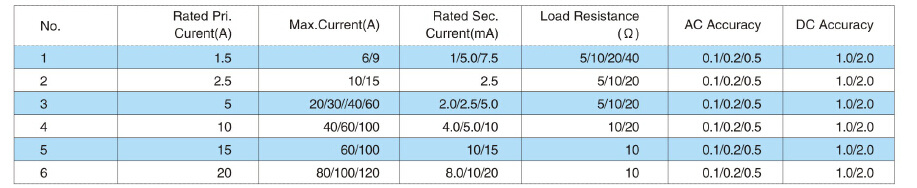

Specification

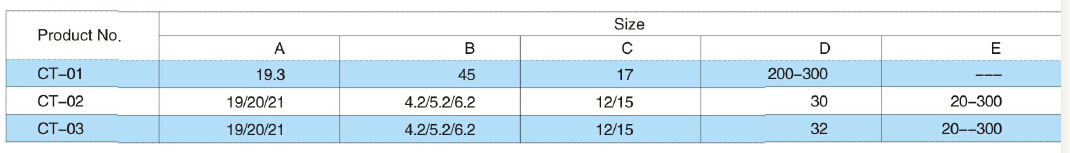

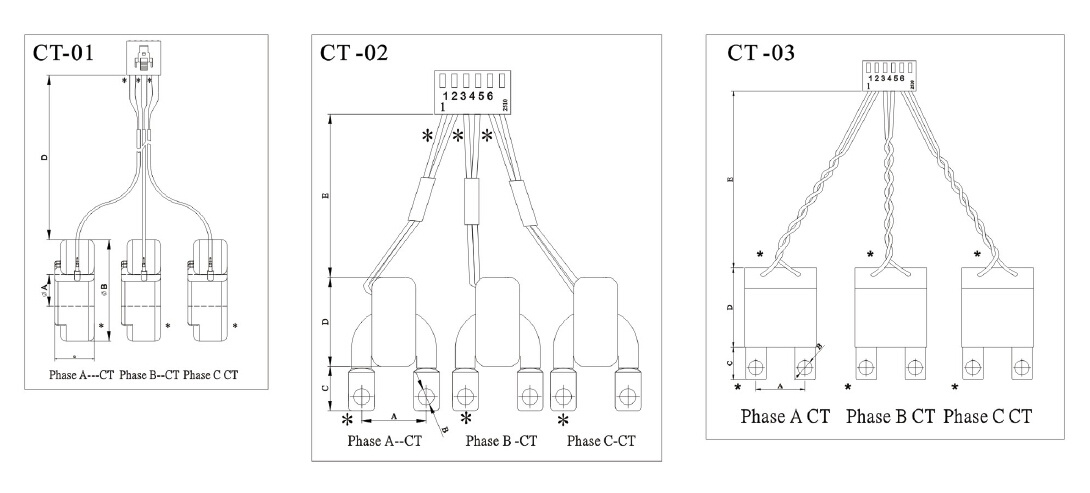

Dimension

Note:
Please browse our website and download product catalogue for detailed information.
