| Prod Model: |
JNT-100(S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Flow Rate: |
100m3/H |
| Overall Dimensions: |
4200X2200X3435(4635)Mm |
| Tower Body Height: |
2720mm |
| Fan Diameter: |
1800mmx1 |
| Air Volume: |
930m3/Min |
| Motor Type: |
Axial-Flow |
| Drive System: |
V-Belt |
| Motor Rate Output: |
4kw |
| Motor Power Source: |
3phase 220V/380V/440V |
| Casing: |
FRP |
| Usage: |
Refrigerator |
| Control Type: |
Mechanical |
| Type: |
Refrigeration Compressor |
| Certification: |
CTI and ISO |
| Material: |
FRP and HDG and Others |
| Cooling Purpose: |
Cooling Water Temperature |
| Brand: |
Jinling |
Product Description

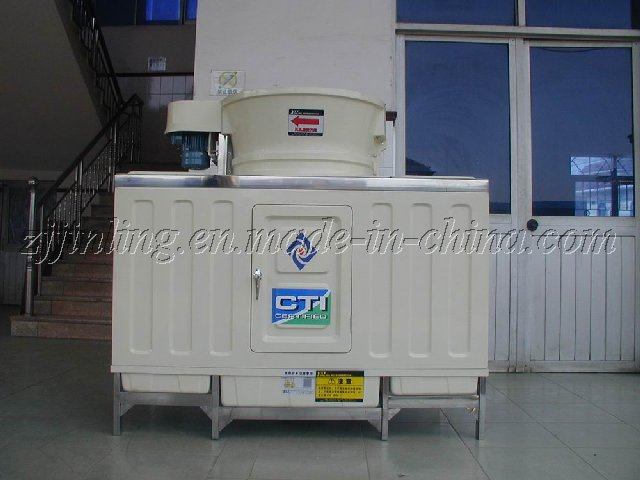

CTI Certified Cross Flow Rectangular Cooling Tower JNT-100(S)
Advantages:
1. Easy accessible driving system
2. CTI certified cooling tower
3. Patented(SX-COMB)fill desing
4. High efficient air-foil axial fan
5. Water distribution system
6. Signle piece casing basin
7. Rliable mainframe
8. Velocity recovery stack
9. Mechanical part
10. Factory assembled
11. Stainless steel strainer
12. Easy fill cleaning and replacement
13. Mechanical parts protection
14. Largest working platform
JNT Customer option
1. Automatic water lever control system
2. Low noise operation
3. Ladder, safety cage, external service platform and handrails
4. Vibration isolater
5. Vibration limit switch
6. Basin heater
7. High temperature fill
8. Variable speed drive
9. Corrosion resistant frame work
10. Chemical water treatment unit
11. Air inlet debris screen
Skey Specifications/Special Feature:
1. Materials: FRP panels, HDG framework and PVC infill
2. With low noise or ultra
3. Used all over the world
Delivery Details:
1. FOB Port: Ningbo or Shanghai
2. Lead Time: 30-45 days.
| Model | Unit | Performance Index for JNT Series CTI Certification Cooling Tower |
| JNT-80(S) | JNT-100(S) | JNT-125(S) | JNT-150(S) | JNT-175(S) | JNT(S)-200 | JNT-225(S) | JNT-250(S) | JNT-300(S) | JNT-350(S)/D | JNT-400(S)/D | JNT-450(S)/D | JNT-500(S)/D |
| Water Flow Rate | M3/H | 80 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | 350 | 400 | 450 | 500 |
| Heat Load | Kcal/h | 400000 | 500000 | 62500 | 750000 | 875000 | 1000000 | 1125000 | 1250000 | 1500000 | 1750000 | 2000000 | 2250000 | 2500000 |
| Water Inlet Temp | ºC | 37 |
| Water Outlet Temp | ºC | 32 |
| Wet Bulb Temp | ºC | 28 |
| Length(L) | MM | 4200 | 4400 | 4800 | 5200 | 5200 | 4400 | 4800 | 5200 |
| Width(W) | MM | 2200 | 4400 | 2800 | 2800 | 4800 | 5600 |
| Overall Height | MM | 3435(4635) | 3485(4685) | 3585(4785) | 3640(4840) | 3640(4840) | 3485(4685) | 3585(4785) | 3640(4840) |
| Tower Body Height | MM | 2720 | 2820 | 2820 | 2720 | 2820 |
| Fan Diameter | MM | 1800X1 | 2000X1 | 2400X1 | 2400X1 | 2000X2 | 2400X2 |
| Fan Air Volume | M3/MIN | 744 | 930 | 1163 | 1395 | 1628 | 1860 | 2093 | 2325 | 2790 | 3255 | 3720 | 4185 | 4650 |
| Fan Type & Drive System | Axial-Flow & V-Belt |
| Motor Type | Total Enclosed Fan-cooled/3Phase/4-Pole |
| Motor Power Source | 3Phase220V/380V/440V |
| Motor Rate Output | KW | 2.2X1 | 4X1 | 4X1 | 5.5X1 | 5.5X1 | 7.5X1 | 7.5X1 | 11X1 | 5.5X2 | 5.5X2 | 7.5X2 | 7.5X2 | 11X2 |
| Casing | FRP |
|
|
|
|
|
|
| Framework | STEEL(Hot Dip Galvanized) |
|
| Fill/Eliminator/Louver | PVC |
| Distrbution Bsin | FRP |
| Cold Water Basin | FRP |
| Fan | AL-ALLOY or Eq |
| Fan Stack | FRP |
| Nozzle | P.P |
| Water Inlet Piping | 100AX2 | 125AX2 | 150AX2 | 150AX2 | 125AX4 | 150AX4 |
| Water Outlet Piping | 150AX1 | 200AX1 | 250AX1 | 250AX1 | 200AX2 | 250AX2 |
| Drain Piping | 50AX1 | 65AX1 | 80AX1 | 80AX1 | 65AX2 | 80AX2 |
| Over Flow Piping | 50AX1 | 65AX1 | 80AX1 | 80AX1 | 65AX2 | 80AX2 |
| Make-Up(Auto) Piping | 32AX1 | 40AX1 | 50AX1 | 50AX1 | 40AX2 | 50AX2 |
| Make-Up(Manual) Piping | 32AX1 | 40AX1 | 50AX1 | 50AX1 | 40AX2 | 50AX2 |
| Evaporation | % | 0.833 |
| Drigt Loss | % | ≤0.005 |
| Shipping Weight | kg | 1000 | 1010 | 1200 | 1210 | 1450 | 1460 | 1600 | 1610(1630) | 2420(2440) | 2900(2920) | 2920(2940) | 3200(3220) | 3220(3240) |
| Operating Weight | Kg | 2180 | 2380 | 2850 | 2860 | 3200 | 3250 | 3620 | 3650(3670) | 5720(5740) | 6400(6420) | 6500(6500) | 7240(7260) | 7300(7320) |
| Remark:The cooling tower can be made-to-measure according to customer`s design conditions and special requirements. "S": Super Low Noise Type. "UL": Super Ultre-Low Noise Type. "D": Double Fans. |
