CT Split Core Current Transformers Https Selinc COM Products CT

Name: CT Split Core Current Transformers Https Selinc COM Products CT
Brand: all-electronics-online.com
SKU: 723297422
Availability: InStock
Rating: 5 (145 reviews)

Price:	US $ 10-100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-16
Standards:	IEC/En60044-1 & IEC61010-1 & IEC61869-2
Ratio:	1000: 1 or 2000:1 , Customized
Overload Withstand:	1.2 Times Rated Current Continuously
Accuracy:	0.2%, 0.5 %, 1%
System Voltage:	720V(0.72kv)
Output Signal:	10mA-200mA AC Optonal 333mv AC or 100mv-2V Optonal
Frequency Range:	40 Hz-500 Hz
Max. Jaw Opening:	16 mm
Dimensions (W×d×h) (mm):	38mm X 55mm X 18 mm
Weight (G):	60
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

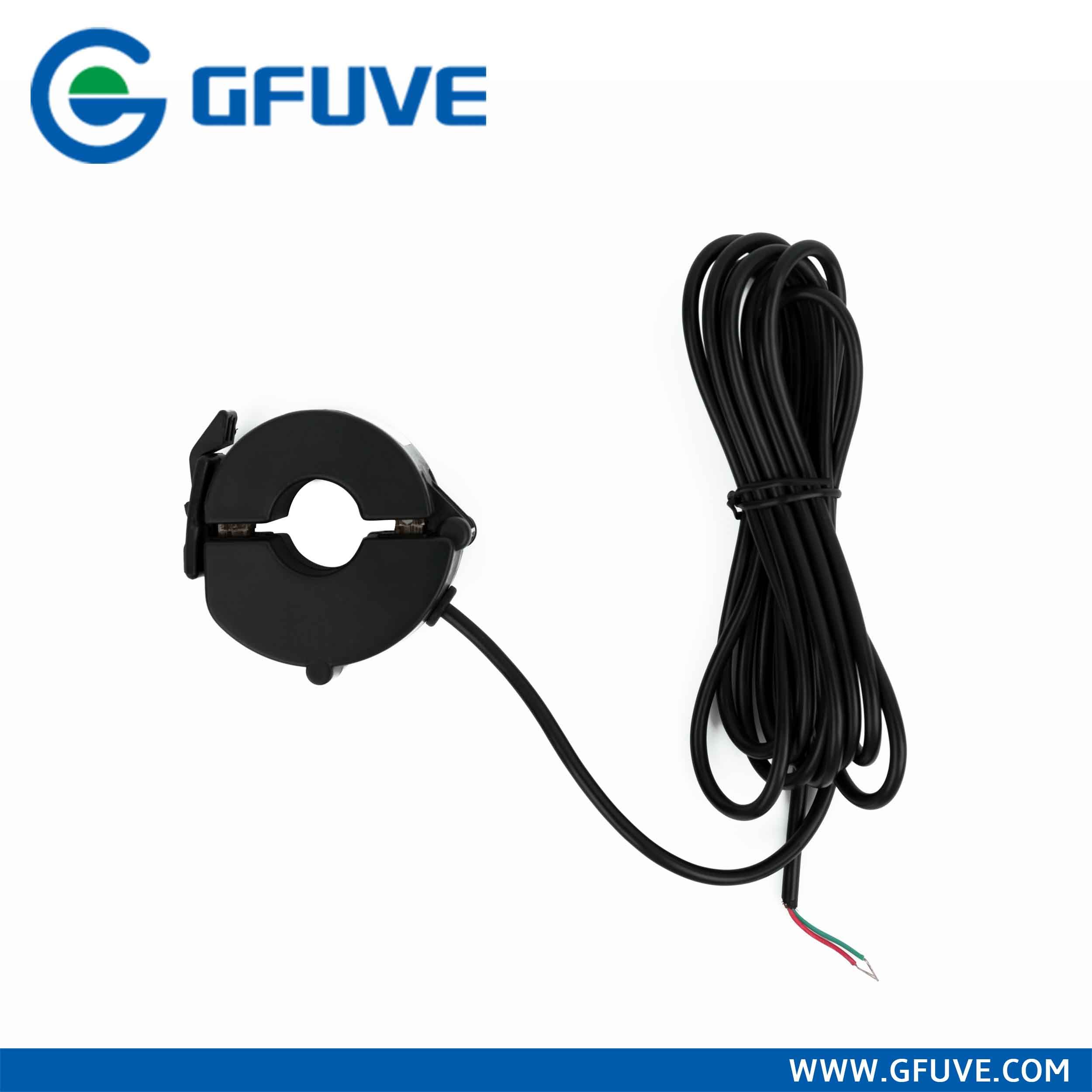

FU-16 ct split core current transformers https selinc com products ct

FU-16 series of split-core current transformer oﬀers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 series to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to oﬀer safe, fast and cost eﬀective installation.

Features

Applications

1. Most cost-eﬀective
2. Faster installation
3. Safe and easy installations
4. High accuracy 0.5
5. Holding wire diameter: φ16mm
6. Measurement range of 1mA to 200A AC
7. Low phase shift for power measurement
8. Output model: Lead output(2.5m)
9. Isolated plastic case recognized according to UL94-V0
10. Small-size, compact size, light-weight
11. Over-Voltage protection circuit is installed.
12. UL / EN 61010 - 1 certiﬁed

1. Power meter and harmonic meters
2. Energy meter (kWh meter)
3. Recorders, loggers, oscilloscopes
4. Power quality monitoring
5. Switchgear
6. Distributed measurement systems
7. General Sets
8. Control panels

Ordering information

Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special speciﬁcations could be customized. All kinds of diﬀerent speciﬁcations and parameters current transformers can be made according to your needs.

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
