| Prod Model: |
HSYV-5E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Single Strand Bare Solid Copper Wire, PE Insulatio |
| Flame Resistance Level: |
Cmx. Cm, MP, Cmg, Mpg, Cmr, Mpr |
| Conductor Od: |
0.48mm |
| Rated Temperature: |
75 Degrees Centigrade |
| Standards: |
UL444, Tia/Eia568b, ISO/IEC11801 |
| 1.0`100.0MHz Impedance(Ohms): |
100+/-15 |
| 1.0~350.0MHz Delay Skew(Ns/100m): |
|
| 20c Conductor D.C, Resistance(Ohms/Km): |
|
| Unbalance Of Pair(%): |
|
| Flame Resistant Type: |
Cmx. Cm, MP, Cmg, Mpg, Cmr, Mpr |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Cat5e |
| Model: |
Hsyv-5e |
| Brand: |
Simpact/ Skton/ Taikeyongxing/ OEM |
Product Description
Established in 2005, Simpact is a Guangzhou-based manufacturer of LAN Cable, Optical Fiber, Telecommunication Cable and Speaker Cable for the Security, Telecommunication, Data and Voice markets. Over the last decade, Simpact has expanded our production area to 15,000 square meters with average monthly outputof 5,110,351 meters.
At Simpact, quality is our number one priority. As an ISO 9001, UL,CE and RoHS certified manufacturer,we pride ourselves in the steps that we have taken to design and implement a successful quality program, ensuring superior products and service.
We have CTS-650M Symmetrical Digital Cable Testing System, which provides the most reliable and accurate solutions available for testing high performance 4 pair symmetrical digital cables(CAT5, CAT5e, CAT6, CAT7, CAT8).
You can get the most reliable report of each item you purchase from us.

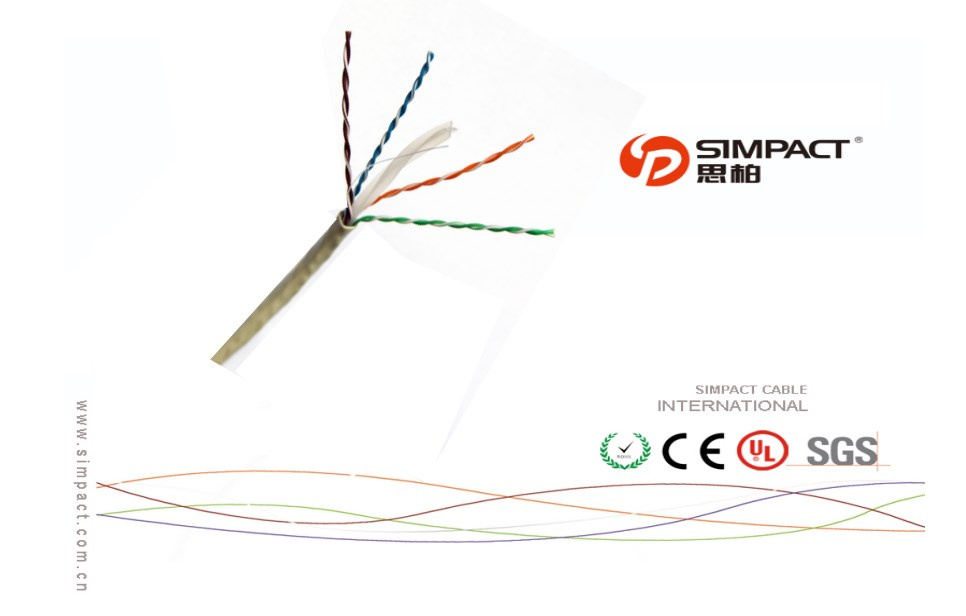

Structure: Single strand bare solid copper wire, PE insulation, two insulated conductors twisted to be one pair
Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.
Electrical Characteristics:
| Frequency | RL | SRL | ATTEN | NEXT | PSNEXT | ELFEXT | PSELFEXT | DELAY |
| (MHZ) | (db) | (db) | (db/100m) | (db/100m) | (db/100m) | (db/100m) | (db/100m) | (ns/105700m) |
| 0.772 | 16.7 | 25.2 | 2.0 | 68.9 | 67.5 | 68.0 | 69.2 | 560 |
| 1 | 18 | 28.0 | 2.0 | 66.2 | 64.9 | 65.4 | 65.4 | 554 |
| 4 | 19.8 | 28.0 | 4.0 | 57.9 | 57.2 | 53.7 | 54.8 | 545 |
| 8 | 20.8 | 27 | 5.2 | 56.2 | 55.0 | 49.0 | 50.3 | 544 |
| 10 | 22 | 25.0 | 6.2 | 51.9 | 48.3 | 44.7 | 44.7 | 542 |
| 16 | 22 | 26.0 | 7.9 | 49.5 | 46.3 | 42.5 | 42.5 | 540 |
| 20 | 22 | 26.2 | 8.6 | 47.2 | 44.5 | 40.2 | 39.8 | 539 |
| 25 | 20.2 | 26.5 | 9.7 | 45.9 | 42.9 | 37.3 | 37.3 | 536 |
| 31.3 | 19.6 | 25.8 | 16.5 | 41.2 | 38.2 | 30.9 | 30.9 | 536 |
| 62.5 | 18 | 25.7 | 21.2 | 38.4 | 34.8 | 25.6 | 25.6 | 535 |
| 100 | 17 | 22.4 | 18.7 | 32.8 | 28.6 | 22.6 | 23.7 | 533 |
Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.
Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.
Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.
