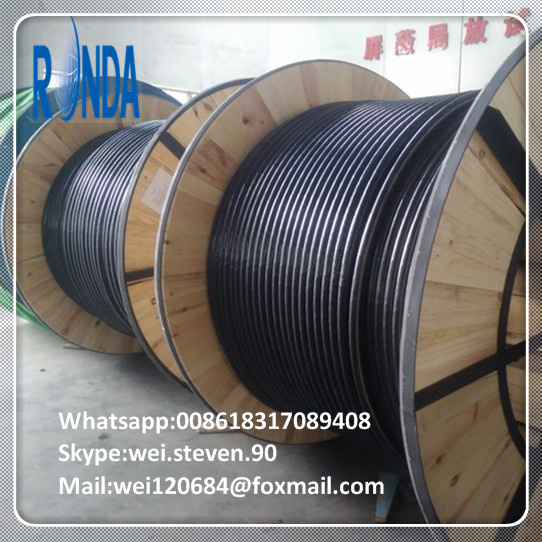

Name: Copper Core XLPE Insulated PVC Sheathed Electrical Cable Electric Cable
Brand: all-electronics-online.com
SKU: 820222295
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Colour:	Customized
Application Standard:	IEC60502, IEC60228
Core:	Copper
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	CV
Brand:	Ronda

Product Description

Copper Core XLPE Insulated PVC Sheathed Electrical Cable Electric Cable

1.Application
This cable is used as power distribution and transmission line at rated voltage 0.6/1KV which can be fixed installed.

2.Service Characteristics
1.The long time working temperature of the conductor should not be higher than 90 ºC
2.When conductor is in short-circuit (max. 5s), the conductor temperature should not higher than 250ºC.
3.While installation the ambient temperature should not be lower than 0 ºC and the bending radius should not be less than 10 times of outer diameter of cable.

3.Model & Name

Available model upon request as below.

Products Name	Model
Copper Core XLPE Insulated PVC Sheathed Electric Cable (Cu/XLPE/PVC) Aluminum Core XLPE Insulated PVC Sheathed Electric Cable (Al/XLPE/PVC)	YJV YJLV
Copper Core XLPE Insulated Steep Tape Armoured PVC Sheathed Electric Cable (Cu/XLPE/PVC/STA/PVC) Aluminum Core XLPE Insulated Steep Tape Armoured PVC Sheathed Electric Cable (Al/XLPE/PVC/STA/PVC)	YJV₂₂ YJLV₂₂
Copper Core XLPE Insulated Steep Wire Armoured PVC Sheathed Electric Cable (Cu/XLPE/PVC/SWA/PVC) Aluminum Core XLPE Insulated Steep Wire Armoured PVC Sheathed Electric Cable (Al/XLPE/PVC/SWA/PVC)	YJV_32,42 YJLV_32,42

Note: Low smoke Zore Halogen, Flame Retardant, copper screened type are also available upon request.

4.Technology Property
5.1 Bending Radius
Single Core Cable Permitted Bending Radius=20 (d+D)±5%
Multi Cores Cable Permitted Bending Radius=15 (d+D)±5%
D=Outer Diameter Of Cable (mm)
d=Outer Diameter Of Conductor (mm)

5.2 Installation Temperature
Preheat is required when temperature is lower than 0ºC

5.3 Installation Drop
Cable Installation is not limited by level drop.
