Product Description

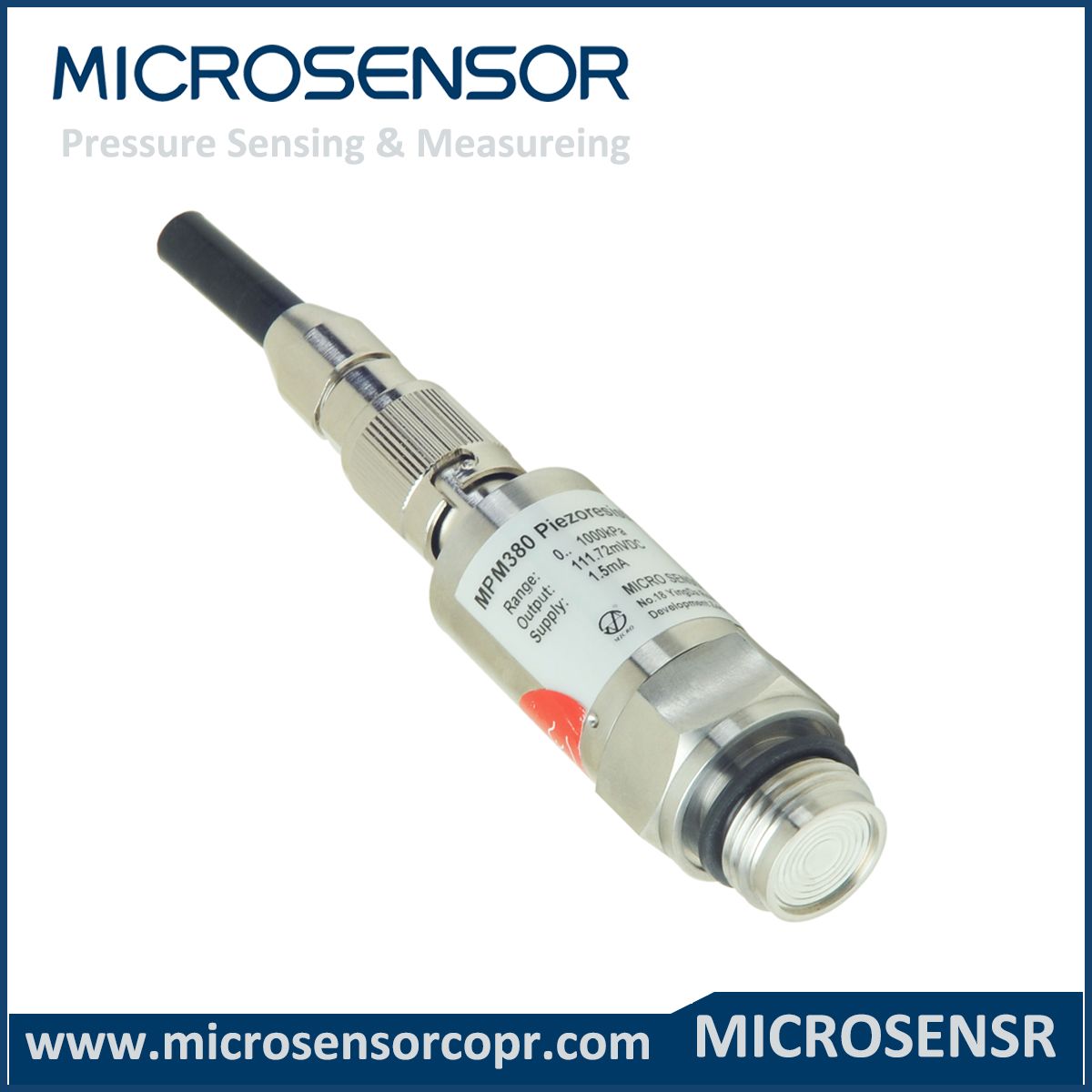

Constant Current Supply Pressure Transducer MPM380
Features:
1. Full stainless steel construction;
2.Thread connection optional;
3. Constant current supply;
4. Laser trimming compensating zero and FS thermal error;
5. Using high reliable and stable solid piezoresistive pressure cell;
6. Cable connection or plug connection
Application
1.Food
2.Medicine
3.Sanitation etc.
Specifications:
| @1.5mADC,25ºC |
| Pressure range | -0.1MPa0~20kPa100MPa |
| Overpressure | 1.5 times FS or 110MPa (min.value is valid) |
| Power supply | 1.5mADC |
| Signal | ≥70mVDC(0~20kPa,≥50mVDC) |
| Accuracy | ±0.1%FS(min.) ±0.25%FS(typ.) ±0.5%FS(max.) |
| Long-term stability | ±0.3%FS/year |
| Compensation temp. | 0ºC~50ºC |
| Operation temp. | -10ºC~80ºC |
| Storage temp. | -40ºC~100ºC |
| Zero temp. coefficient | ±0.02%FS/ºC(typ.) ±0.04%FS/ºC(max.) |
| FS temp. coefficient | ±0.02%FS/ºC(typ.) ±0.04%FS/ºC(max.) |
| Housing | Stainless steel 1Cr18Ni9Ti |
| Diaphragm | Stainless steel 316L |
| O-ring | Viton |
| Cable | Polythene |
| Response time(10%~90%) | ≤1ms |
| Insulation resistance | 100MΩ,100VDC |
| Production | IP65(cable connection) |
Order guide:
| MPM380 | Piezoresistive Pressure Transducer |
| | | Code | Pressure range | Ref. | Code | Pressure range | Ref. |
| 0B | 0~20kPa | G | 12 | 0~2MPa | G, A |
| 0A | 0~35kPa | G | 13 | 0~3.5MPa | G, A, S |
| 02 | 0~70kPa | G, A | 14 | 0~7MPa | A, S |
| 03 | 0~100kPa | G, A | 15 | 0~10MPa | S |
| 07 | 0~200kPa | G, A | 17 | 0~20MPa | S |
| 08 | 0~350kPa | G, A | 18 | 0~35MPa | S |
| 09 | 0~700kPa | G, A | 19 | 0~70MPa | S |
| 10 | 0~1000kPa | G, A | 20 | 0~100MPa | S |
| | | Code | Pressure type |
| G | Gauge |
| A | Absolute |
| S | Sealed gauge |
| | | | Code | Electric connection |
| I | Plug connection |
| II | Cable connection |
| | | Cable length(m) | 1.5m cable is free of charge; the extra cable should be paid additionally. |
| | | Code | Pressure port |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male |
| C1 | M20×1.5 male, face type seal |
| C5 | M20×1.5 male, watline seal |
| | |
| MPM380 10 G II 5 PC1 the whole spec |
| | | | | | | | | | | | | | | | |
