Prod Model: |
coban Vehicle GPS Tracker tk105 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
Ce FCC |
Warranty Time: |
1 Year |
Network: |
GSM/GPRS |
Weight: |
170g |
Size: |
85*71*26mm |
Car Tracking Security: |
Shut Car Engine,Unlock/Lock Car Door,Speed Limiter |
Optional Functions: |
Fuel Monitor, Camera, RFID, Central Lock |
Dual GPRS Communication: |
TCP UDP |
Speed Limited Function: |
Speed Limited Mode |
Real Time GPRS Tracking Platform: |
with Android Ios APP |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
GPS Position and GSM Transmit Data |
Port Number: |
20 |
Model: |
Vehicle Coban GPS Tracker Tk105 |
Screen Size: |
No Screen |
Chip: |
No |
Brand: |
Coban-GPS Tracker Manufacturer |
Certification: |
ISO9001 |
Product Description

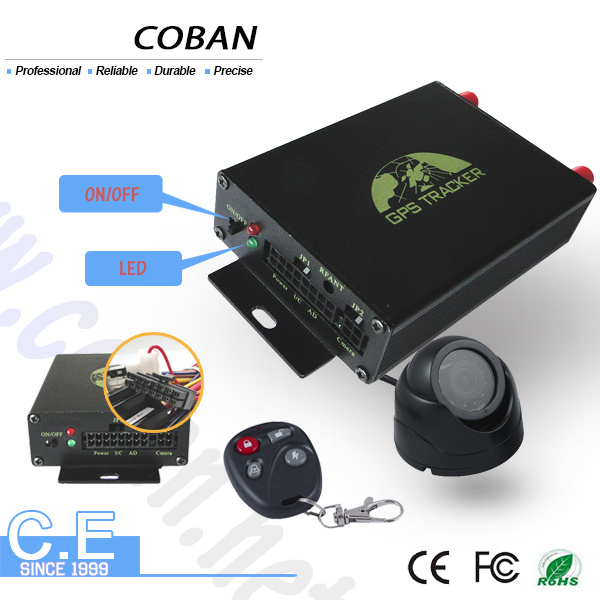

Coban Vehicle GPS Tracker Support Camera and Speed LimiterBasic functions:
1, Real time tracking via SMS or GPRS (TCP/UDP)
2, Track on demand
3, Show location directly on mobile phone for HTTP link
4, Track by time interval
5, Five authorized phone number to protect tracker information and assets
6, Voice Surveillance
7, Easy switch for track or Monitor mode
8, Low battery alarm
9, Power off alarm
10, SOS button for emergency
11, Geo fencing control
12, Over speed Alarm
13, Power -cut and restore alarm by SMS GPRS
14, Engine -cut and restore alarm by SMS GPRS 15. Speed recording
16. Speed limited mode
17. Mileage report
18. Maintenance notification
19, Door, ACC, Shock, Fuel alarm, Temperature alarm get by SMS
20, Arm or disarm to protect the car more convenient and safe
Applicability: Used widely for positioning and tracking vehicle and other moving objects.
Vehicle GPS Tracker TK105 specification Content | Specifications |
DIM | 85*71*26mm |
Weight | 170g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GSM/GPRS Module | CB900 |
GPS Module | NS1315 chip |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start Time | Cold status 45s Warm status 35s Hot status 1s |
Applicable vehicle power | 12 V -24V |
Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
Storage Temp | -40° C to +85° C |
Operation Temp. | -20° C to +65° C |
Humidity | 5%--95% non-condensing |
Tracking Solutions-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. -Get absolute address by SMS-Android IOS app tracking -Web server online tracking. Capable of monitor 10,000 objects( www.gpstrackerxy.com,ID :demo,password :8888)
![](/proimages/44f3j00naGEtliWTVqQ/coban-vehicle-gps-tracker-support-camera-and-speed-limiter.jpg)

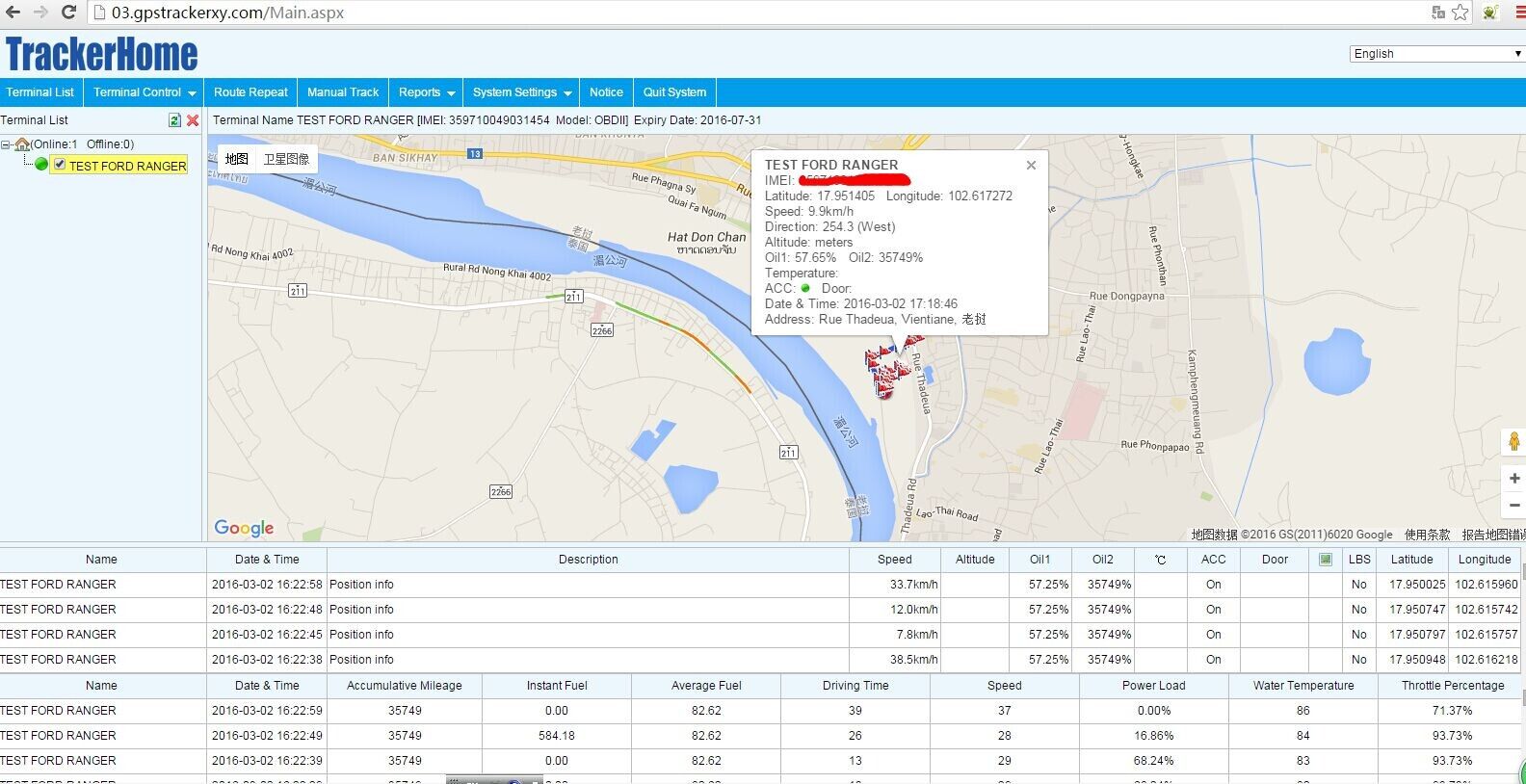

App tracking

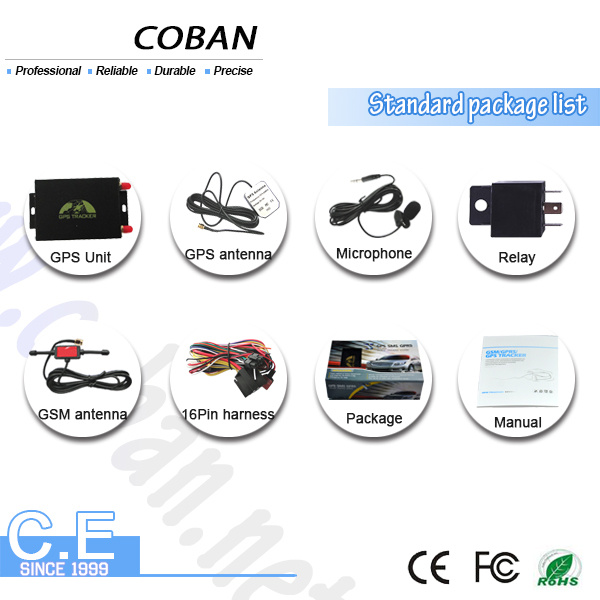

GPS vehicle tracker TK105 A standard accessories
More details including E-user manual,photos will be sent after receive your inquiry
