| Prod Model: |
HTW-21-H18 |
| Backlight: |
Green or White Optional |
| Output Current: |
3A or 10A or 16A Optional |
| Temperature Unit: |
Fahrenhait or Centigrade.(Optional) |
| Power Supply: |
100~250VAC 50/60Hz, 24VAC Optional |
| Output: |
on/off or Modulating or Floating Optional |
| Installation: |
86 or EU Standard Junction Box |
Product Description
General

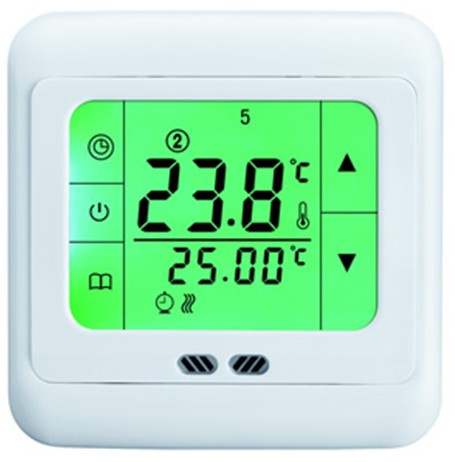

Climate Touch Screen Programmable Thermostat replace Honeywell wifi (HTW-21-H18) series are a type of thermostat with large, touchable LCD, which is fit for room heating, and controlling the actuator for water system and electric heating devices. With our thermostat, you can enjoy a cosy and comfortable living environment.
The HTW-21-H18 thermostat is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.The thermostat acquires the actual temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected set point.
It is for the control of warm-water( floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...

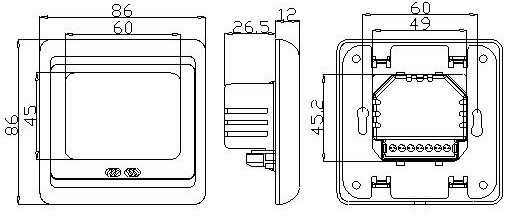

The HTW-21-H18 thermostat equipped with extremely small junction box and simple installation, is suitable for wall box all over the world.
Product Features:
•On/off control output for heating device
•Symbol indicator when heating is on
•Temperature limitation function for protecting the wooden floor
•Current room temperature displaying when the thermostat is switched-off
•"Key-lock" function for protecting the setted parameters( especially suitable for Public Places)Technical
Parameters
•Voltage: AC85-230V( AC110V/ AC24V available )
•Multi. periods programmable (5+2/6+1/7)
•Control mode:heating
•Power consumption: 15W
•Setting range: 5°c~40°C
•Limitation range: 4~40°c
•Switching differential: ±0.2K
•Ambient temperature: -5~40°C
•Protective housing: IP20
•Housing material: self-extinguishing PC
•Floor sensor: rubber-thermoplastic NTC sensor, cable length is 3m
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...

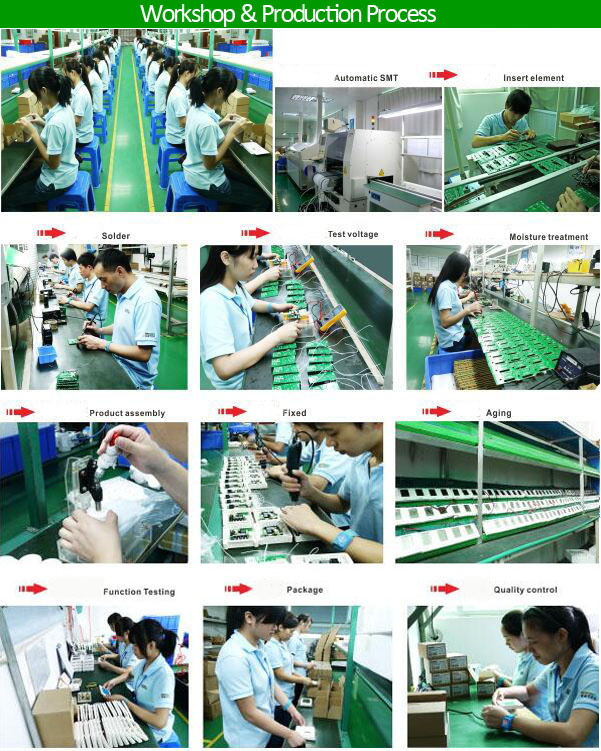

HOTOWELL International Co., Limited is an innovative and modern medium-sized enterprise, the company is headquartered in Xiamen (China/Fujian). Hotowell was found to offer our customers mature top technology. Our creative potential and our manufacturing and development know how are the basis for innovative products. Since the company was founded, HOTOWELL International Co., Limited has continuously developed itself into a market leading enterprise in the HVAC Automation / Building Automation. Our products mainly applied for industrial, commercial and residential temperature control.
Our product range contains:
Thermostats, Motorized Zone Valves, Water Flow Switches, Proportional Valves, Balancing Valves, Differential Pressure Transmitters, PIR Motion Sensors, Fan Controllers, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.
HOTOWELL products are designed and used as field control products to be integrated with HVAC control systems such as:
BAS = Building Automation System
BMS = Building Management System
BEMS = Building Energy Management System
BAMS = Building Automation Management Systems
HVAC controls = Heating, Ventilation and Air Conditioning controls

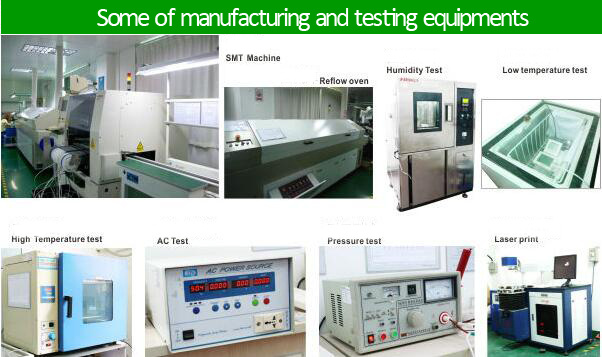

Our objective is to develop, produce and design user-friendly products on the highest technical level. We place great value on always meeting the requirements of the latest technical standard. In this process we take the utmost care in complying with quality and safety standards and thus ensure a long service life for our products. Products that satisfy rigorous quality requirements can only be manufactured through modern manufacturing methods. Satisfaction of all safety and environmental guidelines is a matter of course for us.
Our Products save money and protect the environment!
*********************************************************************************************************
