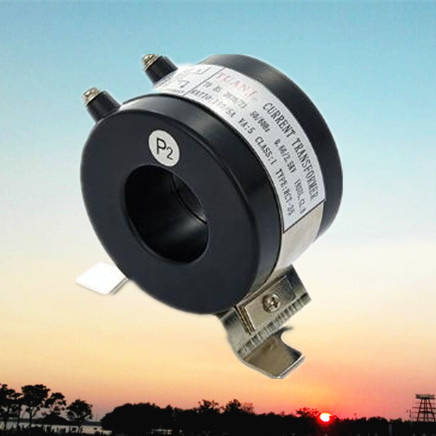

Class 0.5 Class1.0 Ring Type Current Transformer (RCT-35)

Name: Class 0.5 Class1.0 Ring Type Current Transformer (RCT-35)
Brand: all-electronics-online.com
SKU: 731222432
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 1.30-11/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RCT-35
Accuracy Class:	0.5, 1
Insulation Voltage:	0.72kv
Color:	Black
Coil Structure:	Toroidal
Primary Current:	5A-5000A
Secondary Current:	1A, 5A
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single
Magnetic Circuit Structure:	Toroidal

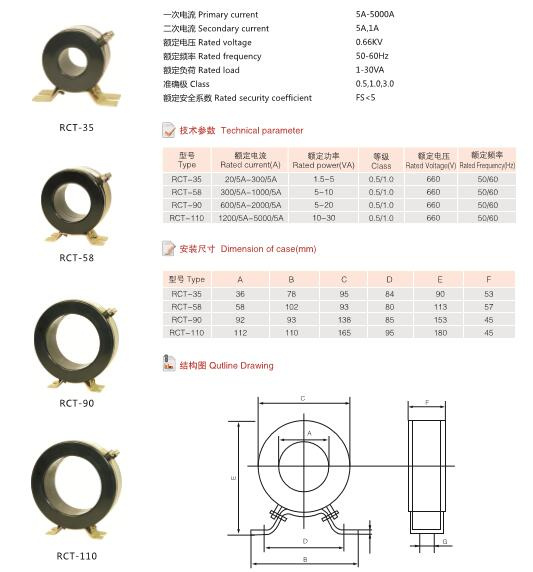

Product Description

Primary current :	5A-5000A
Secondary current l:	5A,1A
Rated voltage:	0.66KV
Rated frequency:	50-60Hz
Rated load:	1-30VA
Class :	0.5,1.0,3.0
Rated security coefficient:	FS<5

Technical parameter

Type	Rated current(A)	Rated power(VA)	Class	Rated Voltage(V)	Rated Frequency(Hz)
RCT-35	20/5A-300/5A	1.5-5	0.5/10	660	50/60Hz
RCT-58	300/5A-1000/5A	5-10	0.5/10	660	50/60Hz
RCT-90	600/5A-2000/5A	5-20	0.5/10	660	50/60Hz
RCT-110	1200/5A-5000/5A	10-30	0.5/10	600	50/60Hz

Current Range:300/5 to 1200/5
Class: Class 0.5 & Class1.0
Certificate: CE & IEC standard

No.	Parameters	Detail
1	Rated Frequency	AC50/60HZ
2	Rated Test Voltage	3kv AC(1min)
3	Rated short-time thermal current (Ith)	60In
4	Rated Voltage(Um)	0.72KV(AC)
5	Continuous Overload(Id)	1.2In
6	Operating Temperature	-10degreee to +50 degree
7	Housing self extinguishing class	VO
8	Safety Factor	FS 5
9	Seconday Current	5A/1A
10	Rated Dynamic Current	2.5Ith

1) be applied to test, control, display and record running of electrical equipment
2)to protect equipment against damage

RCT Current Transformer
CE,ROSH certificate
Primary current:5A-5000A
Class:0.5,1.0,3.0
Good quality ,Competitve price

RCT Current Transformer
