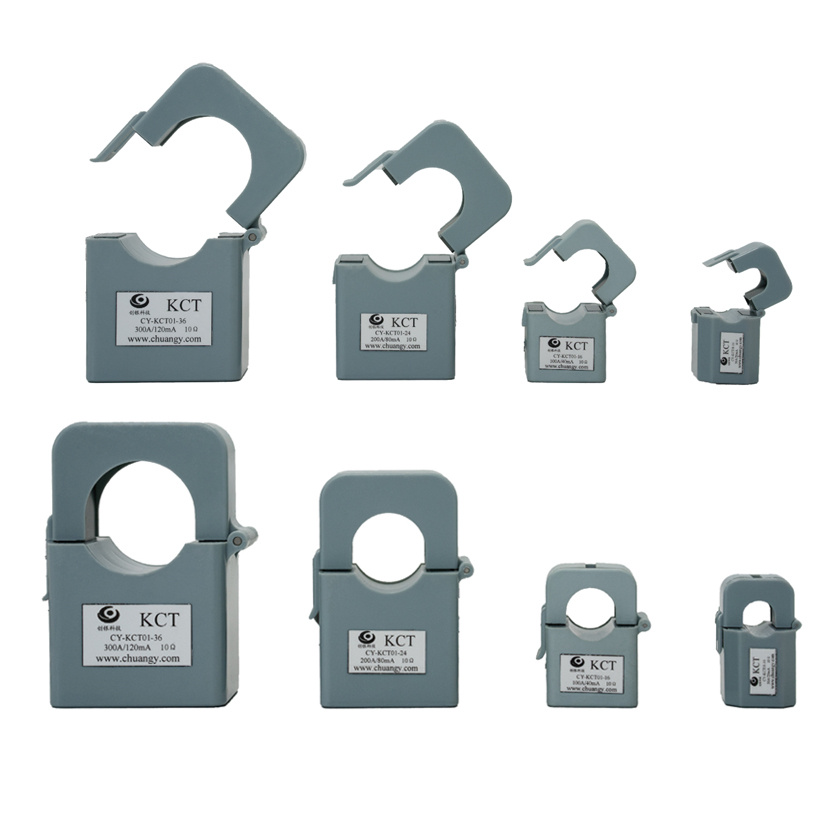

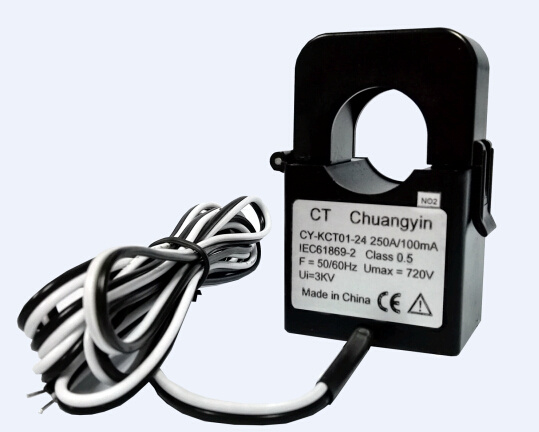

Chuangyin Split Core Current Transformer for Power Meter (Split Core CT CY-KCT01)

Name: Chuangyin Split Core Current Transformer for Power Meter (Split Core CT CY-KCT01)
Brand: all-electronics-online.com
SKU: 681136701
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 4.5-6/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-KCT01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turn Ratio:	2500:1
Insulation Class:	Cat III
Current Range:	1~50A,1~100A,1~200A, 1~300A(Rl=10)
Customized:	Customized
Type:	Split Core Current Transformer
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

Related :

Current Transformer for Power Meters

Hinged Split Core

hinged split-core current transformer

Toroidal (Solid Core) Current Transformers

toroidal current transformers

Rogowski Coil CTs

Split Core or Clamp-On CTs

Flexible Split-Core Current Transformer

Removable Leg Current Transformers

Flexible Split-Core Current Transformer

AC Voltage Output Split-Core Current Transformer

Ground Current Split Core CT

Rogowski Coil Current Transformer

AC Clamp-On Current Transformer

Split Core DC Current Transducer

Features:

.Low consumption with magnetic

.Delicate, exquisite and weightless, conveniently to install

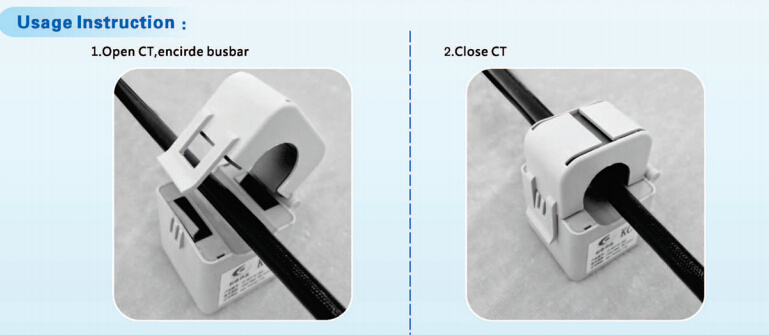

.Easily install. no need to disconnect primary busbar, measuring with power on, safety and convenient.

Typical Application:

.Multi function electricity energy meter and field calibrator, instruments

.Used in the measurement and protection in power system, while the mobility is strong or space is narrow or power system is uninterrupted.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
