Prod Model: |
311B |
Resolution: |
<10m(Range)--1mm; >=10m (Range)--1cm |
Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
Measurement Range: |
0~5m, 10m, 15m |
Operation Temperature: |
-25~55 Celsius |
Blind Area: |
0.25m~0.9m |
Indicator (Local Display ): |
6 Bits LCD Indicator |
Range: |
0~1m~30m |
Accuracy: |
0.2%Fs; 0.5 %Fs |
Measuring Medium: |
Water, Acids, Inks, Slurries |
IP Rating: |
IP66, IP67 |
Product Description

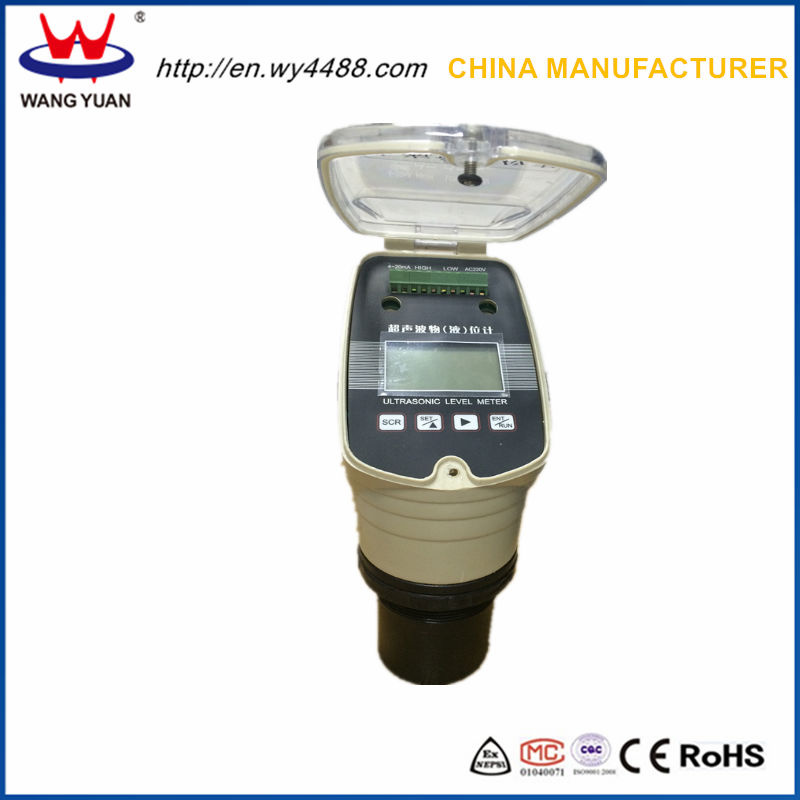

China Mini Ultrasonic Liquid Level SensorThese accurate and reliable sensors are designed for the most difficult fluids to monitor _ including ultrapure, dirty, coating, scaling or corrosive types.Typical Media:AcidsWastewaterInks and PaintsSlurriesFood and BeverageSemiconductor Process ChemicalsOils and Petroleum Distillates
Application:This series Shanghai wangyuan ultrasonic fuel level sensor can be used to measure various liquids or solids level, also measure distance in :

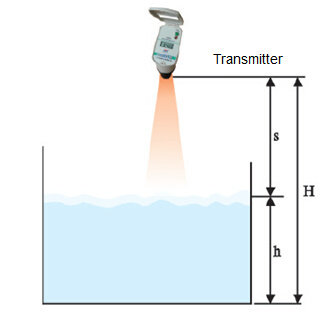

DescriptionWP380 series China Mini Ultrasonic Liquid Level Sensor are an intelligent non-contact level measuring instrument, which can be used in bulk chemical, oil, and waste storage tanks, and it's ideally suited for challenging corrosive, coating or waste liquids. This transmitter is broadly selected for atmospheric bulk storage, day tank, process vessel and waste sump application. Media: Ink, polymerWP380 series are easy to install and do not come in contact with the liquid.WP380 ultrasonic level meter uses sound waves to measure liquid or solid level. Fast, accurate Measurements are possible in the field or anywhere without the use of down-hole water level meters. The Ultrasonic Level Meters are lightweight, compact, versatile, and easy to operate. As long as the obstructions take up no more than half of the bore area the meter will not suffer any loss of accuracy.Features* Accurate and reliable sensing method
* Ideal technology for difficult fluids
* Sized and priced for most applications
* Easy to install-- simple to use
* Adopted SMD technology, improve meter's stability
* Auto-adjust power, enhance control and temp. compensation
* Advanced testing technology, rich software function, applied for various complicated environments
* New wave computing technology, enhance meter's measurement accuracy
* With suppression function of interfering echo, ensure the authenticity of measured data
* 16bits D/A transfer, enhance resolution and precision of current output
* TFE(terafluoroethylene) can be used for Transmitter, suitable for various environments with corrosion
* Output signals: 4-20mA (2wire)
* Explosion-proof type: Ex iaIICT6- Intrinsically safe comply with requirement of GB3836·4-83;
Ex dIIBT4-Flameproof comply with requirements of GB3836·2-83.
![](/proimages/44f3j00AQzEraUDqJol/china-mini-ultrasonic-liquid-level-sensor.jpg)
