| Prod Model: |
MPM280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Pressure Sensitive Sensor |
| Pressure Range: |
0~20kpa...35MPa |
| Pressure Type: |
Sealed Gauge,Gauge,Absolute |
| Overpressure: |
1.5 Times Fs |
| Compensated Temp: |
0~50c |
| Operation Temp: |
-40~125c |
| Storage Temp: |
-40~125c |
| Houisng: |
Stainless Steel |
| Impact: |
100g,11ms |
Product Description

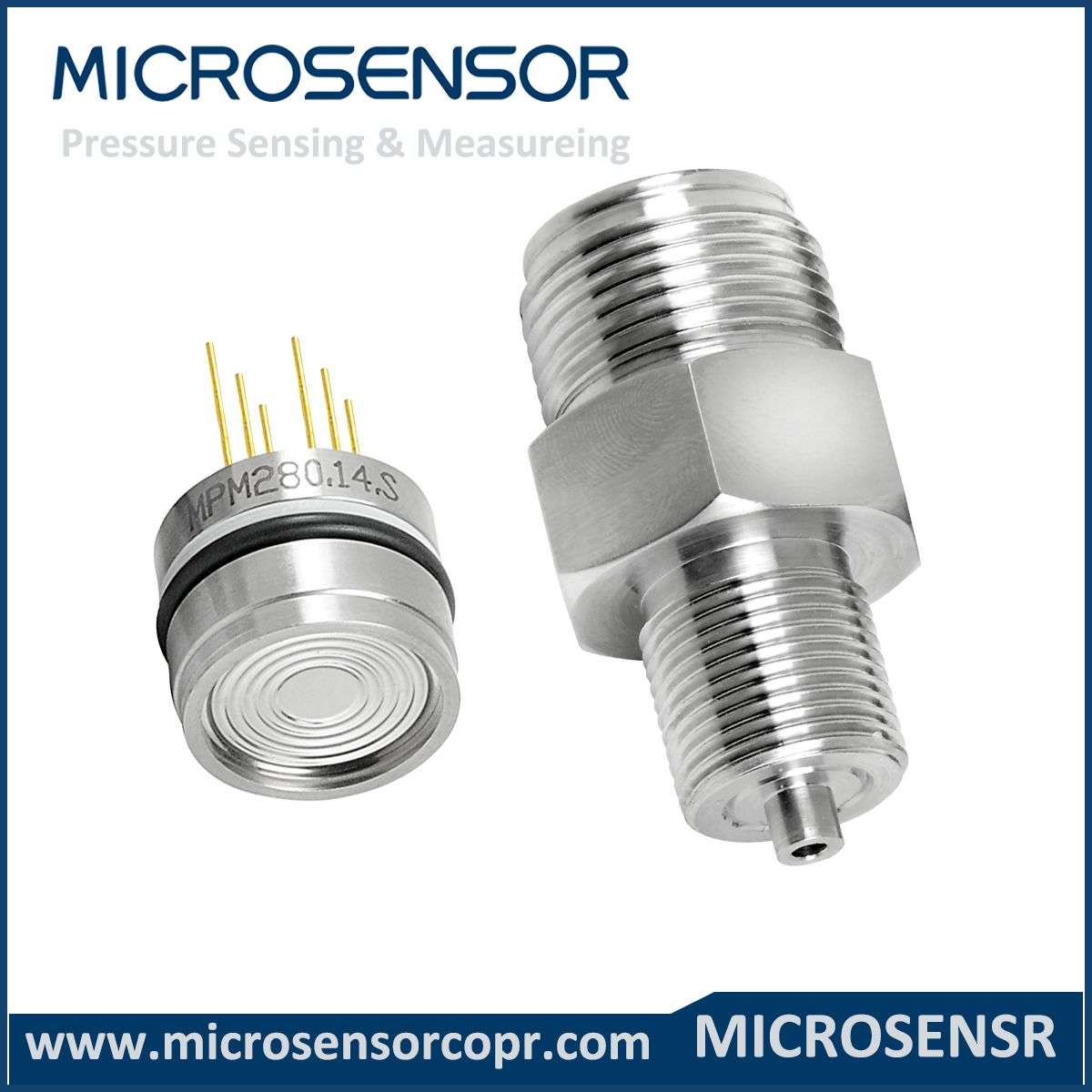

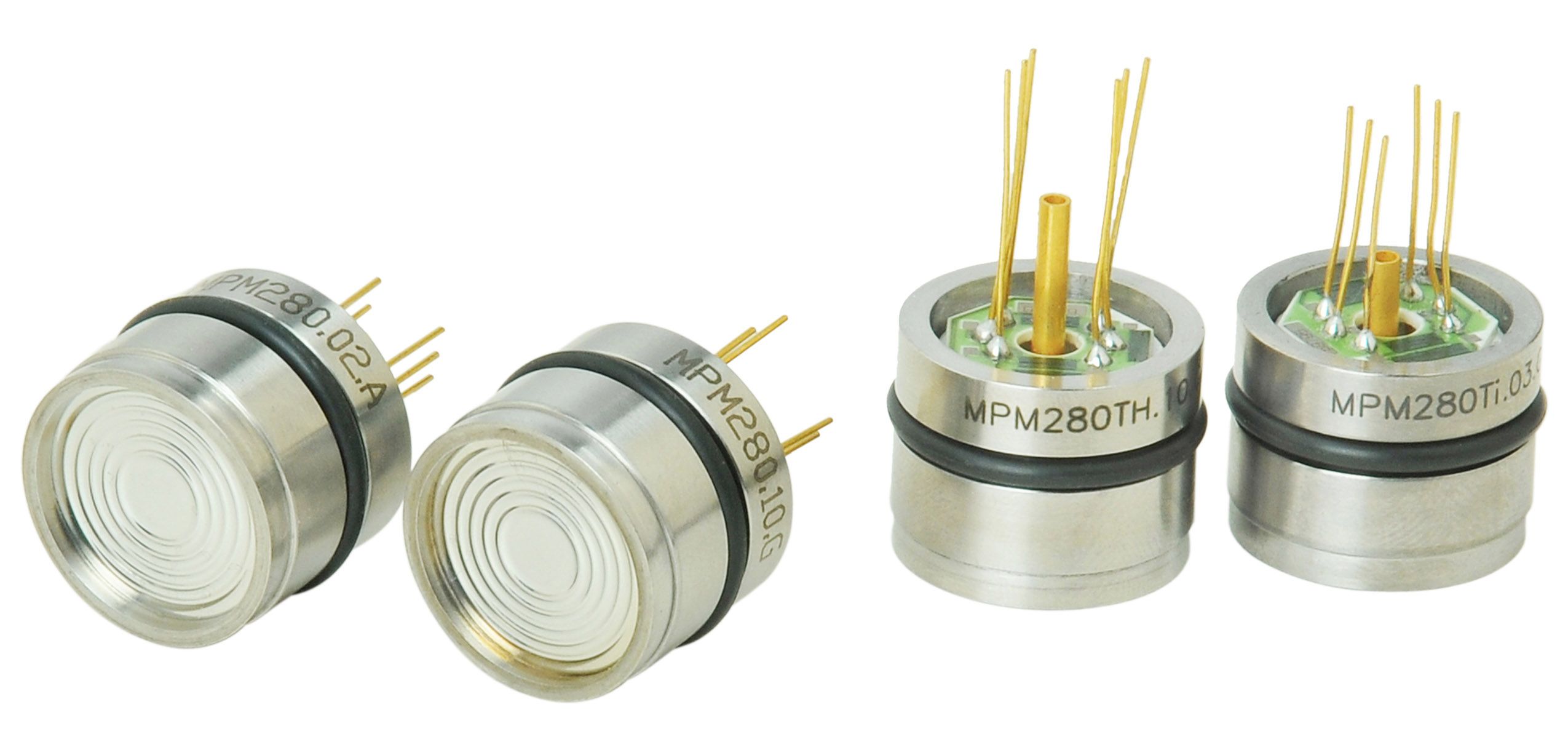

CE RoHS Certified Isolated Piezoresistive Pressure Sensor Mpm280
Features
Pressure range 0~20kPa...35MPa;
Gauge, absolute and sealed gauge;
Constant current power supply;
Isolated construction to measure various media
Φ 19mm OEM pressure element
Tantalum diaphragm or titanium construction for option;
Different male thread connection optional The outline, instalation dimension and sealing method of the general MPM280 is easily interchangable. It can be used for measuring pressure which is compatible with stainless steel and Viton;
MPM280 pressre sensor provides vacuum measurement, and the lowest pressure can be -100kPa. Electric Connection
Power supply: ≤2.0mADC
Electric connection: Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output: 50% of input (typ.)
Input impedance: 3kΩ~8kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%): <1ms
Insulation resistor: 100MΩ, 100VDC
Overpressure: 1.5 times FS
Construction Specification
Diaphragm: Stainless steel 316L Titanium TA1 (MPM280 Ti) Tantalum Ta (MPM280 TH)
Housing: Stainless steel 316L Titanium TC4 (MPM280 Ti) Hastelloy C (MPM280 TH)
Pin: Kovar
O-ring: Viton
New weight: ~ 23g (General)
~ 50g (Flush diaphragm)
~ 125g (Assembled)
~ 13.5g (MPM280 Ti)
Environment Condition
Position effect: deviate 90° from any orientation, zero change ≤0.05%FS
Shock: no change at 10gRMS, (20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the gas or liquid which is compatible with construction material and Viton
Working Condition
Media temperature: (25±1)°C
Environment temperature: (25±1)°C
Shock: 0.1g (1m/s/s) Max
Humidity: (50%±10%) RH
Local air pressure: (86 ~ 106) kPa
Power supply: (1.5±0.0015)mADC
| Item* | Min. | Typ. | Max. | Units | | Linearity | | ± 0.15 | ± 0.25 | %FS, BFSL | | Repeatability | | ± 0.05 | ± 0.075 | %FS | | Hysteresis | | ± 0.05 | ± 0.075 | %FS | | Zero output | | ± 1 | v2 | mVDC | | FS output** | 70 | | | mVDC | | Zero thermal error | | ± 0.75 | ± 1.0 | %FS, @25C | | FS thermal error | | ± 0.75 | ± 1.0 | %FS, @25C | | Compensated temp. range | 0~50 | C | | Working temp. range | -40~125 | C | | Storage temp. range | -40~125 | C | | Stability | | ± 0.2 | ± 0.3 | %FS/year | * testing at basic condition
**0AG, FS output ≥ 60mV
0BG, FS output ≥ 45mV
02A, 03A, 02GY, 03GY, FS output ≥ 50mV
07A, 08A, 07GY, 08GY, FS output ≥ 60mV |
|
Reference Condition:
Media temperature: (25± 1)C
Environment temperature: (25± 1)C
Shock: 0.1g (1m/s/s)
Max Humidity: (50%± 10%)RH
Local air pressure: (86~106)kPa
Power supply: (1.5± 0.0015)mADC |
Specifications:| Item* | Min. | Typ. | Max. | Units |
| Linearity | | ±0.15 | ±0.25 | %FS,BFSL |
| Repeatability | | ±0.05 | ±0.075 | %FS |
| Hysteresis | | ±0.05 | ±0.075 | %FS |
| Zero output | | | ±2 | mVDC |
| FS output** | 70 | | | mVDC |
| Zero thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
| FS thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
| Compensated temp. range | 0~50 | ºC |
| Working temp. range | -40~125 | ºC |
| Storage temp. range | -40~125 | ºC |
| Stability | | ±0.2 | ±0.3 | %FS/year |
*testing at basic condition,G: Gauge; A: Absolute; S: Sealed gauge
** 0AG, FS output ≥60mV
0BG, FS output ≥45mV
02A, 03A, 02GY, 03GY, FS output ≥50mV
07A, 08A, 07GY, 08GY, FS output ≥60mV |
Order guide:| MPM280(TS/TH/Ti)* | Piezoresistive OEM Pressure Sensor |
| | | Range code | Pressure range | Ref. | Range code | Pressure range | Ref. |
| 0B | 0~20kPa | G | 10 | 0~1MPa | G.A |
| 0A | 0~35kPa | G | 12 | 0~2MPa | G.A |
| 02 | 0~70kPa | G.A | 13 | 0~3.5MPa | G.S.A |
| 03 | 0~100kPa | G.A | 14 | 0~7MPa | S |
| 07 | 0~200kPa | G.A | 15 | 0~10MPa | S |
| 08 | 0~350kPa | G.A | 17 | 0~20MPa | S |
| 09 | 0~700kPa | G.A | 18 | 0~35MPa | S |
| | | Code | Pressure type |
| G | Gauge |
| A | Absolute |
| S | Sealed gauge |
| | | Code | Pressure connection | Installation |
| 0 or null | O-ring |
| 1 | Assembled M20x1.5 male,
waterline seal | Top: M24x1 male (P≤2MPa) |
| 2 | Assembled M20x1.5 male,
waterline seal | Top: M27x2 male |
| 3 | Welded M20x1.5 male,
waterline seal | Top: M24x1 male (P≤2MPa) |
| 4 | Welded M20x1.5 male,
waterline seal | Top: M27x2 male |
| PC1 | Flush diaphragm M20x1.5 male, | Top: M24x1 female |
| PC3 | Flush diaphragm G1/2 male, | Top: M24x1 female |
| | | Code | Compensation |
| L | Laser trimming |
| M | Outer compensated resistor (providing resistor value) |
| | | Code | Electric connection | |
| 1 | φ0.5mm Kovar pin | |
| 3 | 4-color flexible wire, default length:100mm | |
| | | | Code | Special measurement |
| Y | Gauge sensor to measure vacuum
(0~ -100kPa) |
| | | |
| MPM280 09 G 0 L 1 Y The whole spec |
| | | | | | | | | | | | | | | | | | | |
