| Prod Model: |
mpm416w |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~1...200m |
| Housing: |
Stainless Steel |
| Operation Temp: |
-10o C~80o C, Intrinsic Safe Version: -10~70 |
| Storage Temp: |
-40 C~100 C |
| Protection: |
IP68(Sensor Part), IP65(Wiring Part) |
| Ex-Proof Class: |
Exiaiict6 |
| Constrction: |
Seperated |
| Output Signal: |
4~20madc |
| Power Supply: |
15~28VDC |
| Diaphragm: |
Stainless Steel |
Product Description

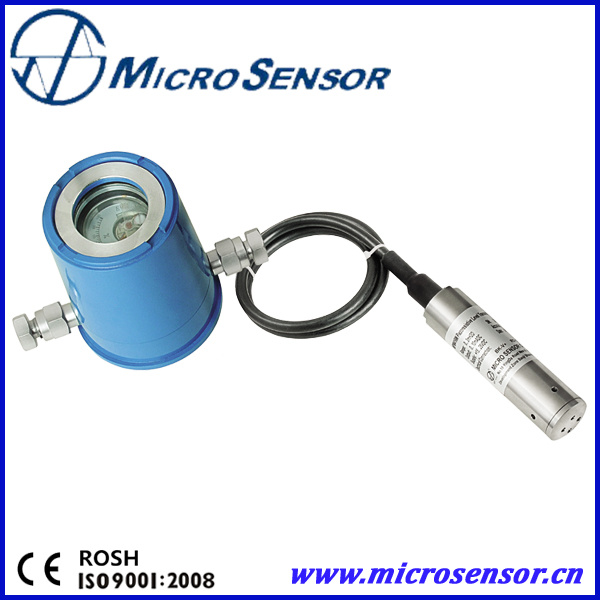

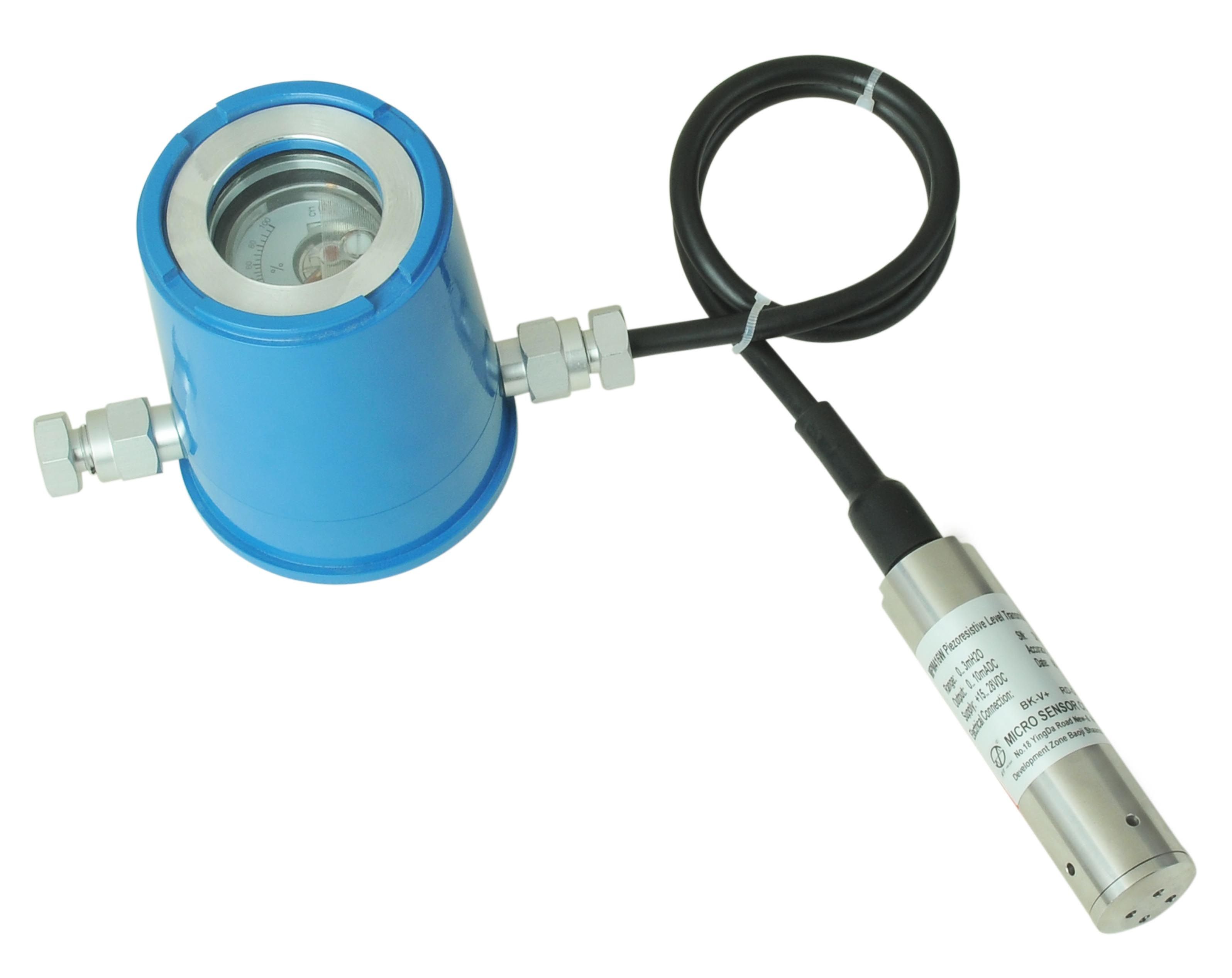

CE Approved MPM416W Level Transmitter with IP68
Features1. CE Approved
2. Full sealed stainless steel construction for submersible/inserted sensor
3. Aluminum-alloy electric connection box
4. Easy for installation, wiring and calibration
Description
MPM416WK has stainless steel tube protection, flange installation, local display and calibration;
MPM416WRK is full welded, stainless steel flexible tube armoured;
Explosion-proof version product conforms to ExiaIICT6 of Standard GB3836.4; Explosion-proof Certificate is issued
Use high performance piezoresistive pressure sensor as sensing elements. It measures liquid static pressure accurately which is positive proportional to liquid depth, transmitting pressure signal into standard current/voltage output signal by amplifier circuit board. The product has high accuracy, compact size and easy operation characteristics, for it can be submersible into the liquid to measure level from transmitter bottom to liquid surface. For the liquid measure and control of both petroleum, chemi-industry, power station, city water supply and drainage and hydrology, it is widely used.Principle:Piezoresistive Type
Specifications
| Pressure range |
MPM416W |
1, 2, 5, 10, 20, 50, 100, 200mH2O |
MPM416WK |
1, 2, 3, 4mH2O |
MPM416WRK |
1, 2, 5, 10, 20mH2O |
| Overpressure |
1.5times FS |
| Accuracy |
+0.25%FS(typ. ) +0.5%FS(max. ) |
| Stability error |
+0.1%FS(typ. ) +0.2%FS(max. ) pressure range> 20mH2O |
+10mmH2O(typ. ) +20mmH2O(max. ) pressure range≤ 20mH2O |
+20mmH2O(typ. ) +30mmH2O(max. ) only for MPM416WRK |
| Temp. drift |
| Zero drift, + %FS/º C |
Sensitivitydrift, +%FS/º C |
Rang> 10mH2O | 0.005(typ. ) | 0.01(max. ) |
0.02(max. ) |
| Range ≤ 10mH2O | 0.01(typ. ) | 0.02(max. ) | 0.02(max. ) |
Range ≤ 5mH2O | 0.015(typ. ) | 0.03(max. ) | 0.02(max. ) |
Range ≤ 2mH2O | 0.025(typ. ) | 0.05(max. ) | 0.02(max. ) |
| Transmitting | 2-wire | 3-wire | 3-wire |
| Power supply | 15~30VDC(Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Load(Ω ) | < (U-15)/0.02A | < ( U-15)/0.02A | > 5k |
| Material contacting with media | MPM416W |
Housing: stainless steel 1Cr18Ni9Ti |
O-ring: Viton |
Diaphragm: stainless steel 316L |
Rubber casing: NBR |
Cable: Φ 7.2mm PVC/Polyurethane cable with vented tube |
| MPM416WK |
Stainless steel 1Cr18Ni9Ti, red copper, Viton O-ring |
| MPM416WRK |
Stainless steel 1Cr18Ni9Ti |
| Operation temp. | -10º C~80º C, Intrinsic safe version: -10~70 º C |
| Storage temp. | -40 º C~100 º C |
| Protection | IP68(sensor part), IP65(wiring part) |
| Ex-proof class | ExiaIICT6
|
Order guide:| MPM416W | Submersible Level Transmitter |
| MPM416WK | Armoured Level Transmitter |
| MPM416WRK | Flexible Armoured Level Transmitter |
| | | range(mH2O) | [0~X mH2O]L | L: cable length, suggested: L-X=(1~2)m | MPM416W |
| L: armoured tube length | MPM416WK |
| L: flexible armoured tube length | MPM416WRK |
| | | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | diaphragm | Pressure port | Housing |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | 25 | Tantalum | SS | SS |
| | | | | Code | Others |
| | M1 | 0~100% hand pointer indicator (MPM416WRK has no this option) |
| | i | Intrinsic safe version ExiaIICT6 |
| | C1 | M20×1.5 male, face type seal | MPM416W |
| | C3 | G1/2 male |
| | C5 | M20×1.5 male, waterline seal |
| | T | Ship-use |
| | F1 | Fixed flange(MPM416WK has no this option) |
| | 1F1 | Stainless steel flange 1 DN50 | MPM416WK |
| | 1M1 | Stainless steel male M42×1.5 |
| | 1F2 | Stainless steel flange 2 DN10 |
| | 1M2 | Stainless steel male M30×1.5 |
| | 2F1 | Carbon steel plating zinc flange 1 DN50 |
| | 2M1 | Carbon steel plating zinc male M42×1.5 |
| | 2F2 | Carbon steel plating zinc flange 2 DN10 |
| | 2M2 | Carbon steel plating zinc male M30×1.5 |
| | | | | | | | | |
| MPM416W [0~3mH2O]5 E 22 iC1 the whole spec |
