| Prod Model: |
LS-CF-P07 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contact Capacity: |
AC250V/10(4)a |
| Output Signal: |
Spdt |
| Working Temperature: |
0~60 |
| Working Pressure: |
More or Less0.5MPa |
| Protection Grade: |
IP68 |
| Float Material: |
PP |
| Float Size: |
79*103mm |
| Cable Material: |
PVC/Rubber |
| Cable Length: |
1m,2m,3m,4m,5m;Customized |
| Conductor Size: |
3*0.5mm2, 3*1.0mm2 |
| Wires: |
PNP (',Three-Wires) |
| Principle: |
Cable |
Product Description

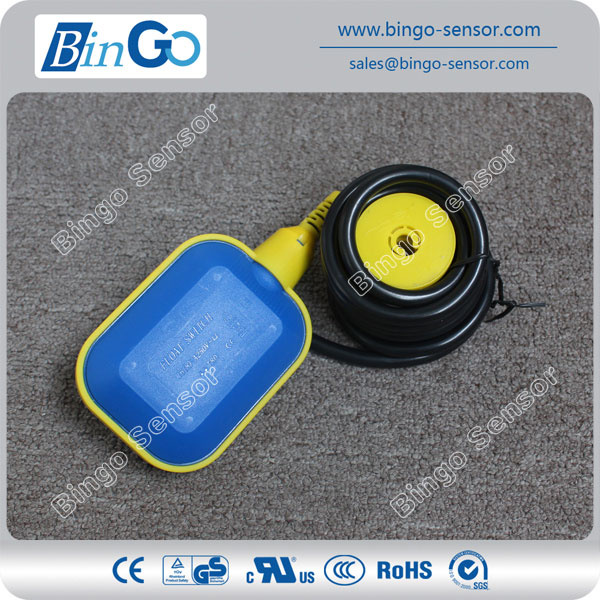

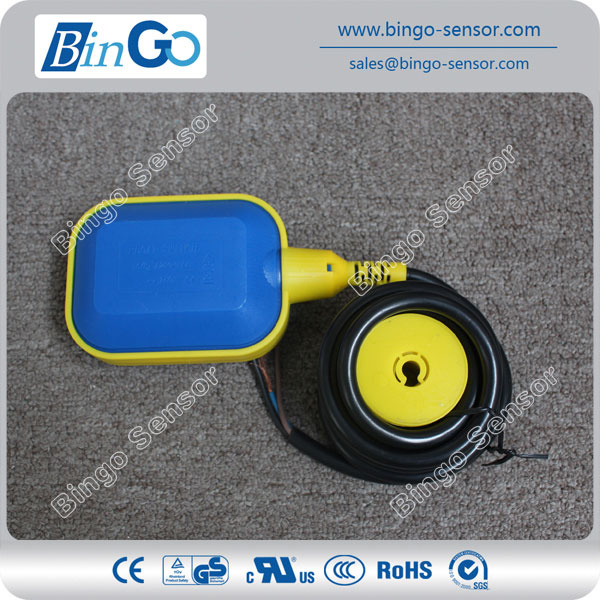

Cable float level switch for submersible pump
Introduction:Cable Float Switch LS-CF-P07 uses one-step shaping injection molding with substantial structure, cheap price and long lifetime. It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block. Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. Connection point capacity 10A/250VAC can start the motor equipment directly. It can be regulated freely and easy to operate, convenient to install, safe and reliable, without maintenance, non-toxic and environment friendly. It can resist sewage so that widely used in pool in resident, factories and mines ect., and ponds, barrel, manger and pot with oil, acid and alkali as well as the vessel with high viscosity and suspended substance.
Technical Parameter:| Product Name | Cable float level switch for submersible pump |
| Rated Voltage | AC 125-250V |
| Max.Current | AC 10(4)A |
| Frequency | 50/60Hz |
| Max.Using Temperature | 60 |
| Protection Degree | IP68 |
| Working Pressure | ±0.5MPa |
| Float Material | PP |
| Float Size | 79*103mm |
| Cable Material | PVC/Rubber |
| Cable Length | 1m,2m,3m,4m,5m;Customized |
| Conductor Size | 3*0.5mm2, 3*1.0mm2 |
Frequently Asked Questions1. Application:Sewage tank, pool, oil tank, alkalische spuelwasser, submersible pump2. How to choose a suitable level switch? | Users should select suitable switch according to the working temp., pressure,gravity, acid and alkali of the tested liquid. |
| Temperature: |
| PVC maximum temperature is 80°C, PP maximum temperature is 80°C, |
| PVDF maximum temperature is 150°C, |
| SUS304/316L maximum temperature is 200°C. |
| Pressure: |
| Plastic float maximum pressure resistance 5kg/cm2, |
| SUS304/316L maximum pressure resistance 40kg/cm2. |
| Viscosity: |
| For viscosity liquid, it is better to choose float with big diameter and small Gravity to overcome the surface tension |
| of liquid. |
| Acid and alkali liquid: |
| Please choose PP or PVDF, if temp. is higher than 80°C, PVDF ONLY |
| Alcohol and oil etc. liquid: |
| It is suggested to use stainless SUS. |
| Please select food grade SUS316L in food field. |
| Gravity: |
| Float's gravity S.G. should be less than tested liquid. |
