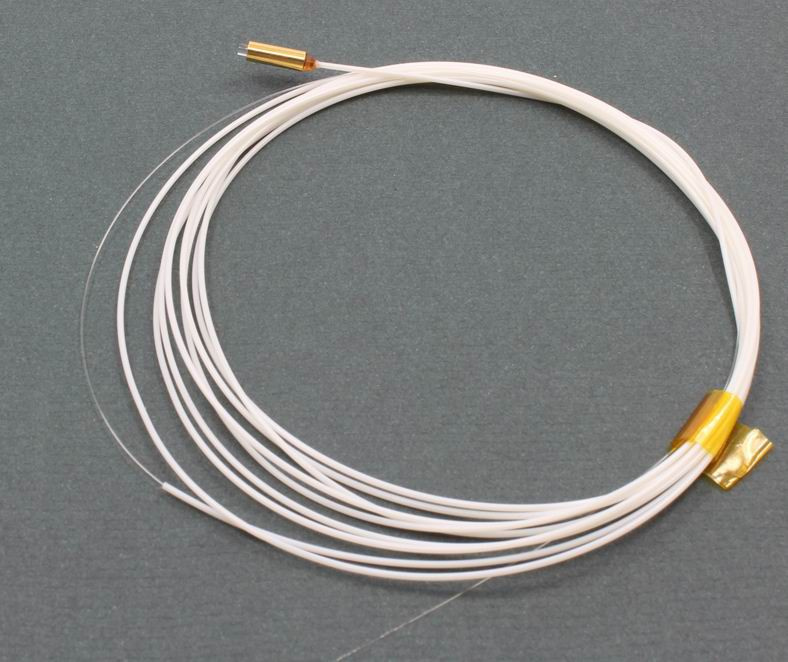

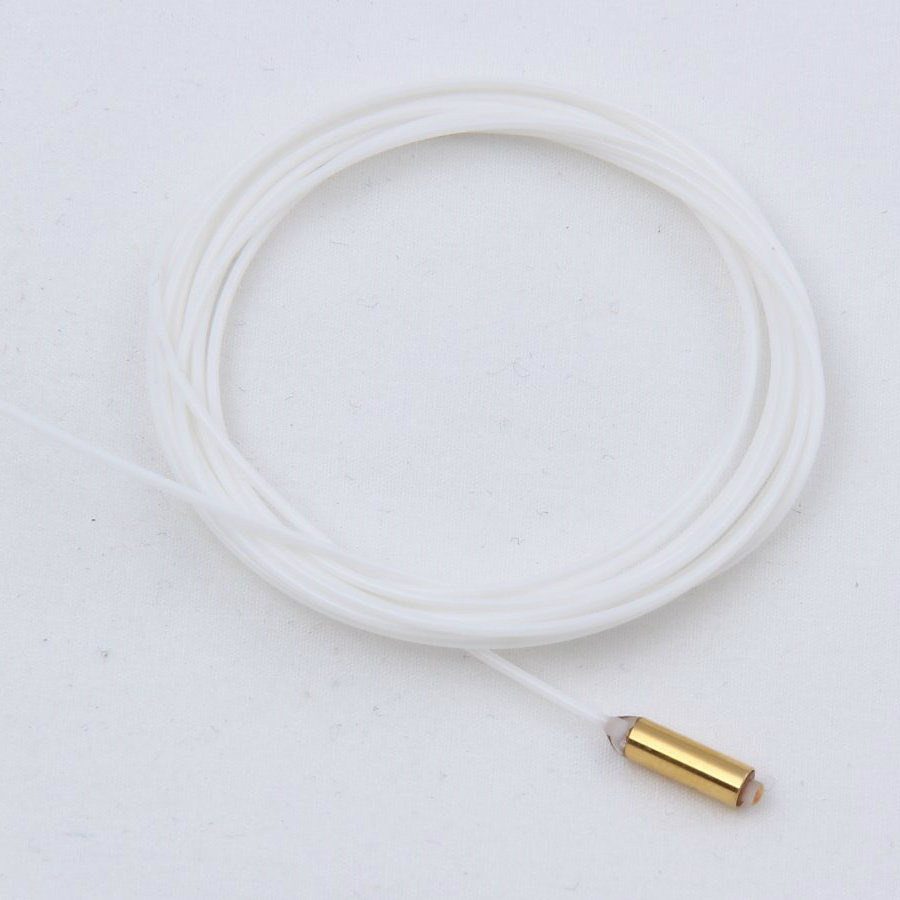

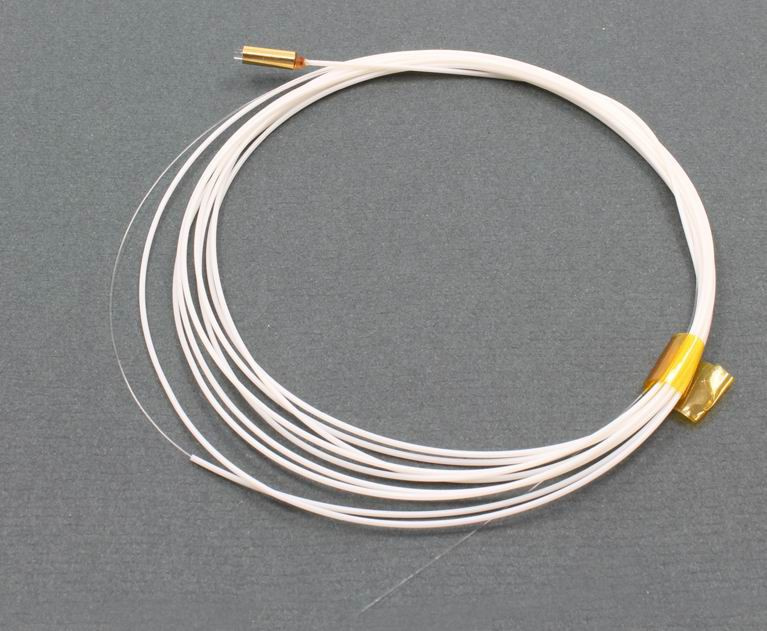

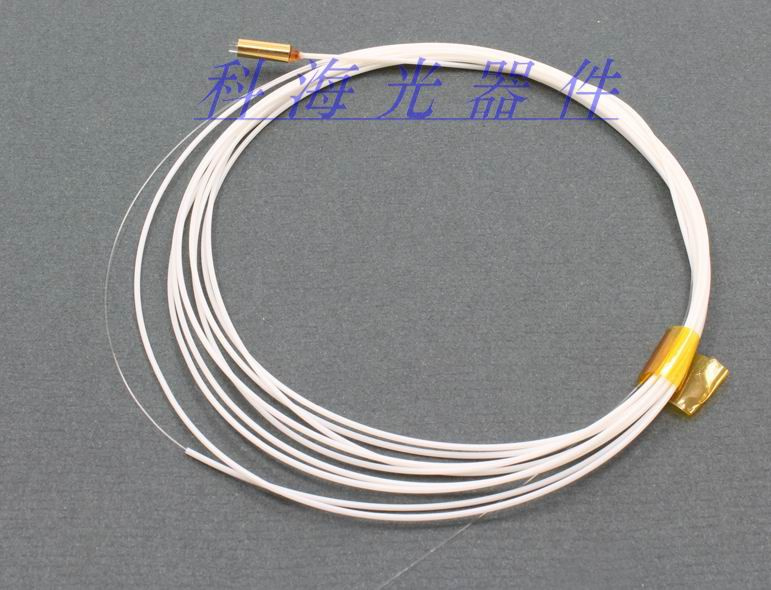

C-Lens Single-Mode Simplex Fiber Optic Collimators
| Price: |
US $ 13-15/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
C-LENS |
| Fiber Type: |
Sinlge Fiber, Double Fiber |
| Grade: |
Grade P, Grade a |
| Length: |
1mi or Other |
| Cable Tube: |
0.9mm, 2.0mm |
| Type: |
Wireless |
| Support Network: |
Ethernet |
| Certification: |
RoHS |
| Condition: |
New |
| Usage: |
FTTX |
| Information Content: |
Data, Voice, video |
Product Description
Introduction Collimator is made up by capillary pigtail and G-Lens which aligned accurately. By the self focus of G-Lens, collimator can realizable to out put a parallel beam or input the parallel beam into the fiber. It is widely used in optical module or optical researching and lab field.Applications
WDM device and module
Isolator
Circulator
Optical researching
|
C-Lens and G-Lens are available.Fiber type 0.25mm and 0.9mm are available.
SM9/125um, MM50/125um, MM62.5/125 are available.
Single fiber and duplex fiber are available.Features Low insertion loss High return loss Epoxy-free in optical path Specifications:| Parameter | Grade P | Grade A |
| Wavelength Range(nm) | 1260~1650 | 1260~1650 |
| Typical Insertion Loss | 0.16 dB | 0.21 dB |
| Maximum Insertion Loss | 0.2 dB | 0.25 dB |
| Typical Return Loss | 65 dB | 65 dB |
| Minimum Return Loss | 60 dB | 60 dB |
| Working Distance | 20mm |
| Maximum Acceptance Angle | 0.15 Degree |
| Maximum Beam Divergence | 0.25 Degree |
| Maximum Beam Diameter | 0.5mm |
| Maximum Optical Power | 300mW |
| Fiber Type | SMF-28e |
| Operating Temperature | -20ºC to + 70ºC |
| Storage Temperature | -40ºC to + 85ºC |
| Fiber Length (Min.) | 1 Meter Each End, 0.25mm or 0.9mm |
| Package Dimension (mm) | ∮1.0*10mm(glass tube);∮1.3*10mm(glass tube or metal tube)∮1.8*10mm(glass tube or metal tube)∮2.78*10mm(glass tube) |
