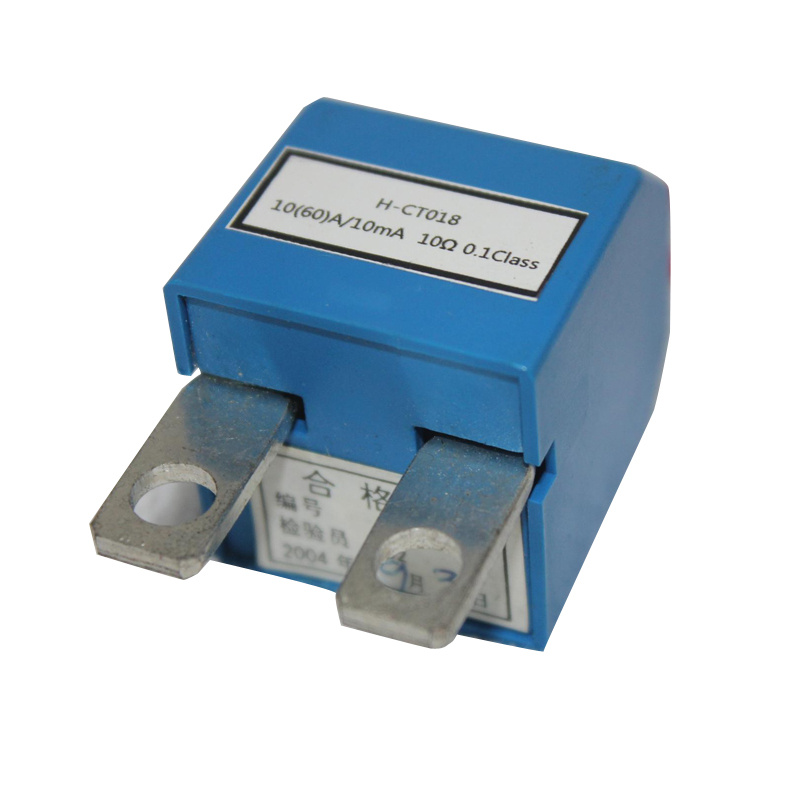

| Prod Model: |
H-CT018 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rate Current: |
10A |
| Max Current: |
60A |
| Secondary Current: |
10mA |
| Turn Ratio: |
1000:1 |
| Burden Resistance: |
10 Ohm |
| Wire Lenght: |
10cm |
| Packing Size: |
54.2X19.5X32cm |
| Carton Number: |
400pieces |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
Product Description
1, Main characteristics
1). It adopt high magnetic permeability magnetic core, with high
Precision and good linearity, and can prevent high magnetic interference.
2). Range of current: 10A to 60A
3). Primary input and secondary output ensures flexible and diversified forms as well as easy installation.
4). It's can be made according to customer's special requirements (for example, with anti-DC immunity or not. )
2, Application:
1), Multi-funcational energy meter
2), Prepayment energy meter
3), Reactive energy meter
4), Watt-hour meter
5), Multi-rate watt-hour meters
6), Maximum demand energy meter.
7), Standard electric energy meter
8), Meter for industry and home use
3, Technology Requirements
Meeting to the requirement of IEC185 and GB1208-97, fitting to the single phase or multi-phase electronic meter under voltage of working frequency 50(60) Hz.
4, Package and shipment
The individual package and the group box package are all available which guarantee the goods in a good state in shipment as well as be counted in facility.
5, In Storing
Room temperature is between -45~80º C, air humidity is less than 90%(@25º C) and any eroding gas or other harmful gas should be avoided
If you want to know more information for this model: H-DCT013, Please feel free to contact with us.
Thank you very much for your attention.
Model
| Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy | Temperature | Humidity |
H-CT018 |
10A
| 60A | 10mA | 1000:1 | 10Ω | 0.1Class | -40~+70º C | ≤ 95% |
