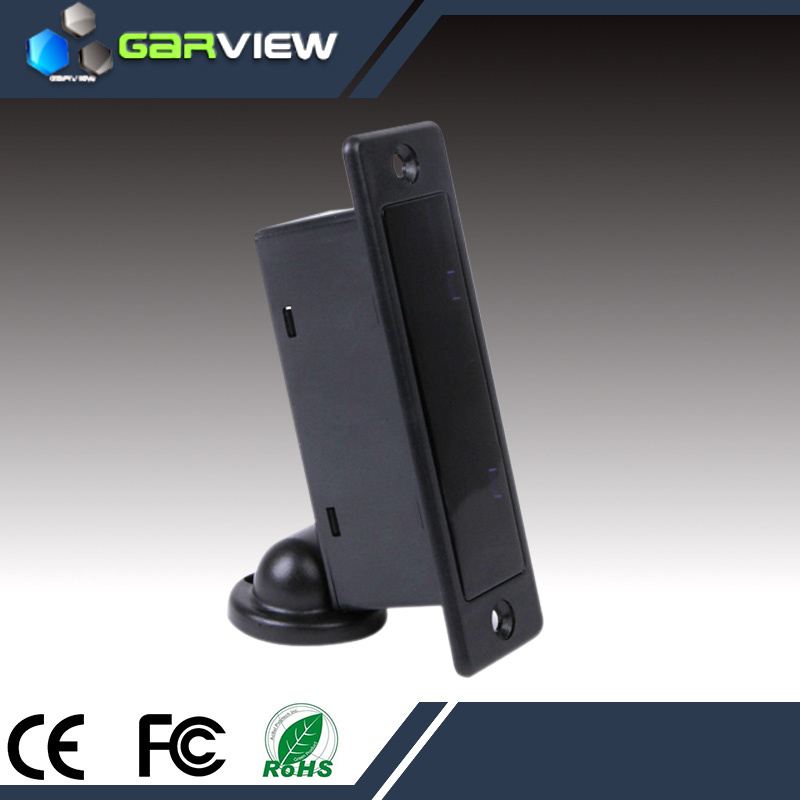

Automatic Door Active Infrared Sensor for Home Security

Name: Automatic Door Active Infrared Sensor for Home Security
Brand: all-electronics-online.com
SKU: 689635021
Availability: InStock
Rating: 4.9 (100 reviews)

Price:	US $ 25-32/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV-631
Power Supply:	AC/DC12~30V
Static Power:	22mA
Dynamic Current:	60mA
Distance:	2500mm
Induction Way:	Infrared Scanning
Scanning Beam Diameter:	40mm
Installation Hole Size:	78 L 24 W 30 H mm
Fixed Mode:	Hole-Hidden Screw
Detection Type:	Infrared Scanning

Product Description

Automatic door Active Infrared sensor for home security

Product Feature
1.Integrated surface cover,artistic design,rain-proof and dust-proof.
2.Easy to fix and connect to all kinds of automatic doors.

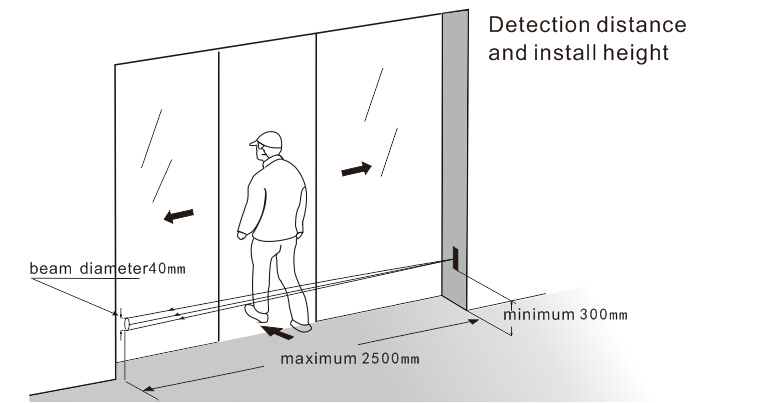

3.Detection distance can reach to 2.5 meters through one-side.
4.Anti-pinch function will be started when people or goods come in and out.
5.Self-correcting from external cause such as quake, distortion, move,dark, sunshine. Ensure the detector work durably.

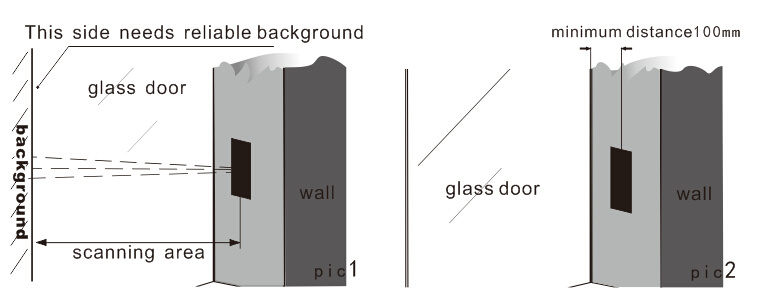

Production Application

1.The background towards detector must be strong enough. Otherwise scanning signal will not output.
2.The minimum distance between door and detector is 100mm.

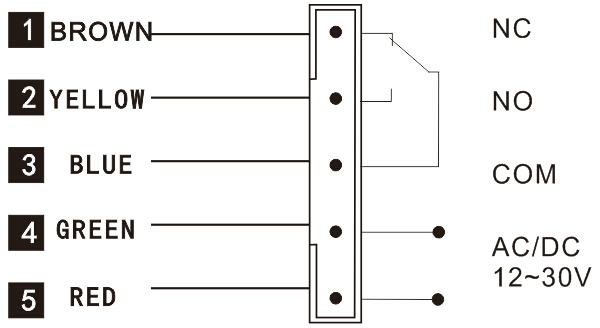

Wiring Connection

Shenzhen Garview Technology Co., Ltd, has been specialized in automatic door control, access & attendance products for years. Garview series products are widely used in automatic door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.

We own rich experience in automatic door controlling system and product application in the market. Garview provides full series accessories for automatic door:

Infrared safety sensor, Motion activation sensor, funtional switching selector, hand free sensor, wireless touch switch, keypad access, Power for access, Electronic bolt, EM lock for sliding door…

With high quanlity products, Garview items are regularly provided to different automatic door factories, engineer contractors and export merchants. Garview Company has become a globalized professional in this field since our products exported to oversea markets such as Iran, Tukey, Portugal, the Netherlands, and has gained a good reputation among customers. In the spirit of innovative, Gariview focuses on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent and security guard.
