Prod Model: |
CX-WZ/WR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Temperature Range: |
-200-1800c |
Fixing: |
Thread/Flange/None |
Connection: |
Terminal Box/Compensation Cable/Plug |
Probe Length: |
Custom |
Thermocouple Wire Element: |
Simplex/Duplex |
Accuracy: |
I ,II,III |

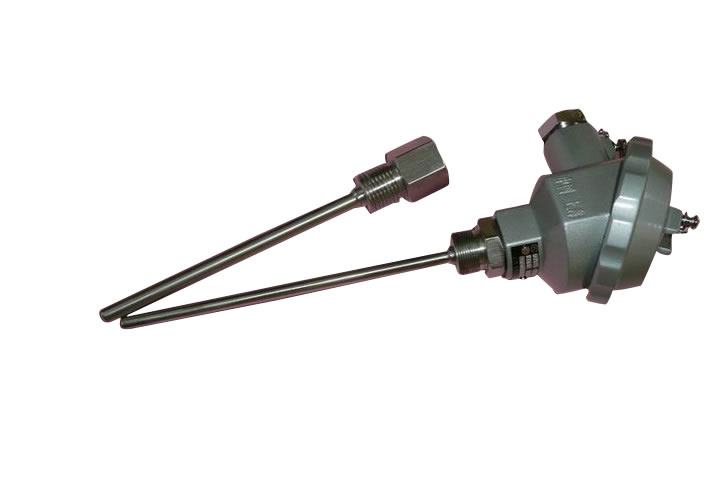

Product Description
Armor thermocouples / thermal resistance temperature sensorBrief introduction:It is usually connected with display meter, recording meter and computer ect. To directly measure the temperature of liquid, vaper, gas and solid surface ranging from -40 to 1000°C during various production processes.
How to choose?

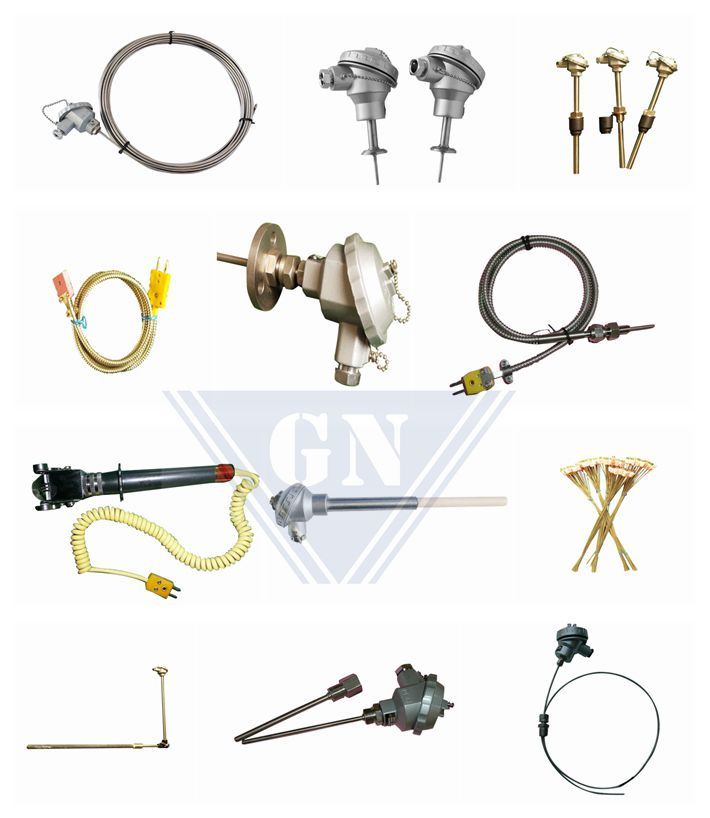

1.Diameter and length:Can be customized as customer's requirements2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.3.Fixed device: flange/none/screw.4.Temperature Range: 0-1800 centigrade .5.Terminal blocks: terminals boxProduct list:

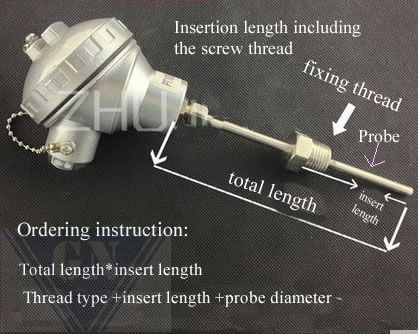

Diagram:
It can be suctomized according to your requirements.

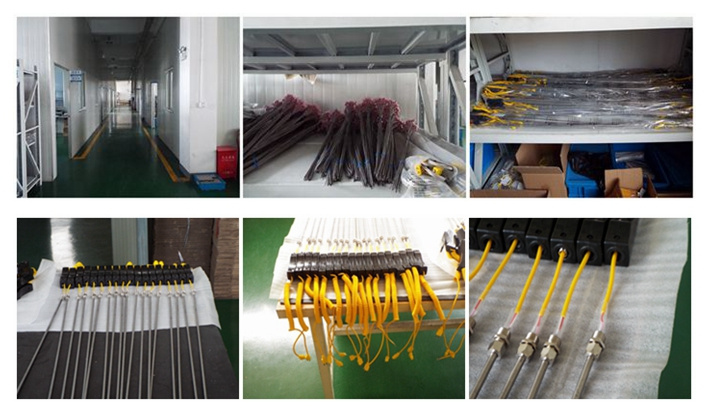

Workshop:
![](/proimages/44f3j00TQJEerbavfcF/armor-thermocouples-thermal-resistance-temperature-sensor.jpg)
After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
Our Integrity Promises your Quality !
Please contact with me, I will provide you professional service and high quality products.
Thermocouple & rtd |
Ref No. |
WR |
Temp |
Thermal element materials |
B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi |
0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
Ref No. |
WZP |
Temp |
|
PT100
PT1000
CU50 |
-200~+650C
-200~+650C
-200~+650C |
Pairs quantity of sensor wire |
Simplex
Duplex |
Ways of Mounting & Fixing |
1: without fixing device
2: fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6: fixed thread in wimble shape protection tube |
Types of connections box |
2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
Types of sensor end |
G: variable section
K: sheathed elements
T: flexible sheathed elements |
Diameter of protection tube |
0: ¢16
1: ¢20
2: ¢16 high aluminum material
3: ¢20 high aluminum material |
Measuring range |
0~1600 degree Celsius |
Shipping |
By air, sea, express |
Sample time |
2~7 days |
Manufacture time |
7~30 days depending on order quantity |
