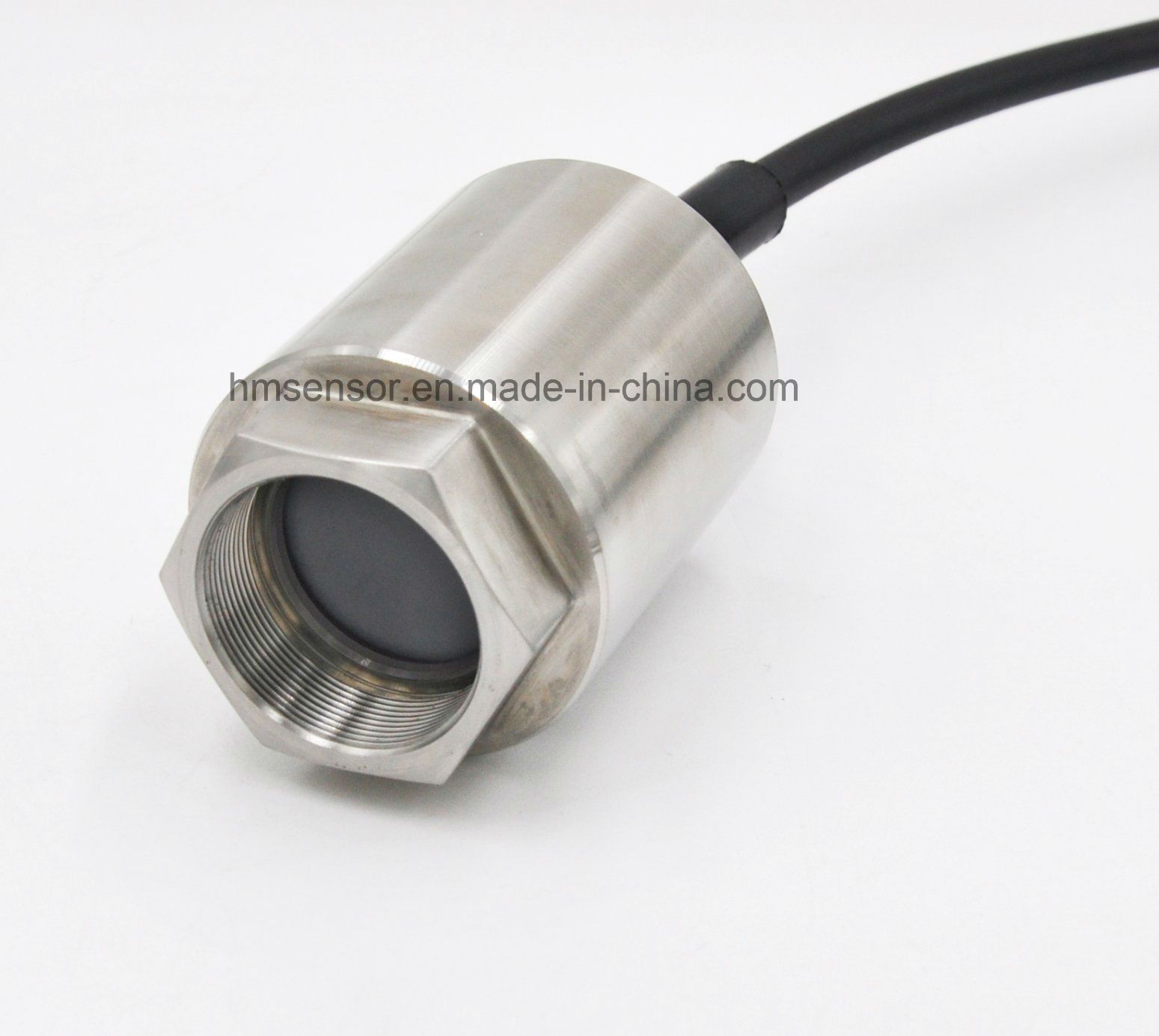

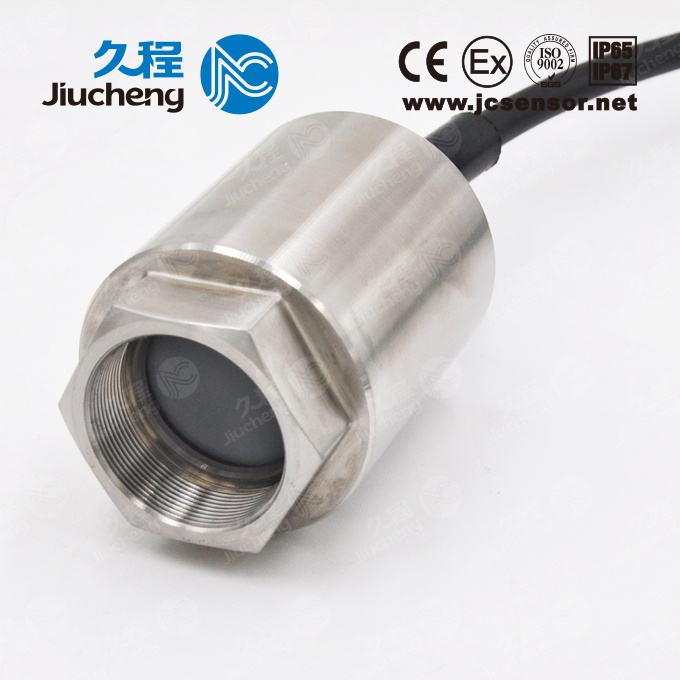

Anti-Corrosive Liquid Level Pressure Sensor (JC621R-02)
| Price: |
US $ 199-299/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
JC621R-02 |
| Thread Type: |
Customized |
| Wiring Type: |
2-Wires, or 3-Wires |
Product Description
Product OverviewAs a new liquid level measurement series product, JC621R Anti-corrosive Liquid Level Transducer is specially designed for measuring sea water level and viscous & corrosive liquid level by completely using foreign state-of-the-art technology. The use of titanium alloy large flush-diaphragm sensors, advanced manufacturing and encapsulating techniques, as well as high-accuracy electronic elements has greatly enhanced service life and comprehensive performance of the product. The use of internationally state-of-the-art ceramic capacitive sensors, dry pressure measuring technology with intermediate liquid, thick-film electronic technology, surface mount technology (SMT) and PFM signal transmission technology has given full play to technical advantages of ceramic capacitive sensors, with strong corrosion, overloading and impact resistance capabilities, high stability, and quite high measuring accuracy. This series product can be extensively used in many measurement and control fields of such corrosive and viscous liquid levels as sea water level.
Performance Parameters| Measuring range | 0~0.5m…200m |
| Overload capacity | Three times of the maximum rated pressure |
| Measuring media | Corrosive liquid (the medium compatible with AL2O3) |
| Overall accuracy | ±0.1%FS | ±0.25%FS | ±0.4%FS | ±1%FS |
| Long-term stability | Typical:±0.1%FS/year | Maximum:±0.2%FS/year |
| Operating temperature range | Integrated: -20ºC~70ºC | Split (plug-in):-20ºC~80ºC |
| Compensation temperature range | Integrated: -10ºC~55ºC | Split (plug-in):-10ºC~70ºC |
| Zero-point temperature drift | Typical:±0.02%FS/ºC | Maximum:±0.05%FS/ºC |
| Sensitivity temperature drift | Typical:±0.02%FS/ºC | Maximum:±0.05%FS/ºC |
| Range of power supply | 12~36VDC(generally 24VDC) |
| Signal output | 4~20mA/1~5VDC/ 0~5VDC |
| Load resistance | ≤(U-12)/0.02 Ω |
| Structural material | Enclosure:316L (optional) | Diaphragm:titanium alloy |
| Sealing: fluorosilicone rubber(optional) | Cable:Φ7.2mm special PE cable(optional) |
| Insulation resistance | 100MΩ,500VDC |
| Protection class | Enclosure protection class IP68 |
| Safety and explosion protection | Ex iII CT5 |
| Response time | ≤2 ms |
| Resolution | Infinitely small(theoretic),1/100000(normal) |
| Weight | Approx.250g |
Product Features*Strong corrosive resistance*Large flush-diaphragm design and good block resistance*A wide range of measurement from micro pressure 0.5m to high pressure 200m.*Strong overloading and impact resistance capacity, with overpressure up to dozens of times to hundreds of times of the measuring range.*Adoption of imported ceramic capacitive sensors, with strong signal output, high overall accuracy and good stability.*Small temperature drift due to intermediate liquid canceled for measuring elements.Ordering Guide| JC621R-02 | Anti-corrosive Liquid Level Sensor |
| | Measuring range | 0~X m or 0~X KPa |
| | Code | Structural form(maximum operating range) |
| C1 | Integrated:0~200m |
| C2 | Split:0~10m |
| C3 | Plug-in:0~4 m |
| | Code | Overall accuracy (linearity + repeatability + hysteresis) |
| 0 | 1.0%FS |
| 1 | 0.4%FS |
| 2 | 0.25%FS |
| 3 | 0.1%FS |
| | Code | Signal output(standard power supply) |
| A1 | 4~20mA (12~36V DC) |
| V1 | 1~5V DC (12~36V DC) |
| V2 | 0~5V DC(12~36V DC) |
| | Code | Additional functions |
| F1 | G11/2 male thread(split and plug-in) |
| F2 | DN20 flange(split and plug-in) |
| F0 | Special |
| E | Intrinsically safe explosion-proof type Ex iaIICT5 |
| F | Lightning protection type |
| JC621R-02 (0~10mH2O)-C1 -1 -A1 -E A |

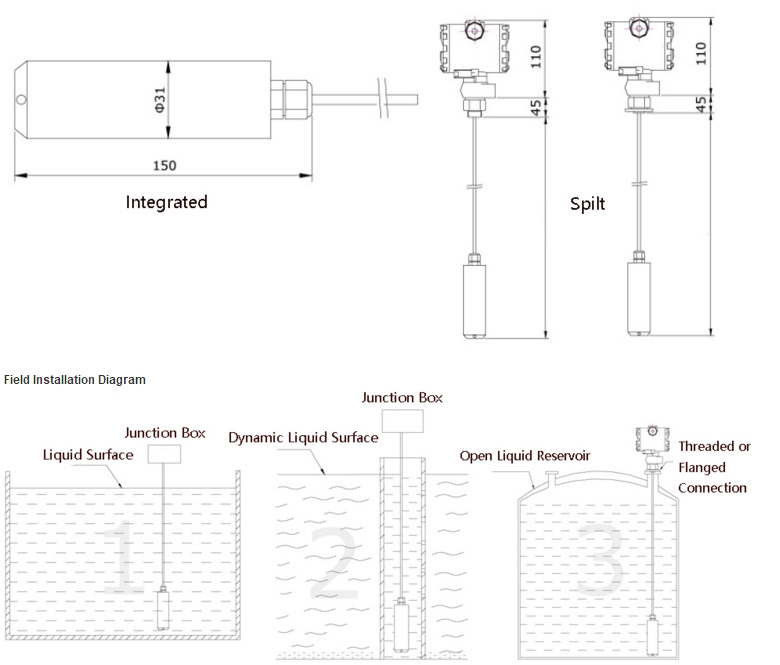

Dimensions
As shown in Figure 1, for installation in the water tank, water tower and other static water, generally the sensing end is directly thrown into the bottom of the water tank as far away from the pump and valve position as possible. The wiring section of the transducer is provided within the junction box, with the outgoing line pointing downward, to prevent water from penetrating into the airway tube of the air-guiding cable. Meanwhile, remember not to block the airway tube.
As shown in Figure 2, for installation in the water dam, water well and other flowing water, a steel tube with an inner diameter of approximately φ45mm is generally inserted into the water channel, where some small holes shall be drilled at the same height opposite to the water flow direction so that water can smoothly flow into the tube. The wiring section of the transducer is provided within the junction box, with the outgoing line pointing downward, to prevent water from penetrating into the airway tube of the air-guiding cable. Meanwhile, remember not to block the airway tube.
Figure 3 shows threaded or flanged connection of the split liquid level transducer in the open-hole vessel, wherein thread size or flange size are G 1 / 2 and DN20 respectively or customized.
