Aluminum and Copper Fin Tube for Heat Exchanger Accordion Pipe Corrugated Tube

Aluminum and Copper Fin Tube for Heat Exchanger Accordion Pipe Corrugated Tube
Price: Negotiable/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T

Product Description

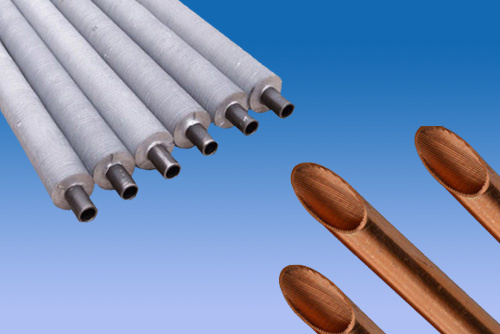

Fin tubes:
1) Integral Low Finned Tubes
Increase surface area of tubes, Improves efficiency of heat exchangers and more compact size. Inner Fin, Outer Fin or both Inner and Outer Fin are available.
Tube Materials: Copper, Aluminum Brass, Copper Nickel and other Copper Alloy.
Fin Pitch: 19 to 26 Fin Per Inch.
2) Spiral Finned Tubes
We produced Spiral High Finned Tubes base tube material: Copper and Copper Alloy Tubes, Duplex Tubes and other alloy.
Tube Outside Diameter: from 10mm to 50mm
Fin Materials: Aluminum and Copper Mix. tubes.
Length: up to 15 meter.
Fin pitch: 7, 9, 10...13, 14 mm Fin Per Inch.
Fin height: 6mm to 12mm
Jiangyin Hehong Precision Technology (Jiangyin New Huahong Copper Industry Co., Ltd. ) is a Branch of Huahong Group (A-STOCK: 002645. SZ), a famous Copper Alloy products manufacturer in eastern China, near to Shanghai. We are specializing at the production of copper and copper alloy (admiralty brass/naval brass, aluminum brass, cupronickel/copper nickel) condenser tube, efficient heat exchange tube, large diameter copper nickel pipe, copper alloy forged flanges, oxygen-free copper products and railway ground cable, has been formed annual production capacity of more than 30000 tons of copper products. Products are widely used seawater desalination, nuclear power, petrochemical, marine, steam turbine, pressure vessels, heat exchangers, central air-conditioning, household appliances and railway transit, etc. And we wrote the National Standard of copper alloy seamless tube for Nuclear Power.

Main products of our company:

1)Seamless condenser and heat-exchangers tube series: Admiralty brass tube(HSn70-1/C44300/CuZn28Sn1As) and Aluminum brass tube(HAl77-2/C68700/CuZn20Al2As) etc.

2)Seamless copper-nickel alloy tubes for condenser and heat-exchangers series:

BFe10-1-1/C70600/CuNi10Fe1Mn, BFe30-1-1/C71500/CuNi30Mn1Fe and other copper nickel alloy tubes;

3)Seamless Brass tube and Arsenical brass tube series: C26130, C26000, C26200, C27000, C27200, C28000 and other copper-alloy tubes are widely used in sanitary ware, antenna, decoration, stationery, cooper standard component, etc.;

4)Copper pipe and tube series: T2/C11000/C102, TP2/C12200/C106 and other copper tubes.

5)Finned Tube and Refrigeration fitting series.

6)Through-Railway Ground Wire/High-Speed-Railway Ground Cable.

7)Bars and Forged flanges or machinery parts(copper alloy).
