| Prod Model: |
transformer |
| Type: |
Air-Cooling Transformer(Single /Three Phase) |
| Vltage Ranges: |
Below 1000V |
| Frequency: |
50Hz / 60 Hz |
| Phase Number: |
Single-Phase/ Three-Phase |
| Function Category: |
Isolated Transformer/ Auto Transformer |
| Isolation Level: |
Class B ,F , H |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Kewang |
Product Description

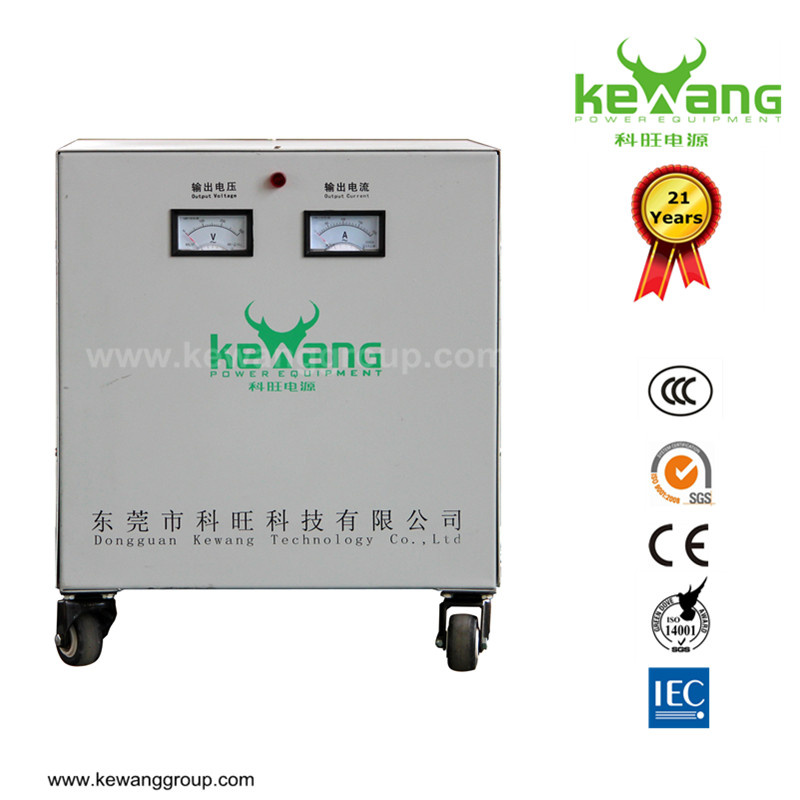

Air-Cooling Transformer(Single /Three Phase)
SE and SCB series are varnished, low voltage, dry type transformer. SE is for wire winding, SCB is for foil winding. Transforming voltage of AC power , isolating supply, applying to different kinds of load. The product is applicable to electrical equipment which needs transforming Voltage of AC power. The instrument of cabient including: the power indicator light, current meter, and the output & input voltage meter on the front panel of the transformer cabinet.
As for Capacity below 60kVA (Auto transformer) or below 25kVA (Isolated transformer), the product is with wheels on its bottom. Otherwise, considering with better weight-loading, it would be with channel steel on the bottom.
The voltage ranges: below 1000V
Frequency: 50Hz / 60 Hz.
Phase Number: single-phase/ three-phase
Function category: isolated transformer/ auto transformer
Isolation Level: class B (130 ºC), F (155 ºC), & H (180 ºC)
| SE Air-cooled Three-phase Isolation Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
| SE-10 | 10 | 600×500×520 | 110 |
| SE-15 | 15 | 600×500×520 | 130 |
| SE-20 | 20 | 600×500×520 | 160 |
| SE-30 | 30 | 600×500×520 | 170 |
| SE-40 | 40 | 720×560×800 | 240 |
| SE-50 | 50 | 720×560×800 | 280 |
| SE-60 | 60 | 720×560×800 | 320 |
| SE-80 | 80 | 880×680×980 | 420 |
| SE-100 | 100 | 880×680×980 | 460 |
| SE-120 | 120 | 880×680×980 | 500 |
| SE-150 | 150 | 1180×880×1280 | 580 |
| SE-200 | 200 | 1180×880×1280 | 620 |
| SE-250 | 250 | 1180×880×1280 | 700 |
| SE-300 | 300 | 1280×950×1500 | 880 |
| SE-400 | 400 | 1280×950×1500 | 980 |
| SE-500 | 500 | 1400×1100×1700 | 1200 |
| SE-600 | 600 | 1400×1100×1700 | 1400 |
| SE-800 | 800 | 1600×1200×1900 | 1800 |
| SE-1000 | 1000 | 1600×1200×1900 | 2200 |
| SE-1250 | 1250 | 1800×1500×2200 | 2800 |
| Parameters |
| Rated capacity | 10kVA~1250kVA |
| Frequency | 50Hz/60Hz |
| Coupling | Yna0 DyN11 |
| Efficiency | >95% |
| Insulation class | B/F/H |
| Power frequency withstand voltage | 3000V60S |
| Insulation resistance | 500VDC>5ΜΩ |
| Ambient temperature | 10~40ºC |
| Relative humidity | <90% |
| Specifications |
| SE Air-cooled Three-phase Auto Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm |
Weight (kg)
|
| SE-10 | 10 | 500×400×500 | 75 |
| SE-15 | 15 | 500×400×500 | 85 |
| SE-20 | 20 | 600×500×520 | 110 |
| SE-30 | 30 | 600×500×520 | 120 |
| SE-40 | 40 | 600×500×520 | 130 |
| SE-50 | 50 | 600×500×520 | 160 |
| SE-60 | 60 | 600×500×520 | 170 |
| SE-80 | 80 | 720×560×800 | 230 |
| SE-100 | 100 | 720×560×800 | 240 |
| SE-150 | 150 | 720×560×800 | 280 |
| SE-200 | 200 | 880×680×980 | 420 |
| SE-250 | 250 | 880×680×980 | 460 |
| SE-300 | 300 | 880×680×980 | 500 |
| SE-350 | 350 | 1180×880×1280 | 580 |
| SE-400 | 400 | 1180×880×1280 | 620 |
| SE-500 | 500 | 1180×880×1280 | 700 |
| SE-600 | 600 | 1280×950×1500 | 880 |
| SE-800 | 800 | 1280×950×1500 | 980 |
| SE-1000 | 1000 | 1400×1100×1700 | 1200 |
| SE-1250 | 1250 | 1400×1100×1700 | 1400 |
