(AF-30) DIN Rail Type CT Mini Current Transformer for Panel Meter

Name: (AF-30) DIN Rail Type CT Mini Current Transformer for Panel Meter
Brand: all-electronics-online.com
SKU: 750454465
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	US $ 0.5-2.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AF-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coil Number:	Autotransformer
Rated Frequency:	50/60Hz
Rated Voltage:	0.72kv
Hole Dia:	30mm
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

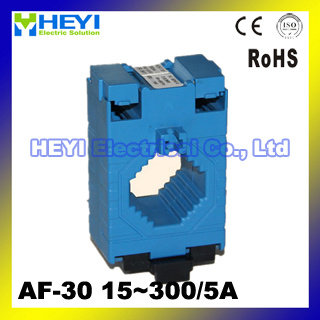

1. The AF-30 Mini Current Transformer is a world famous mini design plastic current transformer, snap on body, be widely used in generators.
2. it's a kind compact current transformer, supplied with DIN rail clip and intergral hinged terminal cover.
3. The electrical transformer has a 30mm diameter aperture and is available with primary currents from 15A to 250A.
4. It complies with ICE60044-1, GB1208-2006.

Type	Rated CurrentA	Rated Burden(VA)	Accuracy Class
AF-30	30/5		1.0
	40/5		1.0
	50/5	1	1.0
	60/5	1	1.0
	75/5	1.5	1.0
	80/5	1.5	1.0
	100/5	2.5	1.0
	125/5	2.5	0.5
	150/5	3	0.5
	200/5	5	0.5
	250/5	5	0.5
	300/5	5	0.5

Rated Frequency	50/60Hz
Rated test voltage	3kV AC. (1 min)
Rated short-time thermal current(Ith)	60In
Rated dynamic current, (Idyn)	2.5Ith
Rated voltage,(Um)	0.72Kv AC.
Continuous overload,(Id)	1.2In
Operating temperature	-10°C~50°C
Housing self-extinguishing class	VO
Safety factor FS	FS 5
Secondary current	5A/1A

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
