| Prod Model: |
AD-204G-5 -B |
| Usage: |
Ray Sensor, Position Sensor |
| Theory: |
Optical Sensor |
| Technology: |
Microwave&Microwave Disposer |
| Frequency: |
24.125GHz |
| Transmitting Power: |
<20dBm Eirp |
| Launch Frequency Density: |
<5MW/Cm2 |
| Installation Height: |
4m(Max) |
Product Description

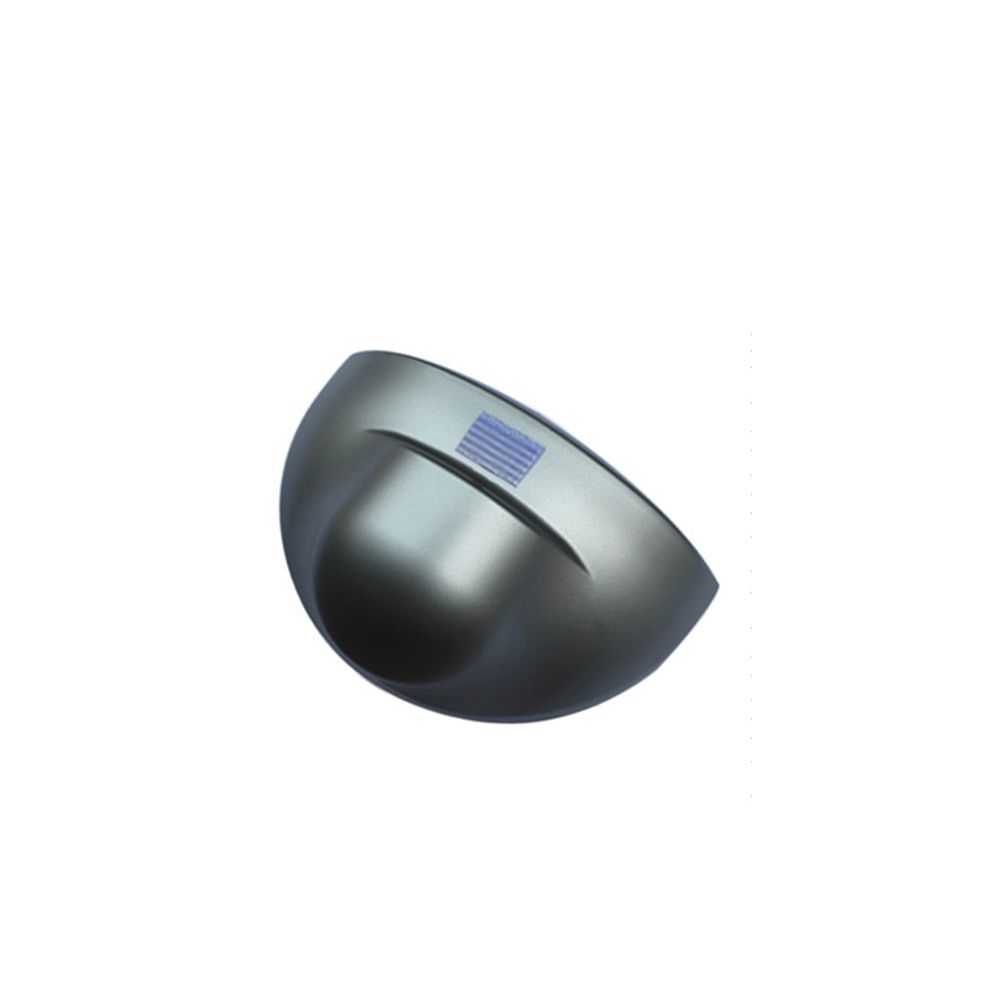

AD-204G-5 China supplierLow price 24.125Ghz automatic doors radar motion sensor
Specifications:
Product Parameter | Parameter Description |
Transmitting frequency | 24.125GHz |
Transmitting power | <20dBm EIRP |
maximum installation height | 4100MM |
Detection mode | Movement |
Power | <2W(VA) |
Temperature | 20°C- +55 0C |
Minimum detection speed | 5cm/s |
Realy Output | COM NO 2A/24VDC |
Cover Material | ABS plastic |
Anti-interfere | R&TTE 1995/5/EC.EMC 89/366/EEC |
Power | AC/DC 12-30V (+/-10%) |
Size | 129mm(W)x 58mm(H)X 66mm(D) |
Maximum installation height | 4000MM*3900MM |
Overall Characteristic:
Accessory for all kinds of automatic doors. High-sensitivity, quick and accurate response. Specially apply in commercial, industrial and demanding of automatic access area.
Product Picture:
Product Certification:
Our Factory:
Our Advantage:1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products. Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target:Provide cost-effective products and timely services with the concept of "one store purchasing", realize win
to-win cooperation!How to Pay:By T/T, paypal, western union, Moneygram, L/C.
How to Deliver:1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty:We provide 1~2 years warranty from the date of delivery but lifetime technical support.
Contact us:hanks for your visiting! Please contact us online or send your inquiry details in the below,
click "send" now, we are waiting for your any inquiry!
Established in 2003, Shenzhen Techcrepower Technologies Limited (Subsidiary of Shenzhen Huake Tech. ) is specialized in R&D and production of access control Products, including RS485 and TCP/IP based control panel, IE web based Control panel, RFID network and single door offline access controller, wiegand reader and other peripheral access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, we always improving and improving!
We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our 5 assembly line workers are well trained and can provide very professional work. All our products will be conducted aging test for 72 hours. QC staffs make piece-by-piece checks for all products. The RFID Reader monthly Production Capacity is 15000PCS in our ISO 9001: 2000-certified factory. With multi-kind of test equipments, our quality can be ensured to meet international Standards.
We are proud of our advanced technologies, top quality products, as well as fast services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for SME (small & medium enterprise) in security sector!
Our Target: Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!
