96V 20kw Electric Car Brushless DC Motor
Price: |
US $ 1320-1890/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,D/P,Western Union,Paypal |
Power: |
20kw |
Voltage: |
72V 96V 120V Optional |
Application: |
Car |
Structure And Working Principle: |
Brushless |
Operating Speed: |
2000-6000rpm |
Excitation Mode: |
Pm |
Type: |
BLDC |
Certification: |
Ce |
Brand: |
Golden Motor |
Product Description
Golden motor brushless DC (BLDC )motor,brushless dc motor
With power range from 200W to 20KW and voltage from 24V to 120VDC. +
It has been widely used for many appliacations such as auto industry,
Battery powered bikes, electric car, scooters. Motorcycle. Go carts, boat, goftcarts etc. Clean, Efficient, Light Weight, Powerful BLDC Motor Drive Kits
For Electric Car, motorcycel, ATV, Go-Kart, Golf Buggy
Product Features:
-Long working life >20000hours
-Low noise, high torque
-Excellent performance characteristics
-High efficicency >90%
-Rate Voltage 24V-120VDC
-Rate Power 200W-20KW
-Rate speed 2000-6000RPM
-Cooling Options: Fan cooled or water cooled
-Temperature sensor installed: KTY84-130-Stepless speed control, dual direction
48V/72V 3KW BLDC motor kit for Electric Car, motorcycel, ATV, Go-Kart, Golf Buggy,
Air cooled/Liquid cooled avaible! 48V/72V96V120V 5KW BLDC motor kit for Electric Car, motorcycel, ATV, Go-Kart, Golf Buggy,
Air cooled/Liquid cooled avaible!
48V/72V96V120V 10KW BLDC motor kit for Electric Car, motorcycel, ATV, Go-Kart, Golf Buggy,
Air cooled/Liquid cooled avaible! 72V96V120V 20KW BLDC motor kit for Electric Car, motorcycel, ATV, Go-Kart, Golf Buggy,
Air cooled/Liquid cooled avaible!
Vedios address:
Specification: Voltage: 48V/60V/72V Rated Power: 2KW-3KW Peak Power: 6KW Efficeincy: >90% Speed: 3000-5000rpm Rated torque: 10 N. M Peak torque: 25 N. M Dimension: 18cm dia. 12.5cm height Weight: 8KG Features: Compact design, Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 48V3000W Weight: 8kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Type: 72V3000W Weight: 8kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Voltage: 48V/60V/72V Rated Power: 2KW-3KW Peak Power: 6KW Efficeincy: >90% Speed: 3000-5000rpm Rated torque: 10 N. M Peak torque: 25 N. M Dimension: 18cm dia. 12.5cm height Weight: 8KG Features: Compact design, Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 48V3000W Weight: 8kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Type: 72V3000W Weight: 8kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|

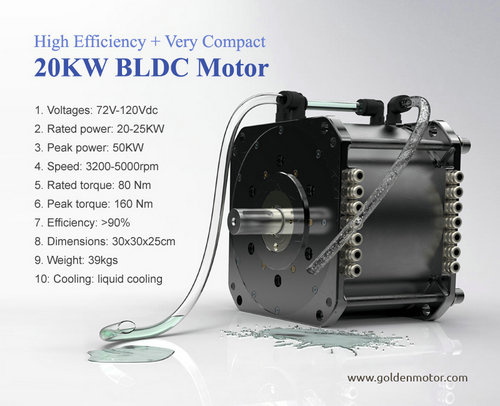

Voltage: 72V-120VDC Rated Power: 20KW-25KW Peak Power: 50KW Efficeincy: >90% Speed: 3200-5000rpm Rated torque: 80 N. M Peak torque: 160 N. M Dimension: 30X30X25cm Weight: 39KG Features: Compact design, Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 72V20KW Weight: 39kgs/unit |
|
|
Type: 96V20KW Weight: 39kgs/unit |
|
|
Voltage: 24V/36V/48V/72V Rated Power: 3KW-7.5KW Efficeincy: 88% Speed: 2000-6000rpm (customizable) Casing: AluSmartum Length (height): 126mm Diameter: 206mm Shaft: Customizable Features: Compact design, Water resistent, Stainless Steel Shaft, Self Cooling Fan Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. | Type: 48V5000W Weight: 11.6kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Type: 72V5000W Weight: 11.6kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Voltage: 24V/36V/48V/72V Rated Power: 3KW-7.5KW Efficeincy: 88% Speed: 2000-6000rpm (customizable) Casing: AluSmartum Length (height): 126mm Diameter: 206mm Shaft: Customizable Features: Compact design, Water resistent, Stainless Steel Shaft, Liquid Cooling Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. | Type: 48V5000W Weight: 11.6kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Type: 72V5000W Weight: 11.6kgs/unit Measurement: 25cm*25cm*26cm/CTN |
|
|
Model: HPM-10KW -- High Power BLDC Motor Voltage: 48V/72V/96V/120V Rated Power: 8KW-20KW Efficeincy: 91% Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V Phase Induction(100kHz): 34uH/48V; 77uH/72V; 252uH/120V Speed: 2000-6000rpm (customizable) Weight: 17Kgs Casing: AluSmartum Length (height): 170mm Diameter: 206mm | Type: 48V/10KW Weight: 17kgs/unit |
|
|
Type: 72V/10KW Weight: 17kgs/unit |
|
|
Model: HPM-10KW -- High Power BLDC Motor Voltage: 48V/72V/96V/120V Rated Power: 8KW-20KW Efficeincy: 91% Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V Phase Induction(100kHz): 34uH/48V; 77uH/72V; 252uH/120V Speed: 2000-6000rpm (customizable) Weight: 17Kgs Casing: AluSmartum Length (height): 170mm Diameter: 206mm | Type: 48V/10KW Weight: 17kgs/unit |
|
|
Type: 72V/10KW Weight: 17kgs/unit |
|
|
