| Prod Model: |
3FM4.5(6v4.5ah/20hr) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black.. |
| Terminal: |
F1/F2 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Toys, Electrical Scooter, Electrical Scale |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

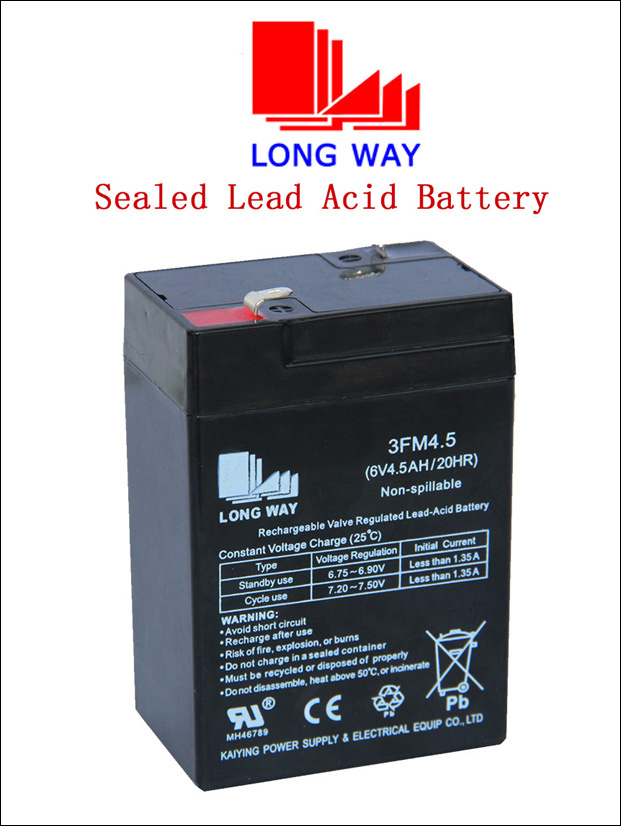

LONGWAY Sealed Rechargeable Lead-Acid SLA Battery (6V4.5AH/20HR)
LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc.
III. Telecommunication and stationary lead acid battery.
6V - 1.2Ah to 190Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.
1)Product descriptions
Model: 3FM4.5 (6V4.5AH)
Size: 70*47*99 (Total height: 105) mm
Plates inside: 18 PCS
Weight:Approx.(0.75± 3%)kg(1.65lbs)
Terminal:F1(0.187)/F2(0.250)
1C Duration: 40 minutes
Packing Qty: 20 PCS/CTN,27, 000 PCS/Container
Lead-time: 7-15 days for one container
Cells per Unit:3
Normal Voltage:6V
Capacity:4.5Ah@20Hr-rate to 1.75V per cell@25ºC
Maximum Discharge Current :45A(5sec)
Internal Resistance :Approx. 23mΩ full charged @25ºC
Operating Temperature Range:Discharge: -15ºC~50ºC
Charge: -15ºC~40ºC
Storage: -15ºC~40ºC
Nominal Operating Temperature Range:25ºC±3ºC
Float Charging Voltage:6.75~6.90VDC/unit Average @25ºC
Maximum Charging Current :1.35A
Equalization and Cycle Service:7.20V~7.50VDC/unit Average @ 25ºC
Self Discharge:
LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Container Material:ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
2)General features
Stable Quality&High Reliability
Sealed construction
Environmentally friendly
Maintance-Free operation
Low pressure venting system
Heavy duty grid
Low self discharge
UL Component Recognition (MH 46789)
3)Applications
Alarm systems, Cable television, communications equipment, control equipment,
Computers, electronic cash registers, electric test equipment,
Electric powered bicycle and wheel chair,
Emergency lighting systems, fire&security, geophysical equipment,
Marine equipment, medical equipment,
Micro processor based office machines, portable cine&video lights,
Power tools, solar powered systems,
Telecommunications systems, television&video recorders, toys,
Uninterruptible power supplies, vending machines.

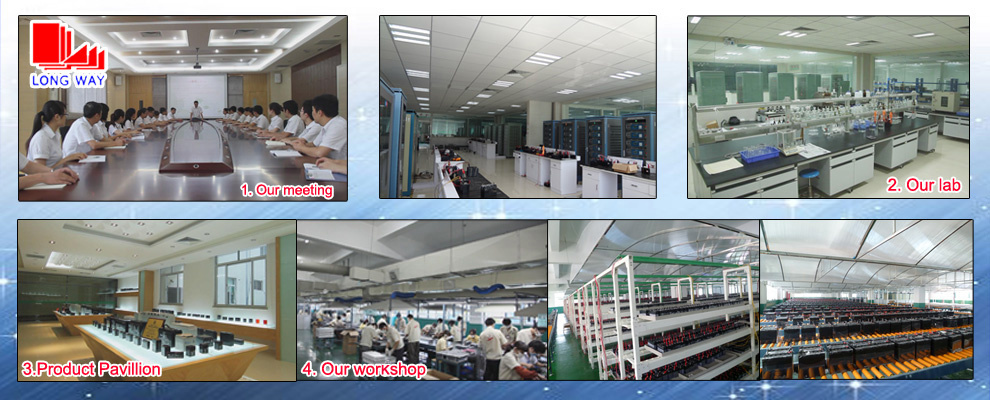

Our factory photo
Our certificate
If any interest, welcome to contact us freely.| Standby Part of LONGWAY 6 Volt battery series |
| Battery Model | Internal model | Nominal Voltage (V) | Nominal Capacity (AH) 20HR | Length | Width | Height | Total Height | Weight(±3%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | lbs | Kg | Type | Position |
| 3FM1.2 | LW6-1.2 | 6 | 1.2 | 3.82 | 97 | 0.94 | 24 | 2.05 | 52 | 2.28 | 58 | 0.66 | 0.30 | F1 | C |
| 3FM2.4 | LW6-2.4B | 6 | 2.4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.08 | 0.49 | F1/F2 | A |
| 3FM2.4A | LW6-2.4A | 6 | 2.4 | 1.91 | 48.5 | 1.53 | 38.8 | 3.01 | 76.4 | 3.25 | 82.5 | 0.84 | 0.38 | F1 | A |
| 3FM2.8 | LW6-2.8 | 6 | 2.8 | 2.60 | 66 | 1.30 | 33 | 3.84 | 97.5 | 4.09 | 104 | 1.21 | 0.55 | F1 | A |
| 3FM2.8A | LW6-2.8A | 6 | 2.8 | 2.60 | 66 | 1.30 | 33 | 3.84 | 97.5 | 4.09 | 104 | 1.10 | 0.50 | F1 | A |
| 3FM3.2 | LW6-3.2 | 6 | 3.2 | 5.28 | 134 | 1.36 | 34.5 | 2.34 | 59.5 | 2.64 | 67 | 1.43 | 0.65 | F1 | C |
| 3FM3.5 | LW6-3.5 | 6 | 3.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.30 | 0.59 | F1/F2 | A |
| 3FM4E | LW6-4E | 6 | 4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.28 | 0.58 | F1/F2 | A |
| 3FM4 | LW6-4 | 6 | 4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.50 | 0.68 | F1/F2 | A |
| 3FM4.2 | LW6-4.2 | 6 | 4.2 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.54 | 0.70 | F1/F2 | A |
| 3FM4.2A | LW6-4.2A | 6 | 4.2 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.57 | 0.71 | F1/F2 | A |
| 3FM4.5 | LW6-4.5 | 6 | 4.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.65 | 0.75 | F1/F2 | A |
| 3FM5 | LW6-5 | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.83 | 0.83 | F1/F2 | A |
| 3FM5A | LW6-5A | 6 | 5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 1.87 | 0.85 | F1/F2 | A |
| 3FM5E | LW6-5E | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.74 | 0.79 | F1/F2 | A |
| 3FM5S | LW6-5S | 6 | 5 | 2.68 | 68 | 2.68 | 68 | 3.86 | 98 | 4.57 | 116 | 1.83 | 0.83 | S/F1 | B |
| 3FM5.5 | LW6-5.5 | 6 | 5.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.90 | 0.86 | F1/F2 | A |
| 3FM6 | LW6-6 | 6 | 6 | 3.35 | 85 | 1.89 | 48 | 3.94 | 100 | 4.17 | 106 | 2.20 | 1.00 | F1/F2 | A |
| 3FM6.5 | LW6-6.5 | 6 | 6.5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 2.60 | 1.18 | F1/F2 | A |
| 3FM7 | LW6-7 | 6 | 7 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.31 | 1.02 | F1/F2 | C |
| 3FM7.2 | LW6-7.2 | 6 | 7.2 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.31 | 1.05 | F1/F2 | C |
| 3FM7.5 | LW6-7.5 | 6 | 7.5 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.45 | 1.11 | F1/F2 | C |
| 3FM8 | LW6-8 | 6 | 8 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.54 | 1.15 | F1/F2 | C |
| 3FM8A | LW6-8A | 6 | 8 | 3.86 | 98 | 2.20 | 56 | 4.53 | 115 | 4.65 | 118 | 3.09 | 1.40 | F1/F2 | B |
| 3FM9 | LW6-9 | 6 | 9 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.20 | 1.45 | F1/F2 | C |
| 3FM10 | LW6-10 | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.33 | 1.51 | F1/F2 | C |
| 3FM10A | LW6-10A | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.33 | 1.51 | F1/F2 | C |
| 3FM11 | LW6-11 | 6 | 11 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.59 | 1.63 | F1/F2 | C |
| 3FM12 | LW6-12 | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.62 | 1.64 | F1/F2 | C |
| 3FM13 | LW6-13 | 6 | 13 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 4.59 | 2.08 | F2+F1- | E |
| 3FM13T3 | LW6-13T3 | 6 | 13 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 4.59 | 2.08 | T3 | M |
| 3FM14 | LW6-14 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.00 | 2.27 | F2+F1- | E |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
