| Prod Model: |
3FM4(6v4.5ah) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Non-Rechargeable |
Product Description

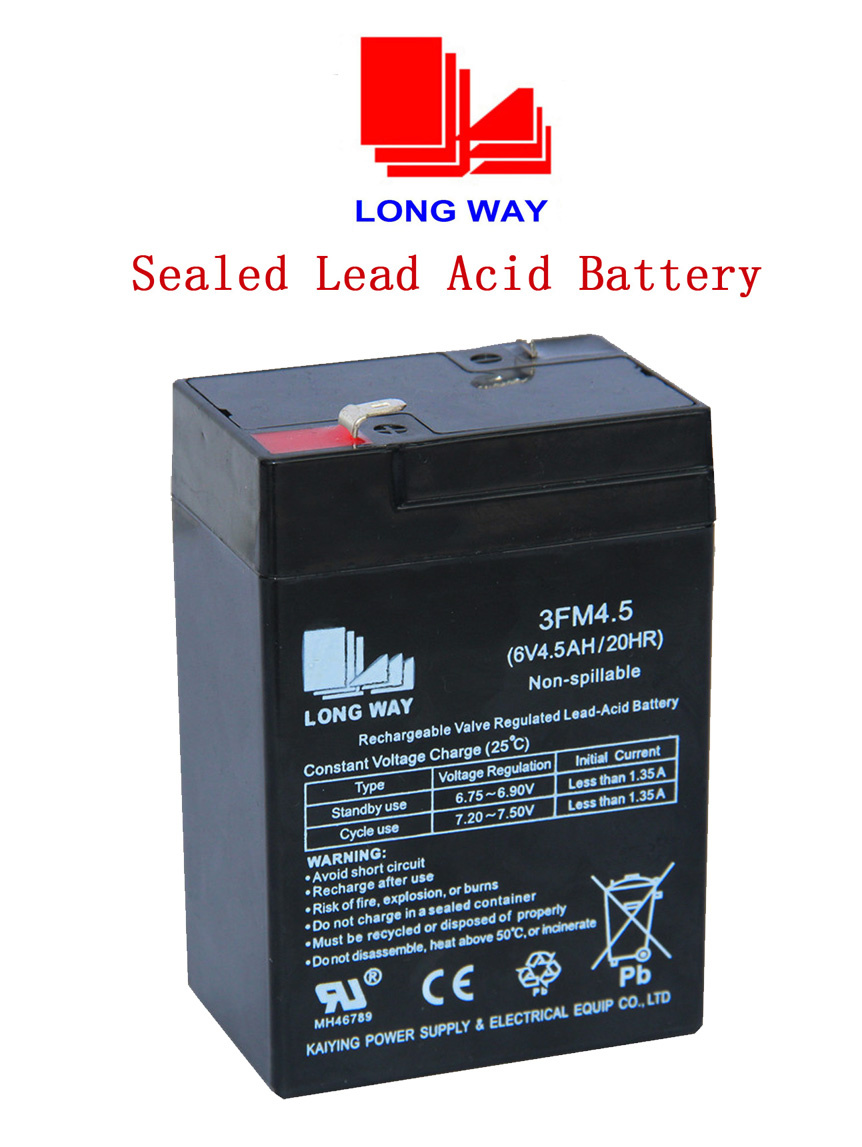

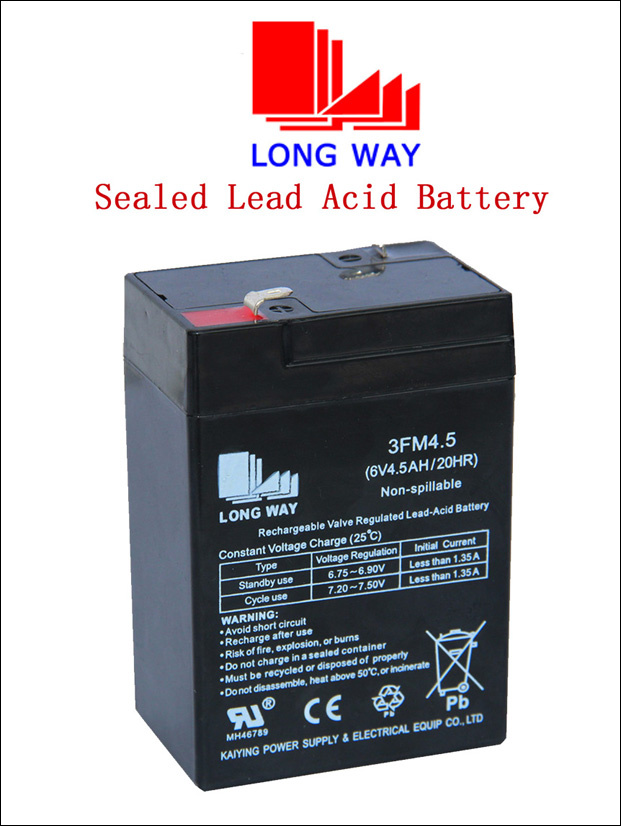

LONGWAY 6V4.5AH/20HR e-bike battery Rechargeable Lead-Acid Battery
Longway lead acid battery used for AGM VRLA/SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates
1)
Model: 3FM4.5 (6V4.5AH)
Size: 70*47*99 (Total height: 105) mm
Plates inside: 18 PCS
Terminal: F1
1C Duration: 40 minutes
Packing Qty: 20 PCS/CTN
27, 000 PCS/Container
Lead-time: 15 days for one container
Application: Emergency Lighting, Scooters, Alarm system, Lamp,
OEM is acceptable
2)General features
Stable Quality&High Reliability
Sealed construction
Environmentally friendly
Maintance-Free operation
Low pressure venting system
Heavy duty grid
Low self discharge
UL Component Recognition (MH 46789)
Our factory photo
Our certificate
If any interest, welcome to contact us freely.| Standby 6V Standard Series batteries |
| Battery Model | Nominal Voltage(V) | Nominal Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 3FM1.2 | 6 | 1.2 | 3.82 | 97 | 0.94 | 24 | 2.05 | 52 | 2.28 | 58 | 0.66 | 0.30 | F1 | C |
| 3FM2.8 | 6 | 2.8 | 2.60 | 66 | 1.30 | 33 | 3.84 | 97.5 | 4.09 | 104 | 1.21 | 0.55 | F1 | A |
| 3FM3.2 | 6 | 3.2 | 5.28 | 134 | 1.36 | 34.5 | 2.34 | 59.5 | 2.64 | 67 | 1.43 | 0.65 | F1 | C |
| 3FM3.5 | 6 | 3.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.28 | 0.58 | F1/F2 | A |
| 3FM4 | 6 | 4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.52 | 0.69 | F1/F2 | A |
| 3FM4.2 | 6 | 4.2 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.59 | 0.72 | F1/F2 | A |
| 3FM4.5 | 6 | 4.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.65 | 0.75 | F1/F2 | A |
| 3FM5 | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.83 | 0.83 | F1/F2 | A |
| 3FM5A | 6 | 5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 1.87 | 0.85 | F1/F2 | A |
| 3FM5E | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.74 | 0.79 | F1/F2 | A |
| 3FM5H | 6 | 5 | 2.67 | 67.8 | 2.64 | 67 | 3.84 | 97.5 | 4.13 | 105 | 1.79 | 0.81 | S/F1 | --- |
| 3FM5.5 | 6 | 5.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.90 | 0.86 | F1/F2 | A |
| 3FM5.5H | 6 | 5.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.94 | 0.88 | F1/F2 | A |
| 3FM6 | 6 | 6 | 3.35 | 85 | 1.89 | 48 | 3.94 | 100 | 4.17 | 106 | 2.20 | 1.00 | F1 | A |
| 3FM6.5 | 6 | 6.5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 2.65 | 1.20 | F1/F2 | A |
| 3FM7 | 6 | 7 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.43 | 1.10 | F1/F2 | C |
| 3FM8 | 6 | 8 | 3.86 | 98 | 2.20 | 56 | 4.65 | 118 | 4.65 | 118 | 3.09 | 1.40 | F1/F2 | B |
| 3FM9 | 6 | 9 | 5.94 | 151 | 1.97 | 5 | 3.70 | 94 | 3.94 | 100 | 3.20 | 1.45 | F1/F2 | C |
| 3FM10 | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.31 | 1.50 | F1/F2 | C |
| 3FM11 | 6 | 11 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.64 | 1.65 | F1/F2 | C |
| 3FM12 | 6 | 12 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.64 | 1.65 | F1/F2 | C |
| 3FM14 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.07 | 2.30 | F2+F1- | |
| 3FM14T1 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.07 | 2.30 | T1 | / |
| 3FM14T2 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.07 | 2.30 | T2 | / |
| 3FM14A | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 4.63 | 2.10 | F2+F1- | / |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
