| Prod Model: |
57SLT1.8 |
| Step Angel Accuracy: |
+/-5% |
| Resistance Accuracy: |
+/-10% |
| Inductance Accuracy: |
+/-20% |
| Temperature Rise: |
80oc. (Rated Current,2 Phase on) |
| Ambient Temperature: |
-40oc~+50oc |
| Insulation Resistance: |
100mΩ; Min.,500VDC |
| Dielectric Strength: |
600VAC,1s,1mA |
| Shaft Radial Play: |
0.06mmmax (300g-Load) |
| Shaft Axial Play: |
0.08mmmax (300g-Load) |
| Name: |
57 Stepper Motor NEMA 2 Phase |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Type: |
Magnetic-Electric |
| Brand: |
Slt |
Product Description

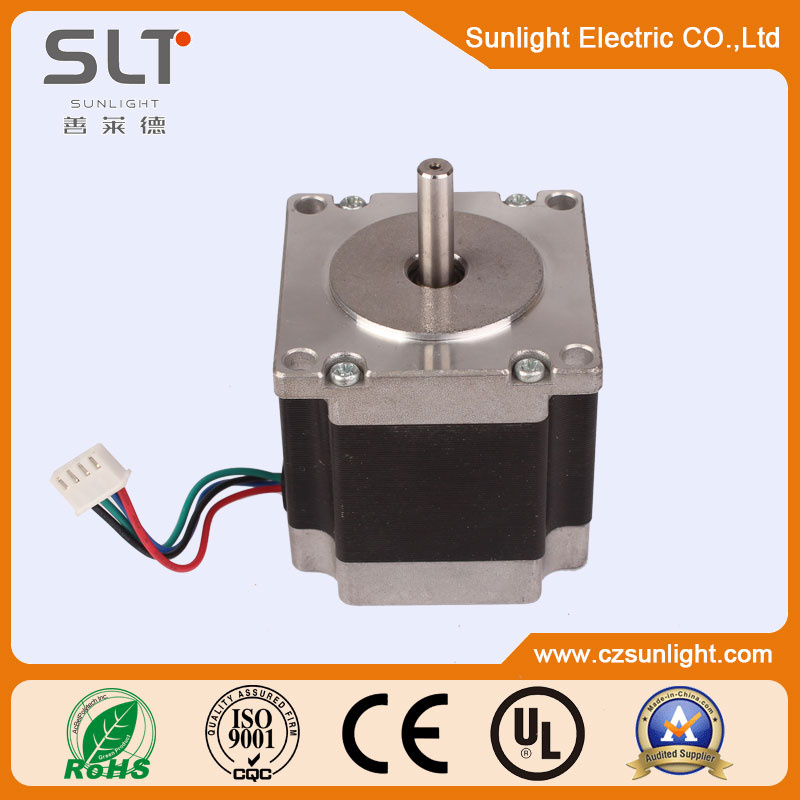

Product Description of 57 stepper motor nema 2 phase HB dc Motors
Model: 57SLT0.9Dielectric Strength: 600VAC,1s,1mA
Step Angel Accuracy: +/-5%
Resistance Accuracy: +/-10%
Inductance Accuracy: +/-20%
The specification of 57 stepper motor nema 2 phase HB dc Motors| Item | Specification |
| Step angle Accuracy | ±5%(full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80ºC. (rated current,2 phase on) |
| Ambient Temperature | -40ºC~+50ºC |
| Insulation Resistance | 100MΩMin.,500VDC |
| Dielectric Strength | 600VAC,1s,1mA |
| Shaft Radial Play | 0.06mmMax (300g-load) |
| Shaft Axial Play | 0.08mmMax (300g-load) |
0.9 Degree:| Model NO. | Rated
voltage | Current
Phase | Resistance
Phase | Inductance
Phase | Holding
Torque | Leads | Rotor Inertia | Weight | Length |
| V DC | A | Ω | mH | g-cm | | g-cm2 | Kg | mm |
| SLT57ST41MF-10A | 5.7 | 1 | 5.7 | 8 | 3.9 | 6 | 120 | 0.47 | 41 |
| SLT57ST41MF-20A | 2.8 | 2 | 4.4 | 2.2 | 3.9 | 6 | 120 | 0.47 | 41 |
| SLT57ST41MF-28A | 2 | 2.8 | 0.7 | 2.2 | 5.5 | 4 | 120 | 0.47 | 41 |
| SLT57ST56MF-10A | 7.4 | 1 | 7.4 | 17.5 | 9 | 6 | 300 | 0.7 | 56 |
| SLT57ST56MF-20A | 3.6 | 2 | 1.8 | 4.5 | 9 | 6 | 300 | 0.7 | 56 |
| SLT57ST56MF-28A | 2.5 | 2.8 | 0.9 | 4.5 | 12.6 | 4 | 300 | 0.7 | 56 |
| SLT57ST76MF-10A | 8.6 | 1 | 8.6 | 23 | 13.5 | 6 | 480 | 1 | 76 |
| SLT57ST76MF-20A | 4.5 | 2 | 2.25 | 5.6 | 13.5 | 6 | 480 | 1 | 76 |
| SLT57ST76MF-28A | 3.2 | 2.8 | 1.13 | 5.6 | 18.9 | 4 | 480 | 1 | 76 |
1.8 Degree:| Model NO. | Rated
voltage | Current
Phase | Resistance
Phase | Inductance
Phase | Holding
Torque | Leads | Rotor Inertia | Weight | Length |
| V DC | A | Ω | mH | g-cm | | g-cm2 | Kg | mm |
| SLT57ST41DF-10A | 5.7 | 1 | 5.7 | 5.5 | 3.9 | 6 | 120 | 0.47 | 41 |
| SLT57ST41DF-20A | 2.8 | 2 | 4.4 | 1.4 | 3.9 | 6 | 120 | 0.47 | 41 |
| SLT57ST41DF-28A | 2 | 2.8 | 0.7 | 1.4 | 5.5 | 4 | 120 | 0.47 | 41 |
| SLT57ST51DF-10A | 6.6 | 1 | 6.6 | 8.2 | 7.2 | 6 | 275 | 0.65 | 51 |
| SLT57ST51DF-20A | 3.3 | 2 | 1.65 | 2.2 | 7.2 | 6 | 275 | 0.65 | 51 |
| SLT57ST51DF-28A | 2.3 | 1 | 0.83 | 2.2 | 10.1 | 4 | 275 | 0.65 | 51 |
| SLT57ST56DF-10A | 7.4 | 1 | 7.4 | 10 | 9 | 6 | 300 | 0.7 | 56 |
| SLT57ST56DF-20A | 3.6 | 2 | 1.8 | 2.5 | 9 | 6 | 300 | 0.7 | 56 |
| SLT57ST56DF-28A | 2.5 | 2.8 | 0.9 | 2.5 | 12.5 | 4 | 300 | 0.7 | 56 |
| SLT57ST76DF-10A | 8.6 | 1 | 8.6 | 14 | 13.5 | 6 | 480 | 1 | 76 |
| SLT57ST76DF-20A | 4.5 | 2 | 2.25 | 3.6 | 13.5 | 6 | 480 | 1 | 76 |
| SLT57ST76DF-28A | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 4 | 480 | 1 | 76 |
The Application of 57 stepper motor nema 2 phase HB dc Motors- Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
- Home Appliance ( Electric cooker, Electric mop and other products.)
- Medical equipment and beauty products.
- Office products (such as printer, scanner......)
- Electric tools and garden tools.
Other products
