| Prod Model: |
BTP70160-0502 |
| Protection: |
IP 54 or Higher |
| Channels: |
as Per Request |
| Contact Material: |
Gold or Silver |
| Delivery Time: |
1~2 Weeks |
| Electric Noise: |
0.007ohm |
| Working Speed: |
100rpm |
| Guaranteed: |
1 Year |
Product Description

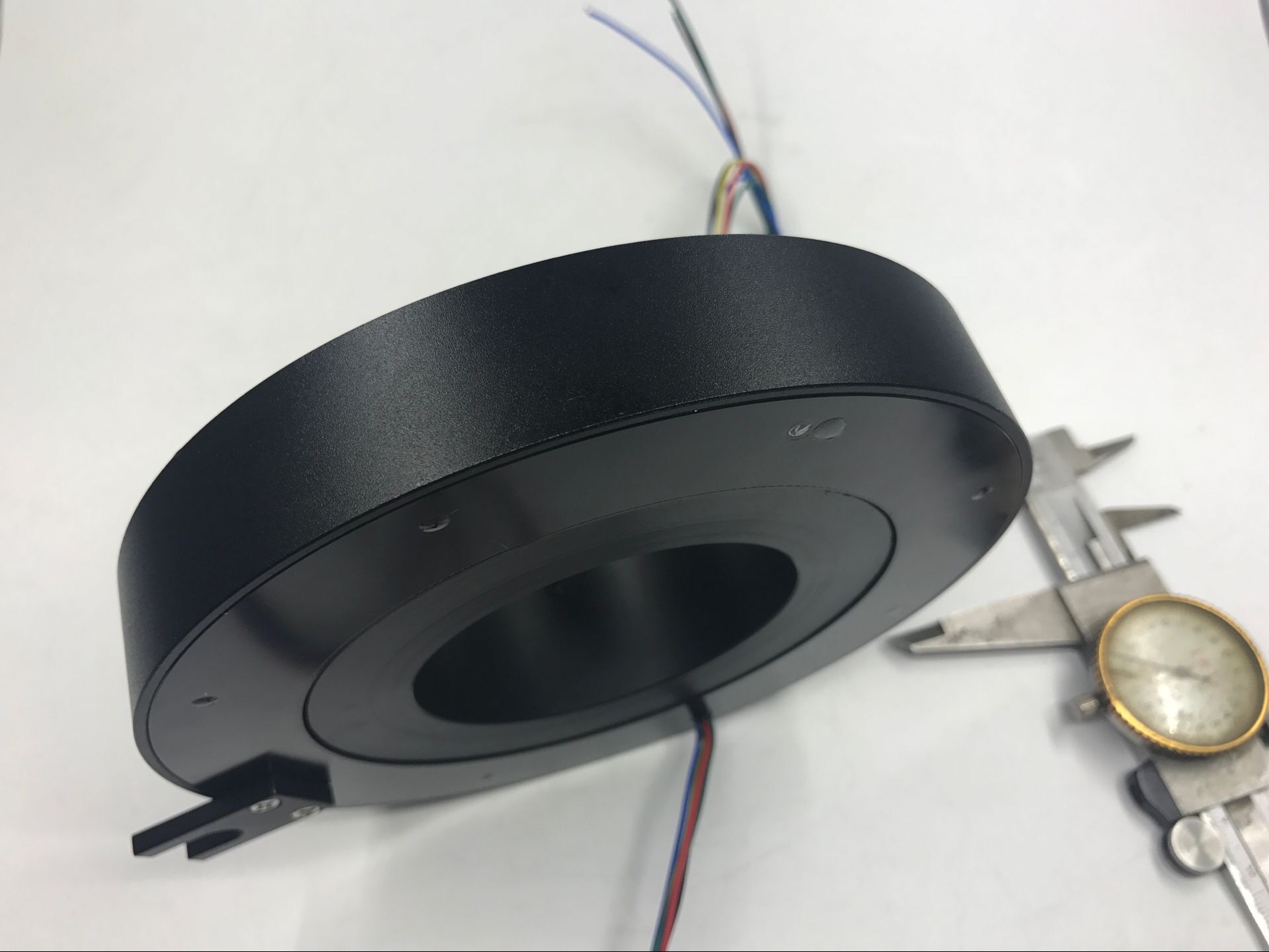

Perfect pancake slip ring with anti-vibration
The pancake approach is used when length is at a premium but diameter is less restrictive
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through hole slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring" It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints
Perfect pancake slip ring with anti-vibration
Mechanical :
| Working speed | 100rpm |
| Operating temperature | -40ºC~ +100ºC |
| Contact material | Precious metal |
| IP Grade | IP 54 |
Electrical:Perfect pancake slip ring with signal transferring at wonderful rotating
| Circuit | <54 |
| Current | 5A,10A ,15A,20A or combined rings to get higher current |
| Voltage | ≤380V, 600V optional |
| Dielectric strength | ≥1000V@50Hz between each circuit |
| Insulation resistance | 1000MΩ@ 500VDC |
| Electric noise | ≤7mΩ |
| Lead wire size | 22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated |
| Lead wire length | 200mm |
Features of Perfect pancake slip ring with anti-vibration:
Low noise
Wear-resisting (Silver to silver contacting)
Good impact resistance
Signal and current compatible
Workable in hostile environment(-40ºC~ +100ºC)
Flexible design for special requirements
Alternatives of MPerfect pancake slip ring with anti-vibration:
Circuits
Loading of each circuit
Wire length
Inner hole /outer hole diameter or length
Working speed
Gold contacting
Housing color
Typical Applications of Perfect pancake slip ring with anti-vibration:
Aerospace / Defense
• Armored vehicle turrets, IR and EO systems
• Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers and target
systems
• Fixed-wing aircraft - EO / IR trackers, fire control systems, surveillance systems and targeting systems
• Missile counter measures
• Space - solar array mechanisms• Shipboard / submersible - navigation systems and fire control radar
• Surveillance systems
Industrial
• Medical equipment and devices • Robotics• Index tables• Semiconductor handling
• Pan tilt cameras• Packaging and processing equipment • Cable reels• Wind energy• CT scanners
Marine
• Remote operated vehicles (ROV)• Seismic surveying• Oceanographic winches• Subsea
communications and control• Floating production, storage and offshore loading (FPSO) • Diving
• Marine instrumentation
• Down hole / wire logging and drilling
Advantages of slip ring manufacturer---ByTune:
Affordable price
Quality guaranteed
Response within 24 hours
Prompt delivery
Reliable package & shipment
Flexible & quick customization
Delivery time and shipment:
2 weeks ARO
By UPS ,DHL or FedEx (depends on your location) 3 days door to door service
ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...
ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.
At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.
ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
