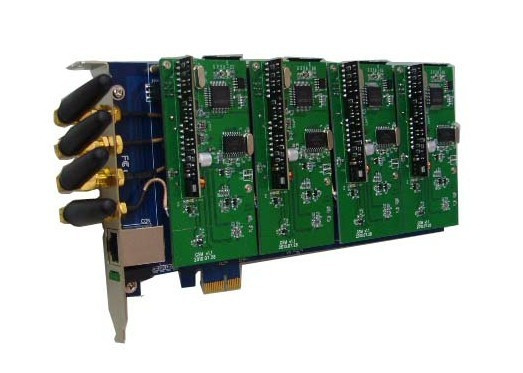

4 Ports GSM CDMA PCI E Asterisk Analog Card

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	210*105*24mm
Weight:	305g
Type1:	Wireless
Usage:	Telephone
Support Network:	Switch
Type:	Wireless

Product Description

GSM/CDMA 400 PCI Express Asterisk analog card Specification

GC400E is a 4 ports wirless Asterisk PCI Express card which is mainly applied to GSM, CDMA, PSTN and Internet environment. Support the access of GSM, CDMA, PSTN, telephone to realize GSM, CDMA, PSTN, Internet integration. It supports all functions of Asterisk PBX systems needed.

Feathers:
Support the access of wireless(GSM and CDMA), PSTN, Phone.
Support GSM, CDMA two kinds of wireless communication standard.
Support GSM: 850M/900M/1800M/1900M, CDMA: 800M.
Support 4 channels, user can choose to insert wireless, FXO or FXS module in each channel.
The PCI-E slot is based on PCI2.2.
Support the reversal function of polarity when call out by wireless.
32 bits bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention.
It supports all functions of Asterisk PBX systems needed.

Special Feathurs:
The driver of GC400E is totally compatible with TDM400P's driver_WCTDM, so user deson't need to understand much knowledge about wireless part. All programs run on TDM400P can be used on GC400E. It reduces users' burden to develope.
GC400E supports 4 channels, user can choose to insert wireless, FXO or FXS module to each channel. GC400E realizes the integrate of Wireless(GSM or CDMA) and PSTN.

There are some examples of intergrate.
(1 GSM+1 FXO)+2 FXS

(2 GSM+2 FXO)+2 FXS

(3 GSM+3 FXO)+1 FXS

4 GSM+4 FXO

Other groups are availible.
Such as: 1GSM+1CDMA+2FXO, (1GSM+1CDMA+2FXO)+1FXS+1FXO, 2GSM+2CDMA+4FXO etc. P. S: 1GSM/CDMA must match with 1FXO. FXO+PSTN Line. FXS+ telephone.
High security: It adopts tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.
Super strong Anti-interference: All logic signals urge with the special-purpose drive chip, it makes the card has super strong anti-interference. And support clock resume automatically. When the clock is interfered with the frequency deviation to happened by the external world to influence the communication, the system can reset to the clock automatically, resume normal communication.

GC400E can work in a PC with other asterisk cards, driver will distribute the voice channels automatically.
Applications:
GSM(CDMA)- VoIP gateway
Mobile IP-PBX
GSM(CDMA) Call back
GSM(CDMA) wireless bypass system
GSM(CDMA) wireless call centre.
Working hardware and software:
Interface: PCI 2.2
CPU 800+MHz
RAM 128+MB
Linux kernel 2.4. X or 2.6. X
Size and Weight
Size(L*W*H): 210*105*24MM
Weight: 305g

Working environment:
Temperature Operation: 0 to 80° C
Temperature Storage: -35° C to 120° C
Humidity: 10% to 90% Non-condensing
Voltage: 5V/12V
Power Dissipation Mas: 7.83w/39.82w

Disclaimers: Digium® Is registered trademark of Digium, Inc
Asterisk® Is registered trademark of Digium, Inc
