4 Channelsmini SD Card 3G Mobile DVR with GPS 3G WiFi

4 Channelsmini SD Card 3G Mobile DVR with GPS 3G WiFi
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: M598
Camera Channel: 8
WiFi: Support
3G: Support
GPS Chipset: U-Blox 7020
GPS Sensitivity: -159 dBm
GPS Frequency: L1, 1575.42 MHz
SD Card: Support
GPS Positioning Accuracy: 5-10m, 2D RMS
Tracking Platform: Www.Trackurcar.COM
Certificate: Ce FCC RoHS

Product Description

4 channelsMini SD Card 3G mobile dvr with gps 3g wifi

1. Product Features:

1)Metal Cover;
2)External antenna;
3)Track by 3G network;
4)Real time tracking at intervals;
5)Vedio recording in real time (50MB/h 3G rate consumption), MPEG4/H.264 compression, PAL 25fps and NTSC 30fps for each channel;
6)Compitable with 2TB harddisk or SD card (675MB/h each camera, 4 cameras can record for 28 days) ;
7)Remotely Disable/Enable engine;
8)Low power alarm;
9)Over speed alarm;
10)Geo-fence alarm;
11)Parking alarm;
12)Tired driving alarm
13)Fuel or temperature monitoring;
14)History playback;
15)Mileage statistics;
16)Reports statistics;
17)Boarding records through RFID.


2. Specifications
Items Parameters
3G ModuleHuawei MU709S
3G Network ModeWCDMA/CDMA
LBS Positioning Accuracy100-500m
3G AntennaExternal
GPS ChipsetU-blox 7020
GPS Sensitivity-163 dBm
GPS Positioning Accuracy5-25m
GPS AntennaExternal
Wifi ChipsetMT 5931
Wifi Positioning Accuracy5-25m
Wifi AntennaBuilt-in
Speed Accuracy0.1m/s
Time AccuracySynchronize with GPS
GPS DataWGS-84
Hot Start<1s
Warm Start<38s
Max Altitude18000m
Max Speed515m/s
Gravity Acceleration<4g
Video Input4/8 channels composite video input
Video OutputSingle composite video output
Video StandardPAL(25fps)/NTSC(30fps)
Image CompressionH.264 Main profile
Image FormatCIF/HD1/D1 optional
Video Steaming StandardISO14496-10
Video BitrateCIF: 1536Kbps-128Kbps; HD1: 2084Kbps-380Kbps;
D1: 2048Kbps-400Kbps
Audio Input4/8 channels audio input
Audio OutputSingle audio output
Audio Bitrate8KB/S
Recording ModeSynchronize with Video
Working Voltage8VDC~50VDC
Working Current50mA~160mA
Operating Temperature-20ºC-65ºC
Humidity5%-95%
Size210mm×150mm×60mm
StorageCompitable with 2TB harddisk or SD card
Serial PortRS232 1pc; RS485 2pcs
Digital Input10pcs
Digital Output2pcs
A/D Input1pc

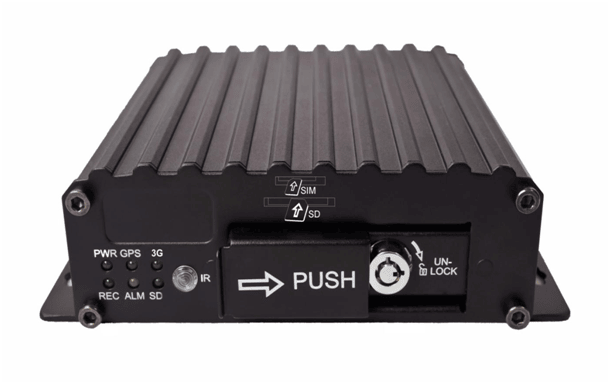

3. Detailed Photos








ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.

Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.

With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.

We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
