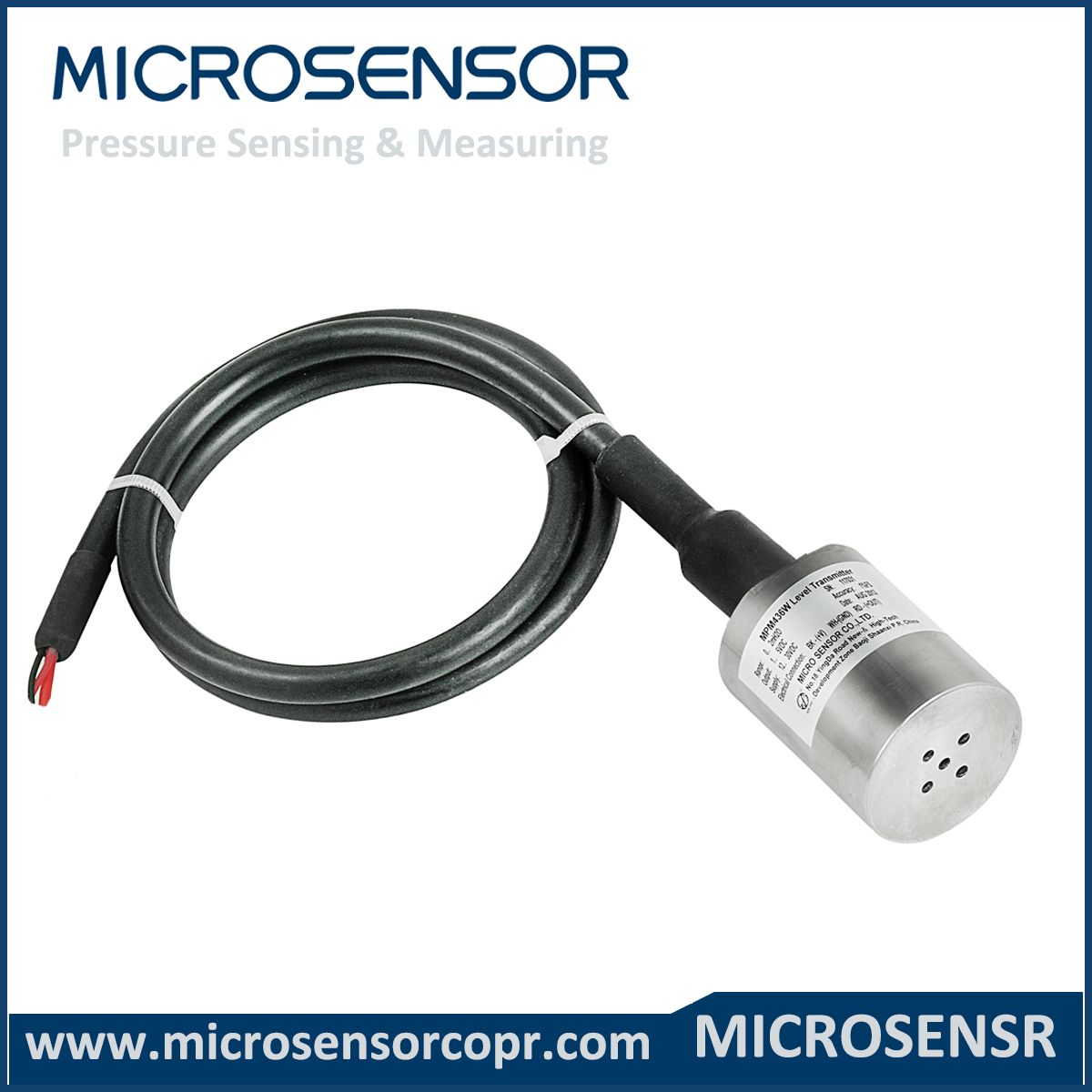

4~20mA Two Wires Low Range Level Transmitter MPM436W
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MPM436W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~0.5...2m |
| Accuracy: |
+-0.5%Fs(Typ.) |
| Overpressure: |
10 Times Fs |
| Power Supply: |
15~28VDC |
| Output Signal: |
4~20madc |
| Storage Temp: |
-30~85c |
| Operation Temp: |
-30~70c |
| Diaphragm: |
Stainless Steel |
| Protection: |
IP68 |
| Housing: |
Stainless Steel |
| Accuracy Grade: |
0.5%Fs(Typ.) |
Product Description
4~20mA Two Wires Low Range Level Transmitter MPM436WFeatures:
1.Submersible;
2.Water-proof connecting box;
3.Removable top cap;
4.Protection class IP68;
5.2-Wire
Certificates:
1.CE;
2.Exia IICT6;
3.CCS
Applications:
1.Oil;
2.Chemical industry;
3.Power Station;
4.City water;
5.Level measurement;
6.Drainage and hydrology
Specification| Range | MPM426W | 1 2 5 10 20 50 100 200mH2O |
| MPM436W | 0.5 1 2mH2O |
| Overpressure | 1.5 times FS (MPM436W: 10 times FS) |
| Accuracy | MPM426W | +0.25%FS(typ.) +0.5%FS(max.) |
| MPM436W | +0.5%FS(min.) +1.0%FS(max.) |
| Stability error | MPM426W | +0.1%FS(typ.) +0.2%FS(max.) range>20mH2O |
| +10mmH2O(typ.) +20mmH2O(max.) range≤20mH2O |
| MPM436W | +5mmH2O(typ.) |
| Temp. drift | MPM426W | | Zero drift, %FS/ºC | Sensitivity drift, %FS/ºC |
| Rang>10mH2O | 0.005(typ.) | 0.01(max.) | 0.02(max.) |
| Range≤10mH2O | 0.01(typ.) | 0.02(max.) | 0.02(max.) |
| Range≤5mH2O | 0.015(typ.) | 0.03(max.) | 0.02(max.) |
| Range≤2mH2O | 0.025(typ.) | 0.05(max.) | 0.02(max.) |
| MPM436W | ≤±0.15%FS/10ºC(-20ºC~+70ºC) |
| ≤±0.2%FS/10ºC(-30ºC~-20ºC) |
| Transmitting | 2-wire | 3-wire | 3-wire |
| Power supply | 15~30VDC(Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Load (Ω) | <(U-15)/0.02A* | <(U-15)/0.02A | >5k |
| Material contacting with media | Housing: SS lCr18Ni9Ti | Seal parts: Viton |
| Rubber casing: NBR | Cable: Φ7.5mm PVC/Polyurethane cable with vented tube |
| Diaphragm: SS 316L(MPM426W);96% alumina ceramic(MPM436W) |
| Operation temp. | MPM426W | -10ºC~80ºC; Intrinsic safe version: -10ºC~60ºC |
| MPM436W | -30ºC~+70ºC; |
| Storage temp. | -40ºC~100ºC(MPM426W);-30ºC~85ºC(MPM436W) |
| Protection | IP68 (sensor part); IP65 (connection box) |
| Ex-proof class | ExiaIICT6 |
| | | | | | | | | | | | |

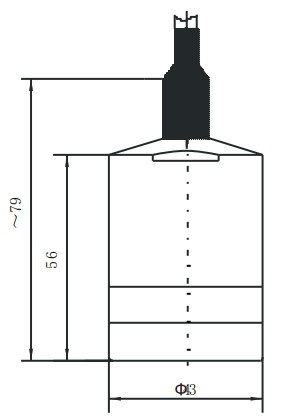

Outline Construction:
Order Guide| MPM426W/436W | Submersible Level Transmitter |
| | | Range (mH2O) | [0~XmH2O]L L: cable length; suggested L-X=(1~2)m |
| | | | code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | Diaphragm | Pressure port | Housing | Only for MPM426W |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | 25 | Tantalum | SS | SS |
| | | | | Code | Others |
| | M1 | 0~100% hand pointer indicator |
| | Ya | Aluminum connection box with display |
| | Yb | Aluminum connection box without display |
| | Yc | MS200 water-proof connection box(default) |
| | Yd | PD140 lightening-proof protection device |
| | i | Intrinsic safe version ExiaIICT6 |
| | C1 | M20×1.5 male, face type seal | Only for MPM426W |
| | C3 | G1/2 male |
| | C5 | M20×1.5 male, waterline seal |
| | T | Ship-use |
| | F1 | Fixed flange |
| | | | | | | | | |
| MPM426W [0~3mH2O]5 E 22 YiC1 the whole spec |
| | | | | | | | | | | | | | |
