4-20mA Low Differential Pressure Transducer Application for HVAC
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WNK268 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Signal: |
4~20mA |
| Housing Material: |
Aluminum14 |
| Stability: |
0.8%F.S./Year |
| Maximum Static Pressure: |
70 Kpa |
| Accuracy Grade: |
0.1, 0.2, 0.5 |
| Pressure Range: |
-100kpa~+100kpa |
Product Description

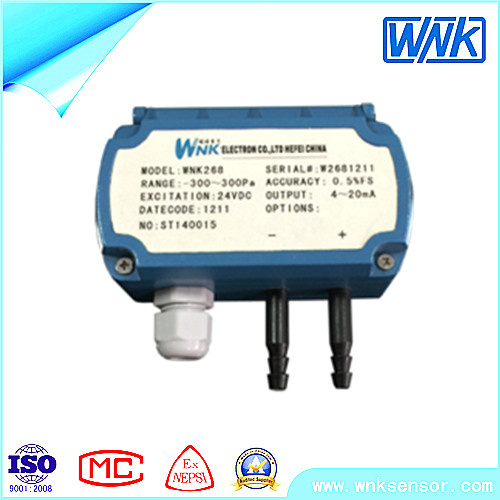

WNK268 Micro Low Differential Pressure TransmitterWNK268 intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air ,pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
ApplicationIt is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc | Technical Data |
| Applicable media | Gas |
| Pressure range | -10Pa~100Pa, -100kPa~+100kPa |
| Pressure Measurement | Gauge pressure, Differential pressure |
| Accuracy | 0.1%, 0.2%, 0.5% |
| Stability | 0.8%F.S./Year |
| Maximum static pressure | 70 KPa |
| Max overload | 250% of sensor range |
| Output signals | 4~20mA |
| Housing material | Aluminum14 |
| Induct Pressure Connection: | M 8x1 female or Ø 8 dowel connection |
| Power Supply | Non-explosion: 10.5~45V DC |
| EEX ia:10.5~30 V DC |
| Ambient temperature | -40~85ºC |
| Compensation temperature | -10~70ºC |
| Working temperature | -10~70ºC |
| Ex-proof | Exia II CT4, other option per request |
| Net weight | 347.5g |
For more information, please contact us for product manual. Why Choose us?
1. we are manufacturer, with more than 12 years producing experience in our field.
2. Our produce quality is guaranteed, since 100% products we do temperature compensation and aging test before shipment. Customer specific requirement /ODM/OEM is welcome.
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
