| Prod Model: |
WP380A |
| Resolution: |
<10m(Range)--1mm; >=10m (Range)--1cm |
| Blind Area: |
0.3m~0.6m |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Operation Temperature: |
-25~55 Celsius, |
| Name: |
Liquid Ultrasonic Level Transducers |
| Measurement Range: |
0~5m, 10m, 15m |
| Type: |
Ultrasonic |
Product Description

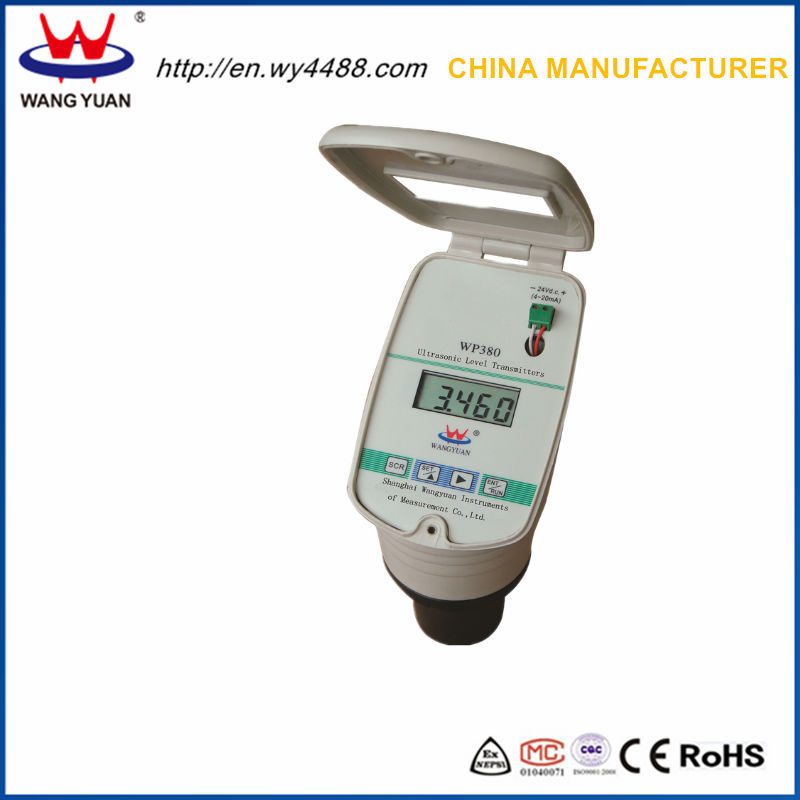

WP380 Series 4-20mA Liquid Ultrasonic Level Transducers
These accurate and reliable sensors are designed for the most difficult fluids to monitor including ultrapure, dirty, coating, scaling or corrosive types.
Typical Media:
Acids
Wastewater
Inks and Paints
Slurries
Food and Beverage
Semiconductor Process Chemicals
Oils and Petroleum Distillates
Application:
This series 4-20mA Liquid Ultrasonic Level Transmitters can be used to measure various liquids or solids level, also measure distance in:
Water and Waste Water
Control Automation
Chemical Feed
Food and Beverage
Acids, Inks, Paints
Slurries
Waste sump
Day tank
Oil tank
Process vessel and etc.
Description
WP380 series 4-20mA Liquid Ultrasonic Level Transducers are an intelligent non-contact level measuring instrument, which can be used in bulk chemical, oil, and waste storage tanks, and it's ideally suited for challenging corrosive, coating or waste liquids. This transmitter is broadly selected for atmospheric bulk storage, day tank, process vessel and waste sump application. Media: Ink, polymer
WP380 series are easy to install and do not come in contact with the liquid.
WP380 Ultrasonic water level Transducer uses sound waves to measure liquid or solid level. Fast, accurate Measurements are possible in the field or anywhere without the use of down-hole water level meters. The Ultrasonic Level Meters are lightweight, compact, versatile, and easy to operate. As long as the obstructions take up no more than half of the bore area the meter will not suffer any loss of accuracy.
Features
Accurate and reliable sensing method
Ideal technology for difficult fluids
Sized and priced for most applications
Easy to install-- simple to use
Specification
Measurement range: 0~5m, 10m, 15m
Output: 4-20mA (2wire)
Resolution: <10m(range)--1mm; >=10m (range)--1cm
Blind area: 0.3m~0.6m
Accuracy: 0.2%FS, 0.5%FS
Operation temperature: -25~55Degree C
Protection grade: IP65
Supply voltage: 4 bits LCD
Work mode: Measure distance or level (optional)
Ordering guide: WP380A-(0-5m)-0.5%FS-4-20mA-24VDC
