| Prod Model: |
GDYD-53D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Voltage: |
0-50kv |
| Capacity: |
0-3kVA |
| Test Current: |
0-60mA |
| Power Supply: |
AC220V±10%, 50Hz ± 2% |
| Application: |
Instrument |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Usage: |
Test and Measurement Instruments |

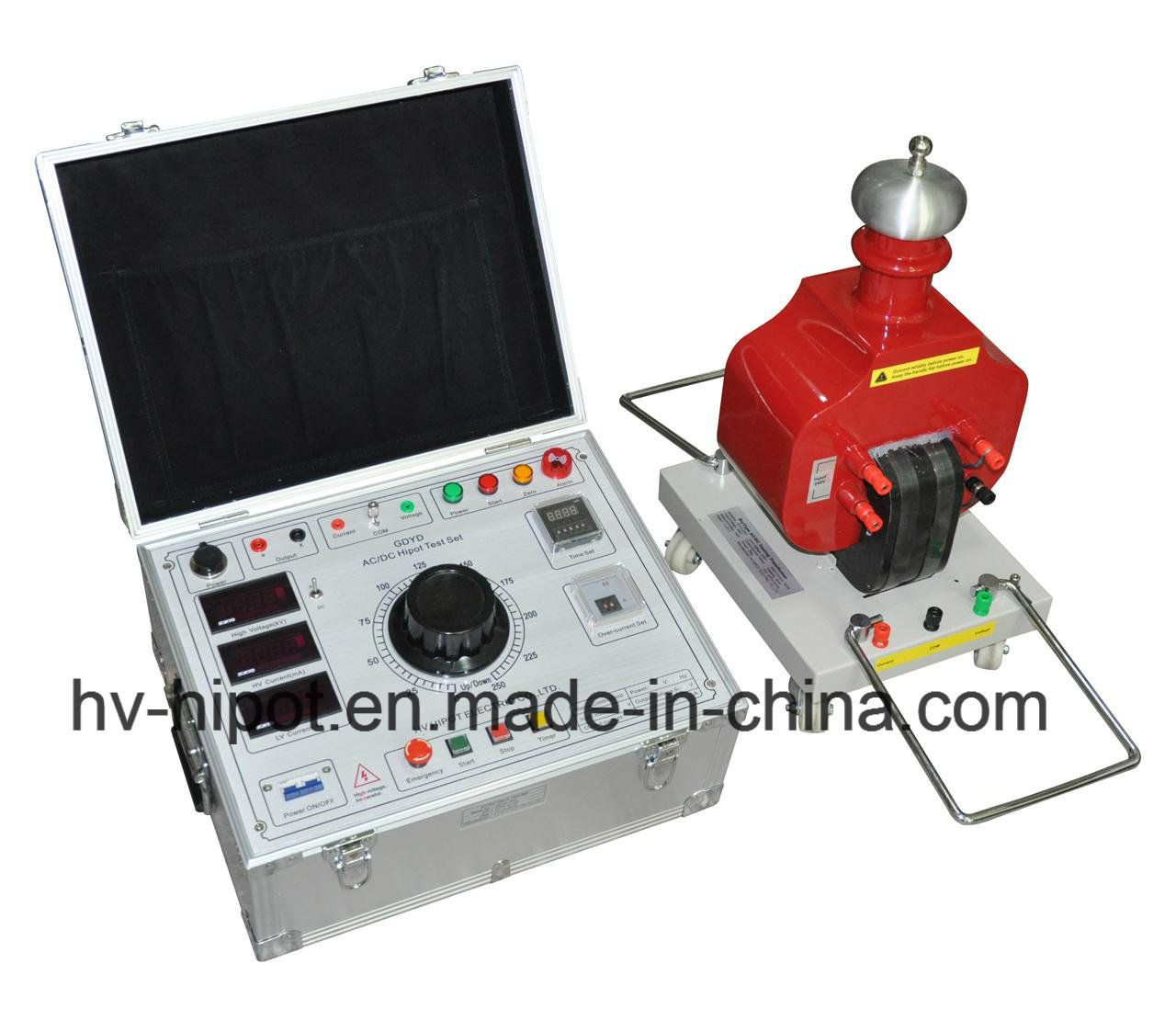

Product Description
AC Hipot testing is the effective and direct way to test insulation strength for electric equipment, apparatus or machines. It checks dangerous flaws which assure electric equipment continuous working. Typical applications include testing of transformers, switchgear, cables, capacitors, aerial motors platforms, hot sticks bucket bricks, vacuum bottles and other related equipment like vacuum interrupters, blankets, ropes, gloves, hydraulics hose, instruments transformers generators.
Features
Digital display panel mounted controls & indicators with easy to read legend.
Monitoring high voltage side voltage,low voltage side current and indicator of zero, power, working start,timing.
Over-current protection,zero-starting protection,sound and light alarm.
Continuously variable output from zero to full voltage.
Adjustable over current protection,with trip levels variable from 0 to 100%.
With new type time relay,time rang is more wider (1S ~ 99H).
Using the latest current relay, more accurate and reliable.
Light weight,small size,easy to move.
Technical Specifications
| Input | AC220V ± 10% |
| Frequency | 50Hz ± 1 |
| Output | 0-50kV, AC RMS ; |
| Rating | 100%Rated-1minute, 50%-continuous |
| Capacity | 3kVA |
| HV Source | Dry type testing transformer |
| Output control | Manual control |
| Voltage accuracy | ≤ 1.5% (F.S) |
| Current Accuracy | ≤ 1.5% (F.S) |
| Timing range | 1s -99h |
| Metering | Digital display, kV meter: AC 0-50kV, mA meter: AC 0-60mA |
| Humidity | 85% RH |
| temperature | -20ºC~50ºC
|
HV Hipot Co. Is a high-tech enterprise professionally engaged in R & D, manufacture, and marketing of power testing products, instrumentations, power industry automation systems, which are supplied for national power companies, metallurgy petrochemical corpations, factories and public institution.
Established in 1997, we have developed Resonance hipot tester, Partial-discharge tester, Power-frequency AC/DC hipot tester, Intelligent control systems, HV circuit breaker tester, Relay protection tester successively, which achieved qualifications and honors of "High-tech enterprise certification", "ISO9001 quality management system certification", "Electrical Measuring&Testing Association of Hubei Province".
In the last years, the company have participated actively in project R&D of High voltage test and Energy saving&environmental protection with State grid corporation, HV research institution and Wuhan University.
We own 18 technicians, who form a strong R & D team and high-quality sales team. Years of experience and strong R&D support made us become a leader in the field of power on-line testing. The domestic market have been expanded to many provinces and cities nationwide, and our products have been recognized by diverse range of industrial sectors. The business is increasing every year.
Meanwhile, we have also been actively marketing in international market. Until now, our products have been exported to Australia, Russia, India, Pakistan, Vietnam, Middle East. The reliable performance and competitive price of our products have obtained us high praise from our overseas customers.
With the spirit of "professionalism, integrity, responsibility, innovation", we will always develop better products and provide our customers with high quality products and satisfactory services.
