3D Printer Stepper Motor with NEMA17 0.9degree Size 28mm Length with 1 Meter Leading Wires

Name: 3D Printer Stepper Motor with NEMA17 0.9degree Size 28mm Length with 1 Meter Leading Wires
Brand: all-electronics-online.com
SKU: 838205945
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 4-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HM1006
Current:	0.6
Holding Torque:	1kg.Cm
Step Angle:	0.9 Degree
Rated Volage:	5.4V
Resistance/Phase:	9Ω
Inductance/Phase:	9mh
No Of Leads:	4
Rotor Inertia:	20g.Cm2
Detent Torque:	90g.Cm
Motor Length:	28mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

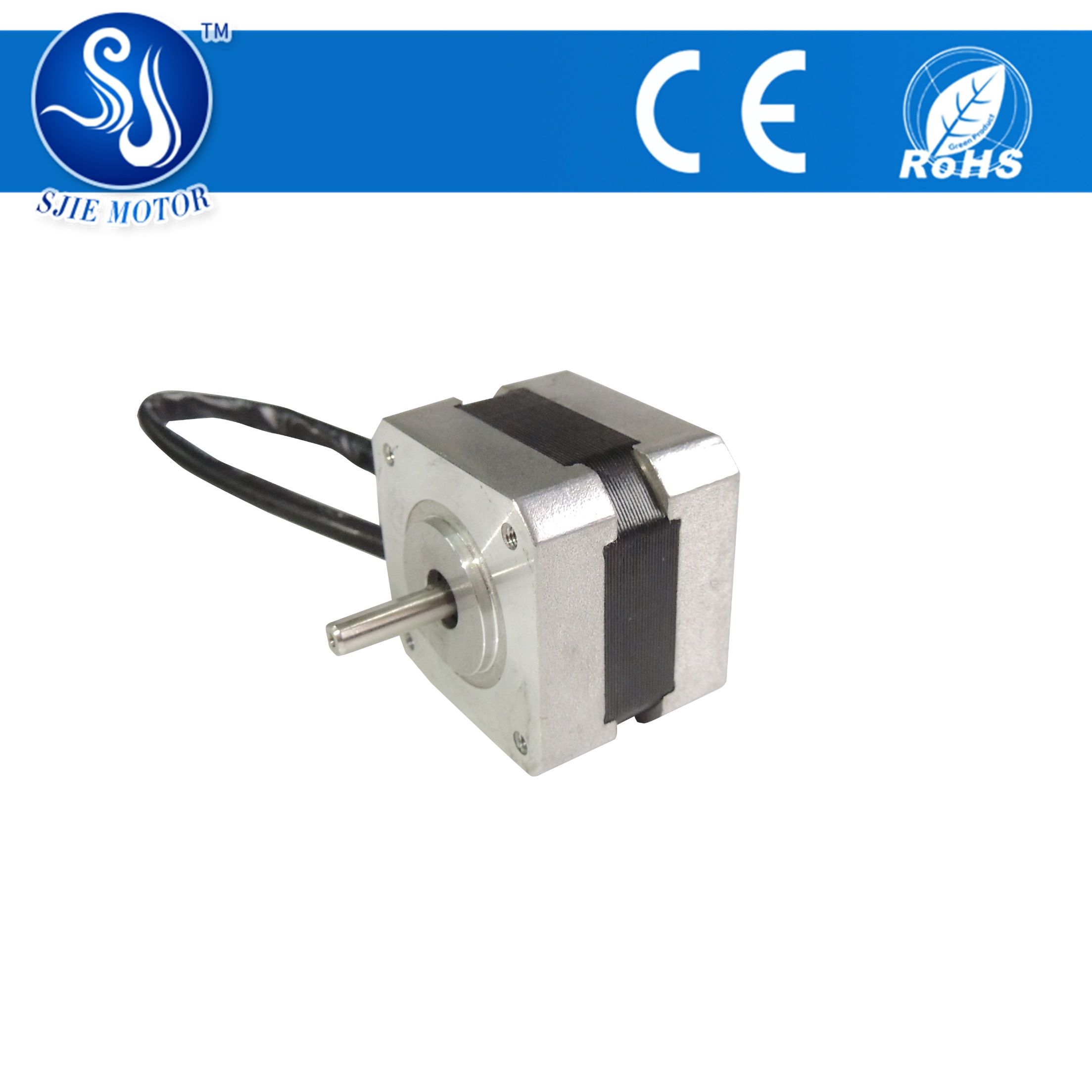

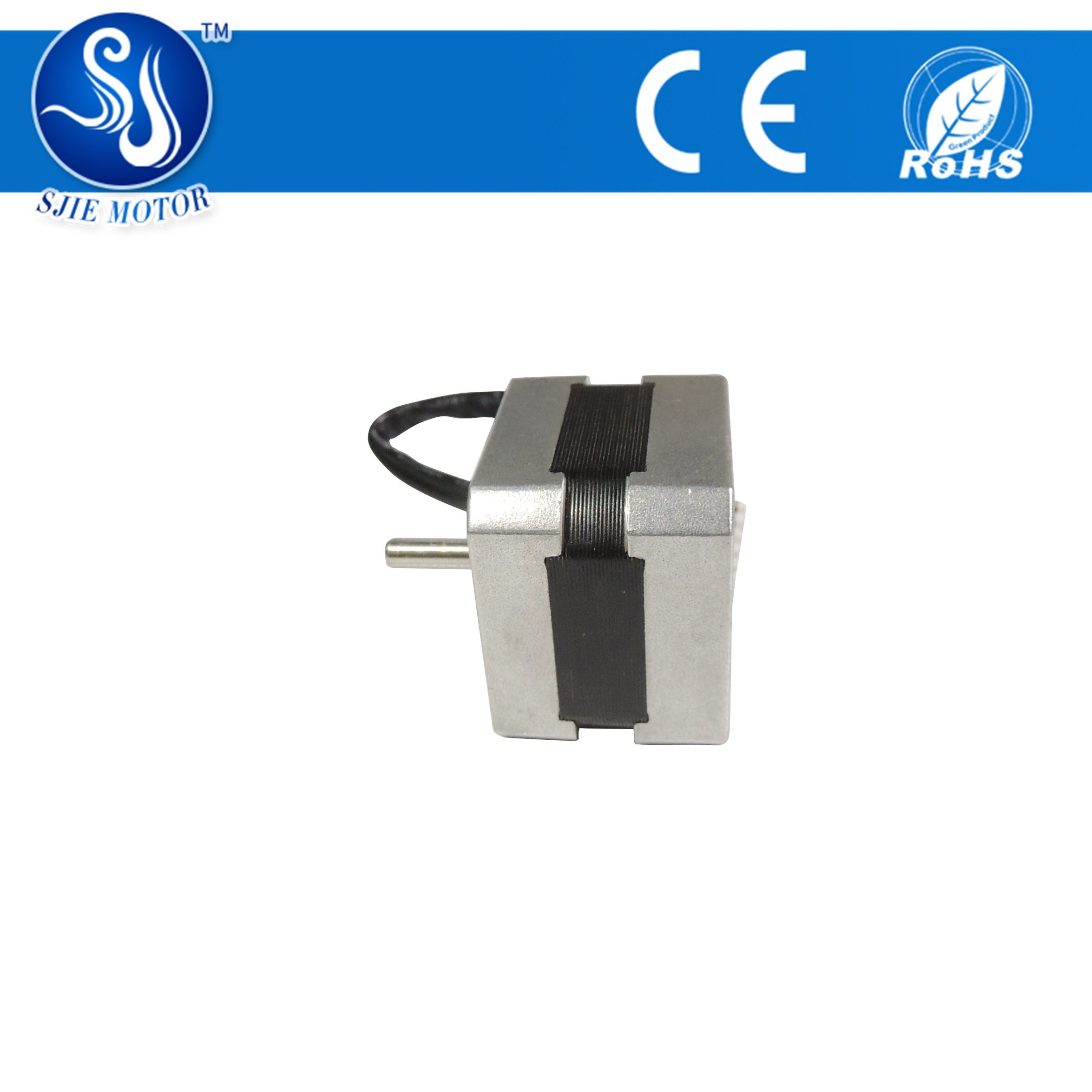

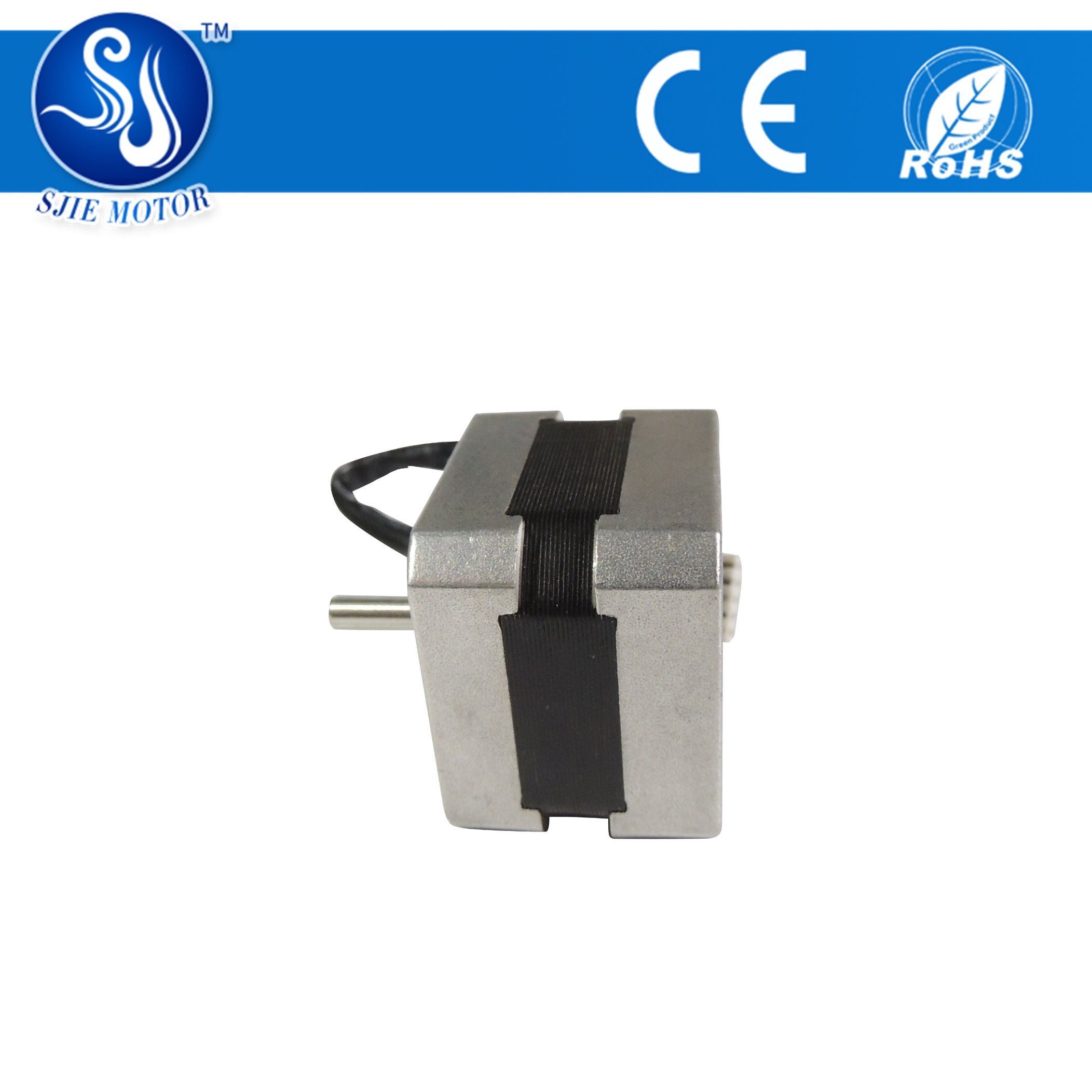

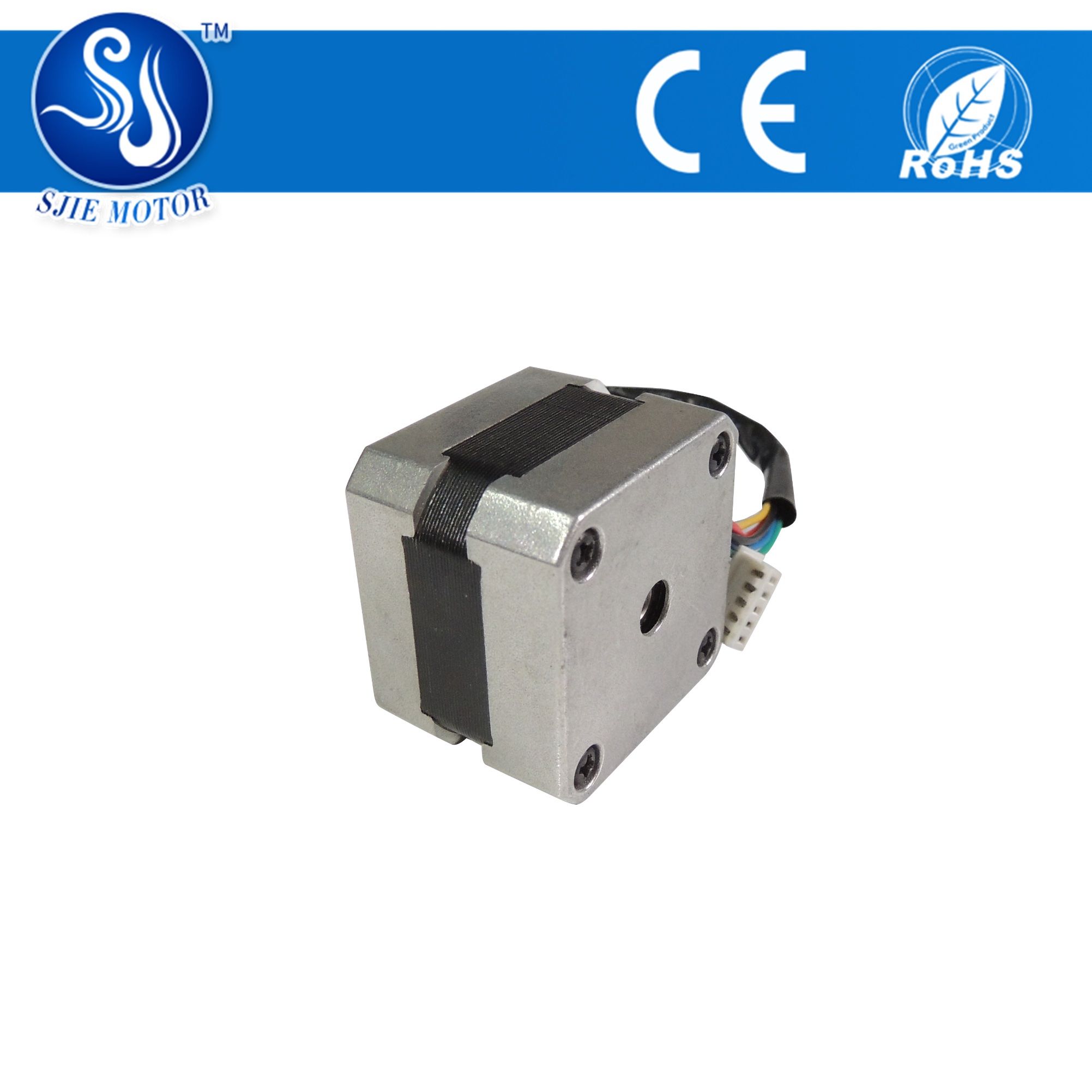

Product Photos:

Product Description:

1.8degree Size 28mm High Torque Hybrid stepper motor.

28mm size stepper motor,

NEMA42stepping motor,

2 phase 28mm stepper motor

Stepper motor 28mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

Item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step, no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle Length	Current	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(kg.cm Min)	(g.cm Max)	(g.cm²)	(No.)	(g)
42HS1006	0.9	28	0.6	9	9	1	90	20	4	150
42HS1613	0.9	34	1.3	2.4	3.6	2	120	34	4	220
42HS1617	0.9	34	1.7	1.2	2.2	2	120	34	4	220
42HS1604	0.9	34	0.4	30	45	2	120	34	4	220
42HS1604-6	0.9	34	0.4	30	22	2	120	34	4	220
42HS2217	0.9	40	1.7	1.5	3.8	4	180	54	4	280
42HS2213	0.9	40	1.3	2.5	6.2	4	180	54	4	280
42HS2212	0.9	40	1.2	3.2	3.8	3	180	54	4	280
42HS2204	0.9	40	0.4	30	34	3	180	54	4	280
42HS3017	0.9	48	1.7	1.8	4.0	4	220	68	4	350
42HS3013	0.9	48	1.3	3.0	7.0	4	220	68	4	350
42HS3023	0.9	48	2.3	1.2	2.0	4	220	68	4	350
42HS3004	0.9	48	0.4	30	28	3	220	68	4	350
*Note:We can manufacture products according to customer's requirements.

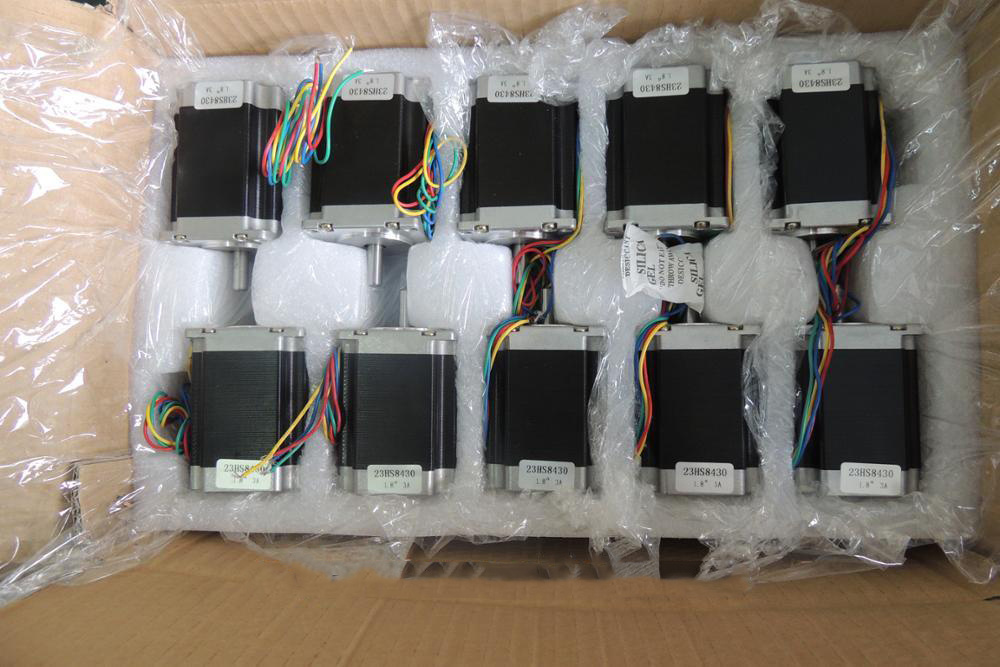

About our Packing:

Except 2 phase and 3 phase stepper motor, we also supply close loop stepper motor, planetary gear stepper motor, hybrid stepper motor driver, power supply and so on.
