0.333V Split Current Transformer in China
Price: |
US $ 6/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
GWCTSA GWCTSB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Rating: |
0.6va |
Rated Loadd: |
1, 2.5, 5.0, 10, 30va |
Rated Secondary: |
Ma or 0.333-3.53VAC |
RoHS Compliant: Ce-Approved: |
Rated Primary Current: 100-300AAC |
Frequency: 50/60Hz: |
Operating Voltage:600VAC |
Isolated Voltage: 2,500V AC: |
Coil Structure: Toroidal |
Accuracy Class:: 0.5, 1.0, 3.0 Class Co: |
Low Cost: Water Proof |
Shell Material:PBT Or ABS: |
0.8foot(240mm), UL 1015, Twisted Pair, 0.34 |
Secondary Ratios Available: 5.0,1.0AAC: |
Phase: Single |
Application: |
Audio |
Phase: |
Single |
Winding Type: |
Auto-transformer |
Brand: |
Grewin |
Product Description
![](/proimages/44f3j00CtuTwapEFsgQ/0333v-split-current-transformer-in-china.jpg)
![](/proimages/44f3j00CQHtbZqcnMzA/0333v-split-current-transformer-in-china.jpg)
We can pack all the finished transformers into export standard cartons with strong pallets so that can make sure the goods reach safety to your destination place.

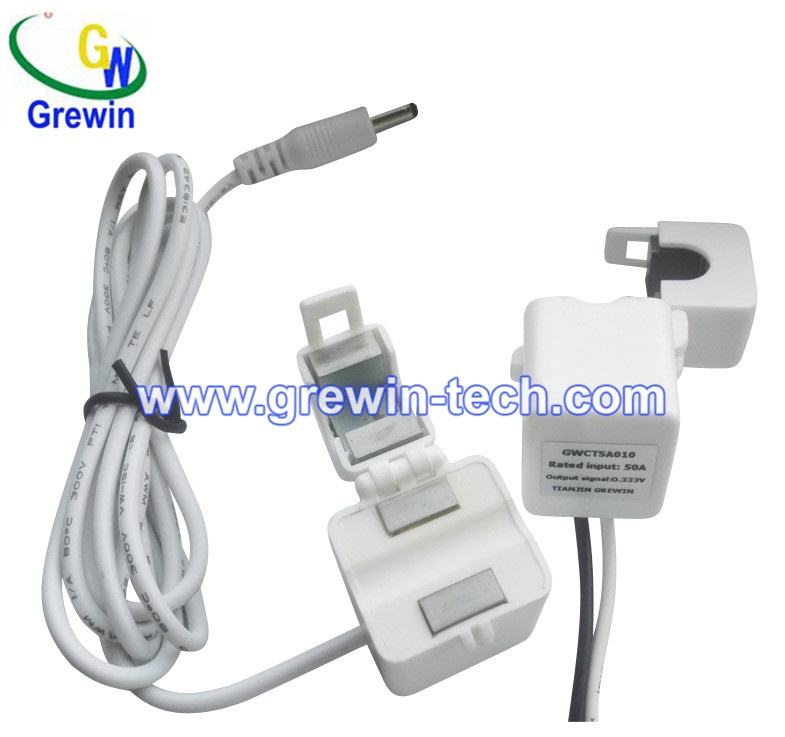

Grewin's Split core current Transformer:
Key Specifications/Special Features:
A. Power rating: 0.6VA
Frequency range: 50/60Hz
Rated system voltage: 380V AC
Isolated voltage: 2,500V AC
Operating temperature range: -40 to +85°C
Storage temperature range: -45 to +90°C
Terminals: PC board or wire assembly
Conforms to IEC 60044-1
UL-/CE-approved and fully RoHS-compliant
Applications: current measurements and power meter
![](/proimages/44f3j00gabERkTITZuo/0333v-split-current-transformer-in-china.jpg)

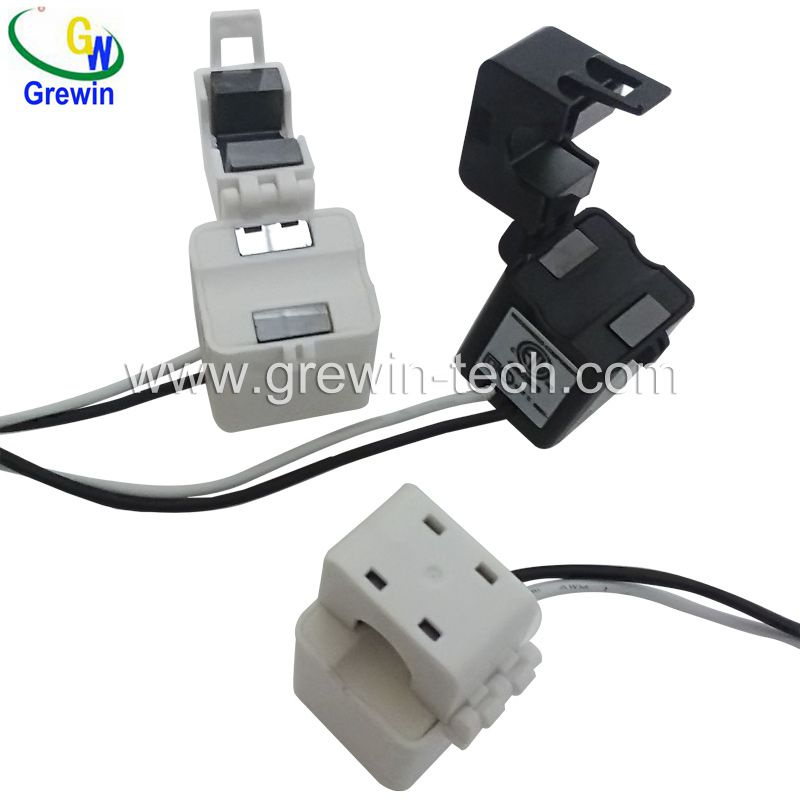

B. Split Core Current Transformers \mA or 0.333-3.53V Rated Secondary Output
1.Applications:
Current, power, energy, monitoring devices;
Relay protection devices;
Power Factor Correction devices.
2. Specifications:
Rated Primary current: 100-5000Aac;
Rated Secondary current:5 or 1Aac;
Rated load: 1, 2.5, 5.0, 10, 30VA;
Accuracy: 0.5, 1.0, 3.0 Class;
3.Rated Short-time thermal current (Ith):20I
Rated Dynamic current (Idyn):2.5Ith;
Case Material: UL flame retardant rating 94-V0;
Highest Voltage for Equipment Um (rms):720 Vac;
Rated Power-Frequency Withstand Voltage;
(rms):3,000 Vac
Frequency Range:50/60Hz;
Operating Temperature:-15 to degree;
Standard:IEC 60044-1.0.333-3.53V split core current transformer with core current
![Split Core Current Transformer](/proimages/44f3j00CTIaqOoJLvgd/0333v-split-current-transformer-in-china.jpg)
TIANJIN GREWIN TECHNOLOGY CO.,LTD. |
GWCTSA series split core current transformer |
Part number | Rated input(A) | Second output(V) | Accuracy class | Limit primary current(A) | Accuracy class | Frequency(Hz) | OutlineDimensions ID-L-W-H(mm) | Unit weight | Turn ratio | Output cable |
GWCTSA005 | 5 10 15 | 0.333 | 1.0 3.0 | - | - | 50-400 | 5.0-25.0-22.5-34.5 | 30g | 3000:1 | wire(1m) |
GWCTSA010 | 5,10,20,50,75 | 0.333 | 1.0 3.0 | 120 | 5P 10P | 50-400 | 10-29.4-26.4-41.7 | 50g | 3000:1 | wire(1m) |
GWCTSA016 | 75,100,150 | 0.333 | 0.5 1.0 | 300 | 5P 10P | 50-400 | 16-36.9-39.2-52.9 | 100g | 3000:1 | wire(1m) |
GWCTSA024 | 100,150,200,250 | 0.333 | 0.5 1.0 | 540 | 5P 10P | 50-400 | 24-51.2-47-70.2 | 250g | 3000:1 | wire(1m) |
GWCTSA035 | 200,300,400,600 | 0.333 | 0.5 1.0 | 600 | 5P 10P | 50-400 | 35-65.8-51.2-83.5 | 400g | 3000:1 | wire(1m) |
![Split Core Current Transformer](/proimages/44f3j00eELtcAqlABrm/0333v-split-current-transformer-in-china.jpg)
GWCTSA Series Split Core Current Sensor (Specifications) |
Rated Primary current | 5-600A |
Rated Secondary current | 0.333V-3.53V |
Rated load | 1, 2.5, 5.0, 10, 30VA |
Accuracy | 0.5, 1.0, 3.0 Class |
Rated Short-time thermal current (Ith) | 20In |
Rated Dynamic current (Idyn) | 2.5Ith |
Case Material | UL flame retardant rating 94-V0 |
Highest Voltage for Equipment Um (rms) | 720 Vac |
Rated Power-Frequency Withstand Voltage(rms) | 3,000 Vac |
Frequency Range: | 50/60Hz |
Operating Temperature | -15ºC to 50ºC |
Standard | IEC 60044-1 |
Accessories | Supplied with feet for base mounting if required |
Certification | RoHS compliant CE&ETL approved |

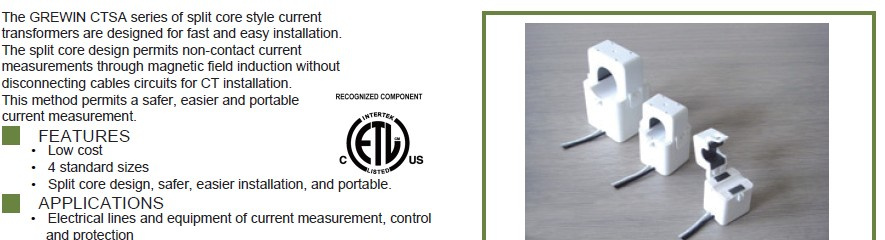

GWCTSA Series Split Core Current Sensor (Features) |
Low cost |
5 standard sizes |
Split core design, safer, easier installation, and portable |
GWCTSA Series Split Core Current Sensor (Applications) |
Measures AC current flow to electric motors, lighting, air condition equipment, etc. |
Compatible with HVACtemperature control, power management, building |
The GREWIN CTSA series of split core ct style current sensors are designed for fast and easy installation.The split core design permits non-contactcurrent measurements through magnetic field induction without disconnecting cables or busbar circuits for CT installation. This method permits a safer, easier and portable current measurement.
0.333-3.53V rated secondary output split core current transformer :
Model No 1 :GWCTSA010
Ratio : 3000:1
Rated input: 5A 10A 20A 50A 75A
Accuracy class: 1.0s 3.0s
Rated primary current :120A
Protection: 5 times protection ,10 times protection like 25A 50A 100A 200A 250A 385A 500A 750A
Model No.2 :GWCTSA016
Ratio :3000:1
Rated input: 75A 100A 150A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 300A
Protection : 5 times Protection, 10 times protection
Model No. 3:GWCTSA024
Ratio : 3000:1
Rated input: 100A 150A 200A 250A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 540A
Protection : 5 times Protection, 10 times protection
Model No.4:GWCTSA035
Rated input: 200A 300A 400A 600A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 600A
Protection : 5 times Protection, 10 times protection
Frequency: 50--400Hz

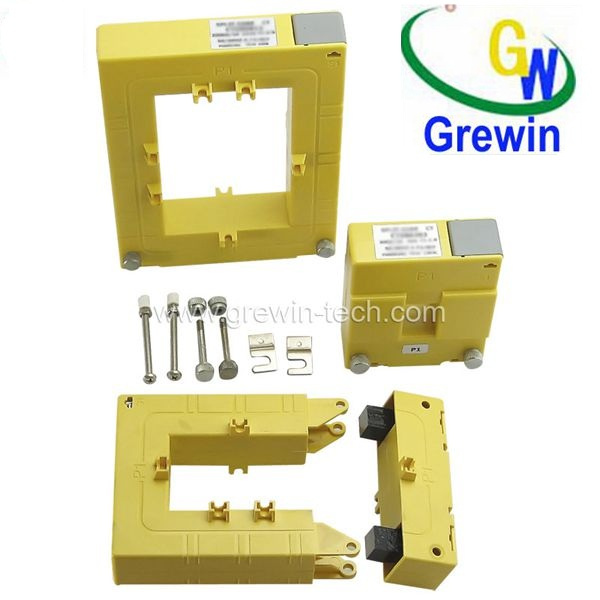

GWCTSB Series Split Core Current Transformer (Features) |
Low cost |
5 standard sizes |
Split core design, safer, easier installation, and portable |
GWCTSB Series Split Core Current Transformer (Applications) |
Current, power, energy, monitoring devices |
Relay protection devices |
Power Factor Correction devices |
Output secondary 5A split core current transformer :Model 1:
GWCTSB0203
Turn ratio: 100:5A 150:5A 200:5A 250:5A 300:5A 400:5A current transformer China
Model 2:
GWCTSB0508
Turn ratio:250:5A 300:5A 400:5A 500:5A 600:5A 750:5A 1000:5A split core transformer
Model 3:
GWCTSB0512
Turn Ratio:600:5A 750:5A 1000:5A 1250:5A 1500:5A 2000:5A 3000:5A current CT
Model 4:
GWCTSB0812
Turn ratio: 500:5A600:5A 750:5A 1000:5A 1250:5A 1500:5A split core China
Model 5:
GWCTSB0816
Turn Ratio:500:5A 600:5A 750:5A 1000:5A 1250:5A 1500:5A high quality split core current transformer with ROHS ,ETL approval.
Output secondary rated 1A split transformer :Model 1: GWCTSB0203
Turn ratio :100:1A 150:1A 200:1A 250:1A 300:1A 400:1A split core CT
Model 2: GWCTSB0508
Turn ratio: 200:1A 300:1A 400:1A 500:1A 600:1A 750:1A 1000:1A
Model 3: GWCTSB0512
Turn Ratio:500:1A 600:1A 750:1A 1000:1A 1250:1A 1500:1A 2000:1A 3000:1A
Model No.: GWCTSB0812
Model No.GWCTSB0816
Turn ratio: 600:1A 750:1A 1000:1A 1250:1A 1500:1A 2000:1A 2500:1A 3000:1A 4000:1A split transformer ETL made in ChinaContact Information:Alice
