300/300V PVC 17AWG Copper Flexible 4 Core 1mm Control Cable
Price: |
US $ 0.1-5/Meter |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
4 core 1mm control cable |
Product Name: |
4 Core 1mm Control Cable |
Rated Voltage: |
450/750V 0.6/1 Kv |
Conductor: |
Copper |
Insulation: |
PVC |
Sheath: |
PVC |
Core Color: |
Red Yellow Blue Green Black or as Your Requirement |
Shield: |
Copper Wire / Copper Tape / Steel Tape |
Packaging: |
Packed in Roll or Wooden Drum |
Shipping: |
3-10 Working Days |
MOQ: |
100 Meter |
Voltage: |
Low and Medium Voltage Cable |
Current: |
DC & AC |
Insulation Material: |
PVC |
Certification: |
VDE |
Application: |
Instrument |
Model: |
Various Control Cable |
Brand: |
Chang Qing Teng |
Product Description

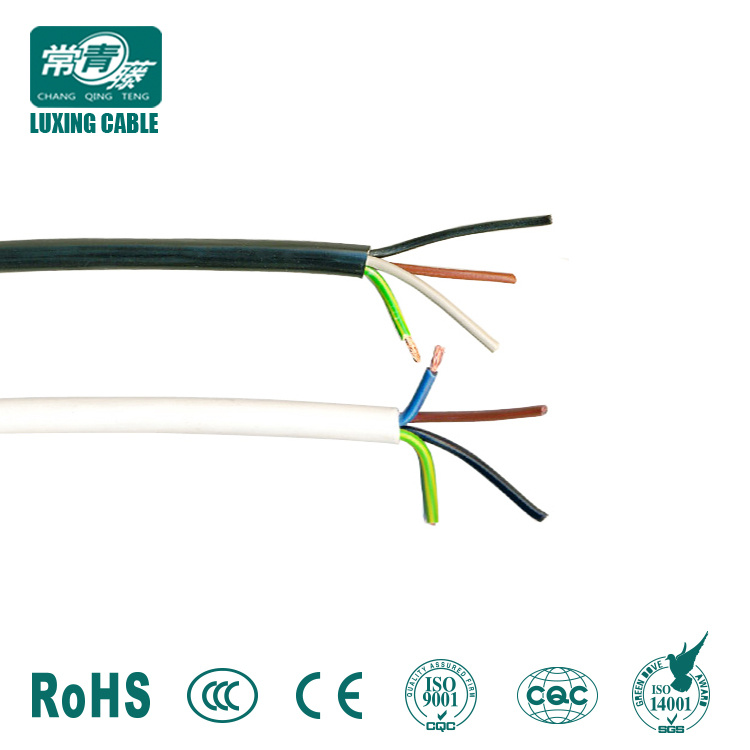

ITEM NAME : 300/300v PVC 17awg Copper Flexible 4 Core 1mm Control Cable
Specification
Description | 4 core 1mm control cable |
Rated voltage | 300/300V |
Cross section area | 4x1mm2 |
Material of conductor | copper or as your request |
Insulator and Jacket material | PVC |
core of conductor | 4 |
Packing | 100M/roll, or as your request! |
More specification for reference
Nominal cross-section mm2 | conductor struction mm | Calculation Outer Diameter mm | Product approximate Weight kg/100m |
4x0.12 | 7x0.15 | 3.8 | 2 |
4x0.2 | 12x0.15 | 4.2 | 2.6 |
4x0.3 | 16x0.15 | 4.8 | 3.4 |
4x0.5 | 16x0.2 | 6.2 | 5.6 |
4x0.75 | 24x0.2 | 6.9 | 7.1 |
4x1 | 32x0.2 | 8 | 9.8 |
4x1.5 | 48x0.2 | 9 | 12.1 |
4x2.5(3+1) | 49x0.25 | 11 | 19.6 |
4x4(3+1) | 56x0.3 | 12.5 | 25.1 |
4x6(3+1) | 84x0.3 | 14.8 | 35.3 |
Note:
1. Customized cables are acceptable,
2. Bare copper or CCA or Tinned copper conductor negoctiable,
3. Special requirement are available, like ZR, NH, WD, Anti-sour or Anti-Oil cable,
4. RVS series electric wire is suitable for household applaince, lightings, mechanic equipments etc.
Detailed Models :
Model | Description | Application |
KVV | copper conductor, PVC insulated, PVC sheathed, control cable | Suitable for being laid indoors, in cable trench, pipelines or other specific occasions. |
KVVP | copper conductor, PVC insulated, PVC sheathed, braided, shielded, control cable | Suitable for being laid indoors, in cable trench, pipelines or other specific occasions that demands shielding. |
KVVP2 | copper conductor, PVC insulated, PVC sheathed, copper-tape shielded, control cable |
KVV22 | copper conductor, PVC insulated, PVC sheathed, steel-tape armored, control cable | Suitable for being laid indoors, in cable trench and pipelines, directly burial or other specific occasions with a relatively large capacity for mechanical stretching force. |
KVV32 | copper conductor, PVC insulated, PVC sheathed, thin steel wire-armored, control cable | Suitable for being laid indoors, in cable trench, pipelines, silo or other specific occasions that demands shielding. |
KVVR | copper conductor, PVC insulated, PVC sheathed, flexible, control cable | Suitable for being laid indoors and places that demands moving cables with flexibility. |
KVVRP | copper conductor, PVC insulated, PVC sheathed, braided shielded, flexible, control cable | Suitable for being laid indoors and shielded places that demands moving cables with flexibility. |
Techinical Parameter
Nom. Cross section (mm) | Conductor construction | DCresistance of conductor at 20oC(min.) Ω/km | Nom.wall thickness of insulaion mm | Insulation resistance of 70oC (MΩ/km)
|
Type | No./Nom. Dia of conductor mm
| PVC | PE | XLPE |
1.0 | 1 | 1/1.13 | 18.1 | 0.6 | 0.7 | 0.7 | 0.011 |
1.0 | 2 | 7/0.43 | 18.1 | 0.6 | 0.7 | 0.7 | 0.013 |
1.5 | 1 | 1/1.38 | 12.1 | 0.7 | 0.7 | 0.7 | 0.011 |
1.5 | 5 | 30/0.25 | 13.3 | 0.7 | 0.7 | 0.7 | 0.010 |
2.5 | 1 | 1/1.78 | 7.41 | 0.8 | 0.7 | 0.7 | 0.010 |
2.5 | 2 | 7/0.68 | 7.41 | 0.8 | 0.7 | 0.7 | 0.009 |
4 | 1 | 1/2.25 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0085 |
4 | 2 | 7/0.85 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0077 |
6 | 1 | 1/2.76 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0070 |
6 | 2 | 7/1.04 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0065 |
10 | 2 | 7/1.35 | 1.83 | 1.0 | 0.7 | 0.7 | 0.0065 |

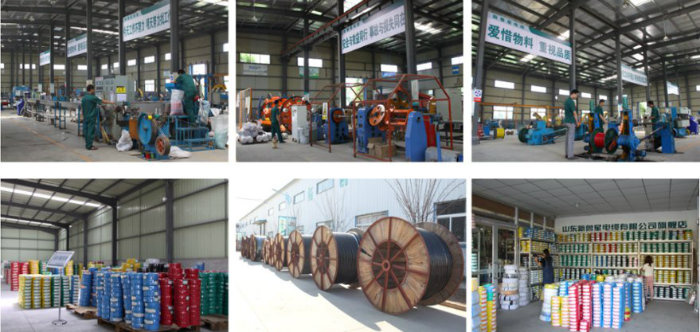

Company Information Our company-Shandong New Luxing Cable Co.,Ltd establish in the year of 1999 , so until now we have been in this line for more than 18 years .at present ,we have 150 empoyees in total , and annual sales volume is about 8 billion .our headquarter in Jinan City , the capital in shandong province . and our factory located in Dezhou City , Covering an area of more than 60 acres .

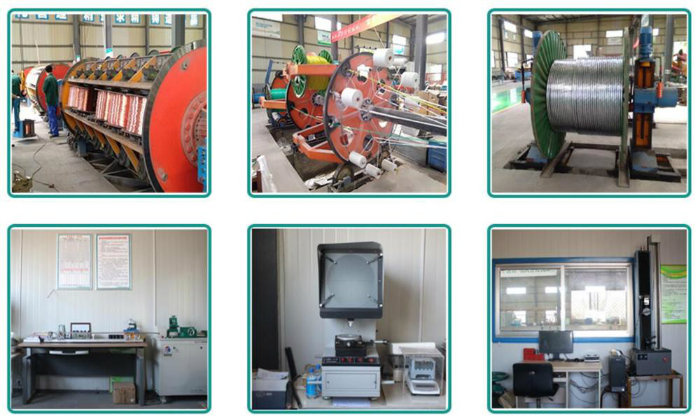

Strict Quality Test ( Raw Material & Finished Cable )
Certificates ( ISO CE CCC ROHS GB/T )
Type Test Report
We Mainly Produce the Following Products 300/500V 450/750V electrical wire | AAC conductor |
600/1000V PVC insulated cable | AAAC conductor |
600/1000V XLPE insulated cable | ACSR conductor |
1.8/3KV to 26/35KV power cable | OPGW |
Armored underground cable | ABC cable |
Control cable and instrumentation cables | Rubber cable |
More Hot Sale Products for you to choose
![](/proimages/44f3j00HaAtsEgZhwrq/300-300v-pvc-17awg-copper-flexible-4-core-1mm-control-cable.jpg)
Contact Information
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
